APOLLO XS

RETRO STYLE
EFFECT MACHINE
  • Onstage eye-candy effect
  • Warm white center LED
  • RGB outer ring
  • PowerCON True1 in and out
Categories: ,

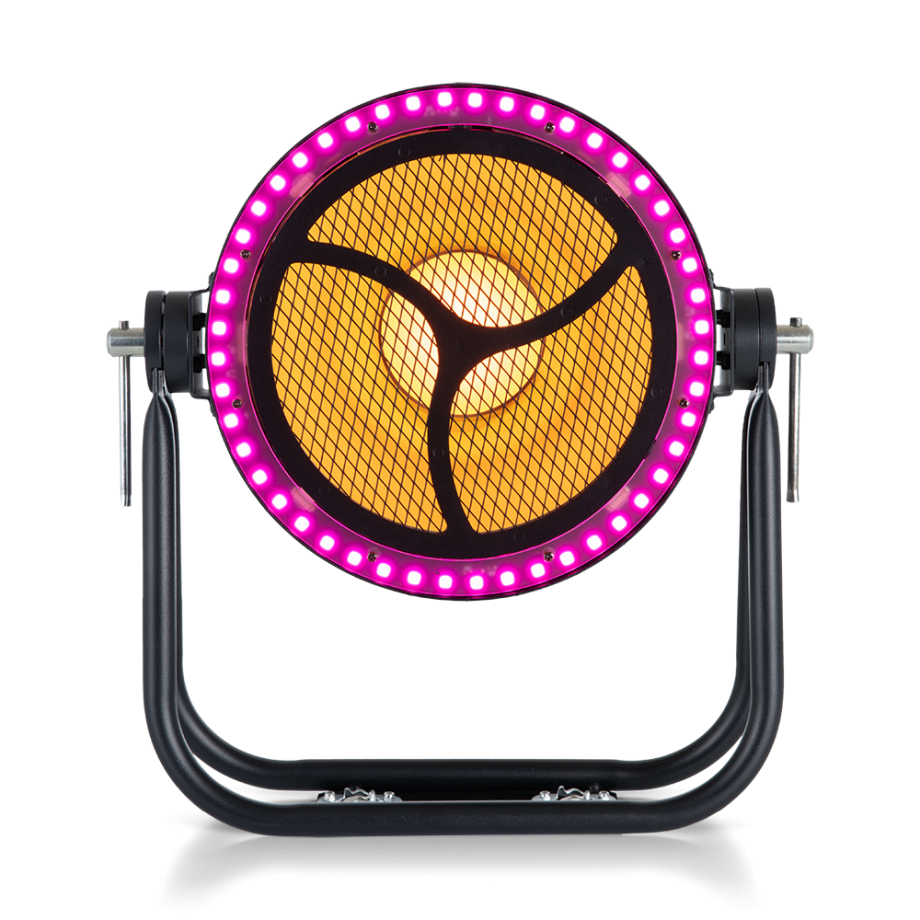

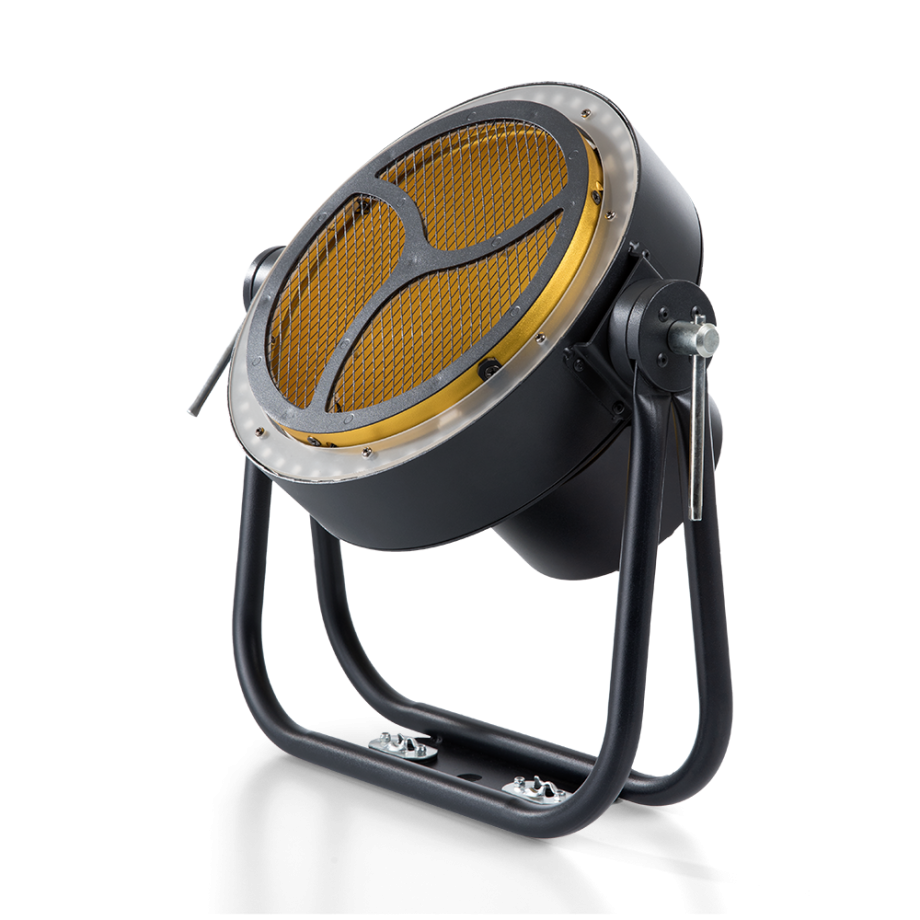

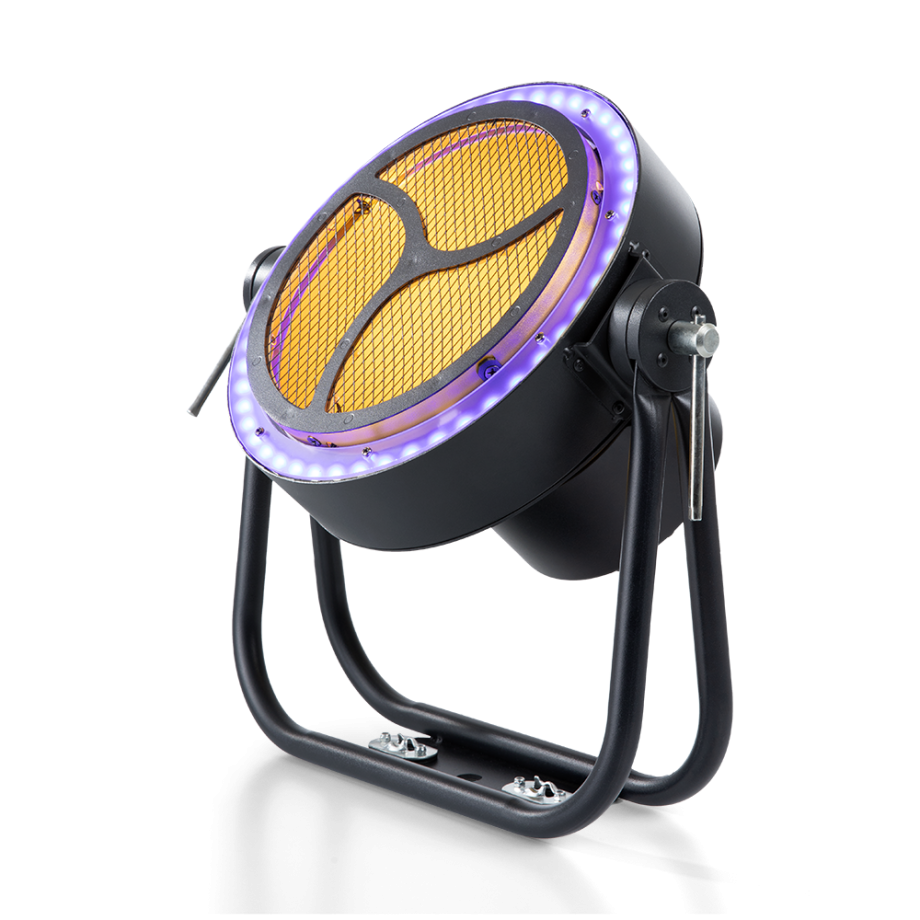

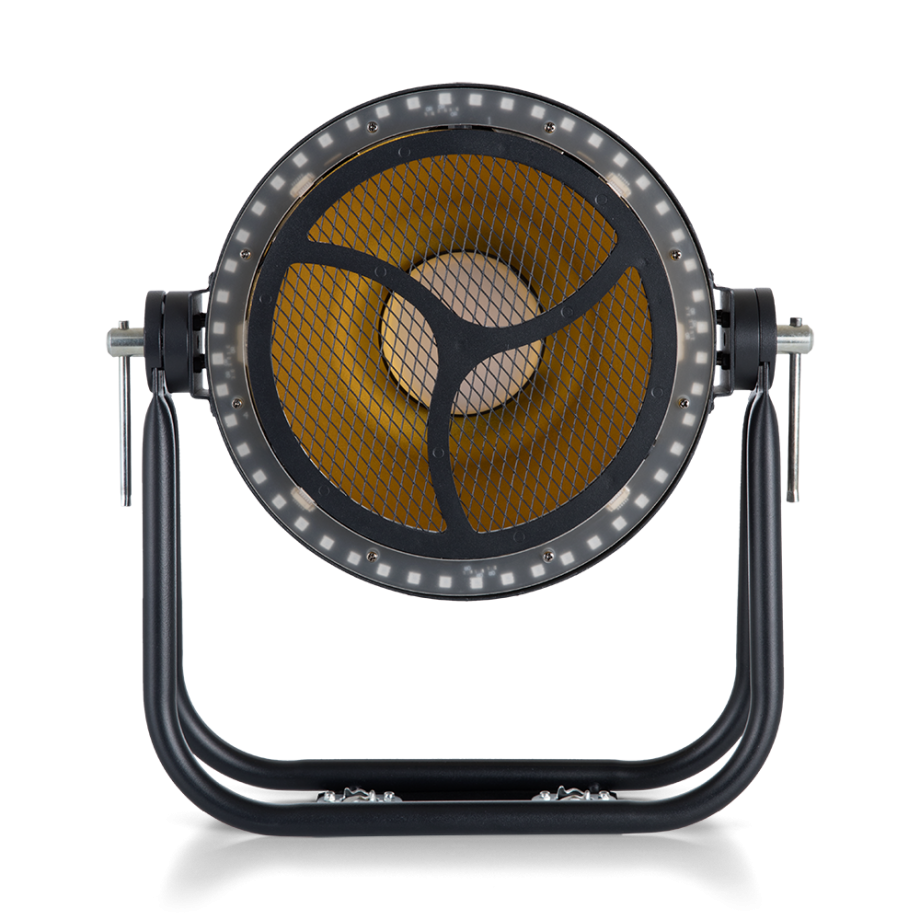

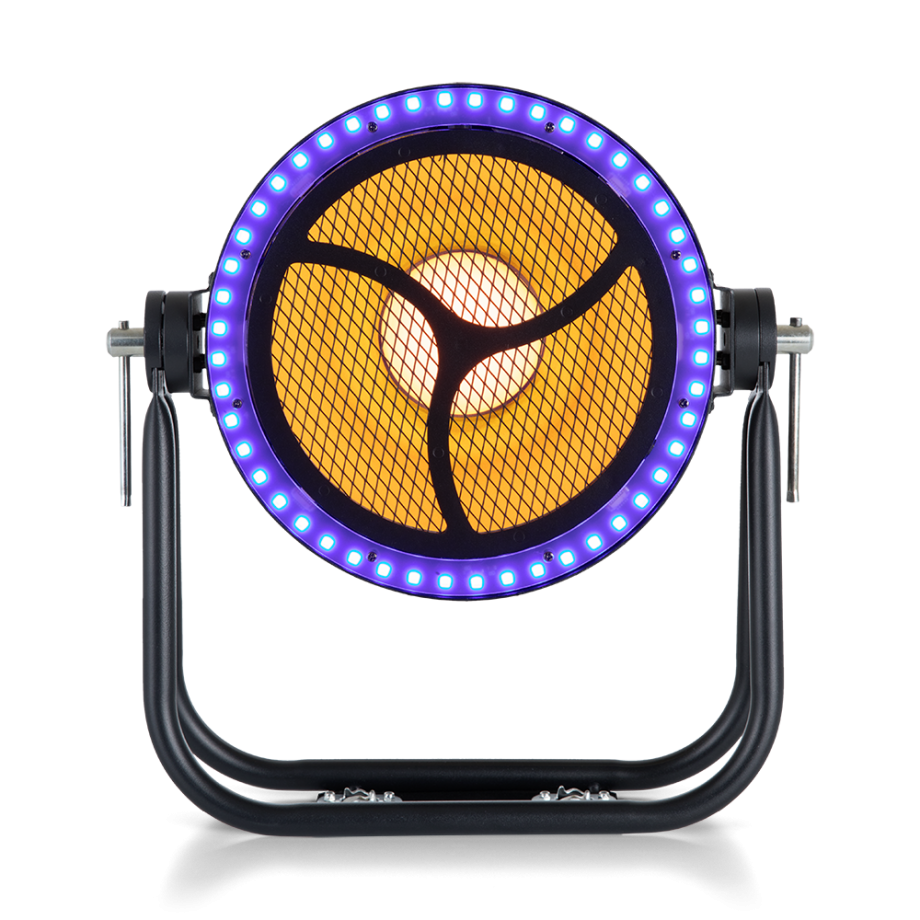

The CLF Apollo XS is a retro style ‘on stage eye-candy’ effect with various, separately controllable, LED segments. A powerful warm white / amber LED center effect is surrounded by an RGB ring.

Combine a vintage tungsten look with modern, colourful, LED animation effects. Pre-programmed effects make it easy to create impressive and attractive effects, but different DMX modes allows precise control of all different LED segments for extensive control.

Power
Input voltage & rate 100-240V, 50/60Hz
Standby power 6W
Nominal total power consumption  (at nominal voltage 230V) 100W
Typical current (at nominal voltage 230V) 0,5A
Power plug type PowerCON TRUE 1
Configuration
LED color RGB and Warm White / Amber
LED CRI level Center LED’s Warm White + Amber: 75
Quantity of LED 141
Dimming frequency 8000Hz
Dimmer resolution 16 bit
Heat management
Cooling type Temperature controlled fan
MAX ambient temp (Ta max) 40°C
MIN ambient temp  (Ta min) -10°C
MAX housing temp. (ta=25°C) 55°C
Menu
Auto program Yes
Strobe speed Yes
Random strobe Yes
Control
Control protocol USITT DMX512/1990
DMX channel range 2/7/10/16
RDM Yes
RDM compliance
WDMX No
ACN No

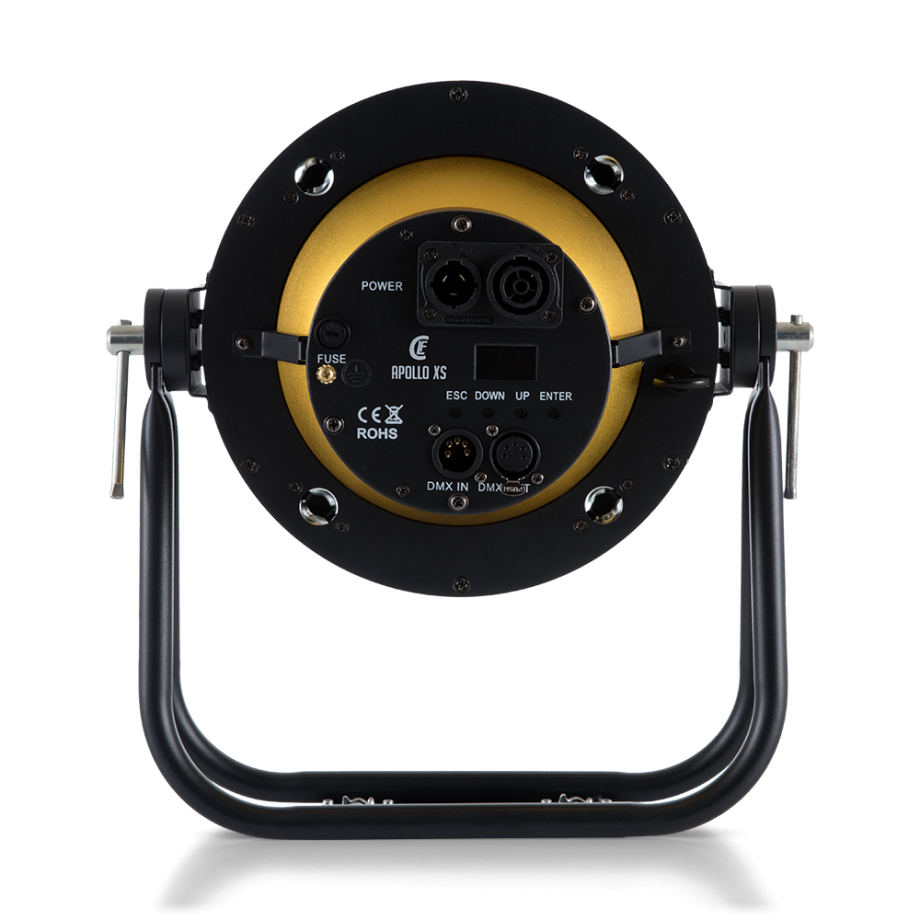

DMX input connection 5 pin XLR
Data input  (artnet, SACN) No
Hardware
Interface LCD display
Software upload method
Installation
IP rating IP20
Housing
Safety attachment point Yes
Physical
Net product weight 3,35 KG
Machine dimensions – length 309mm
Machine dimensions – depth 206mm
Machine dimensions – height 360mm
Accessories
Included items Power and signal cable, manual
Approvals
Approved certifications CE/RoHS
