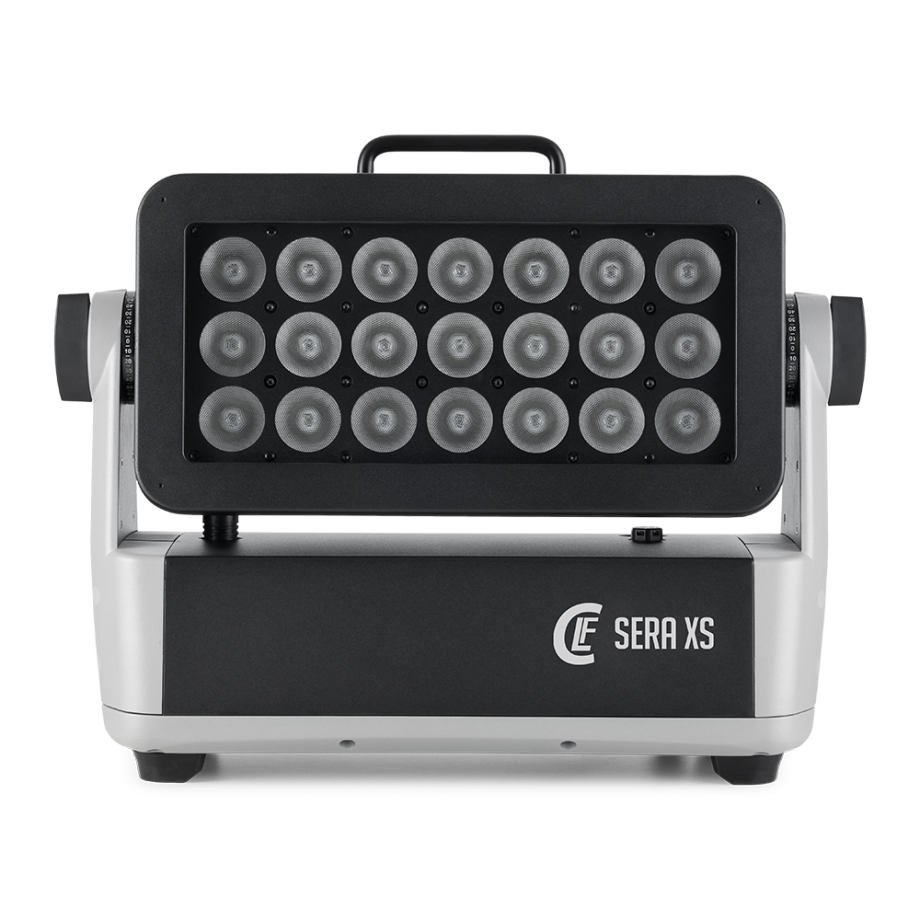

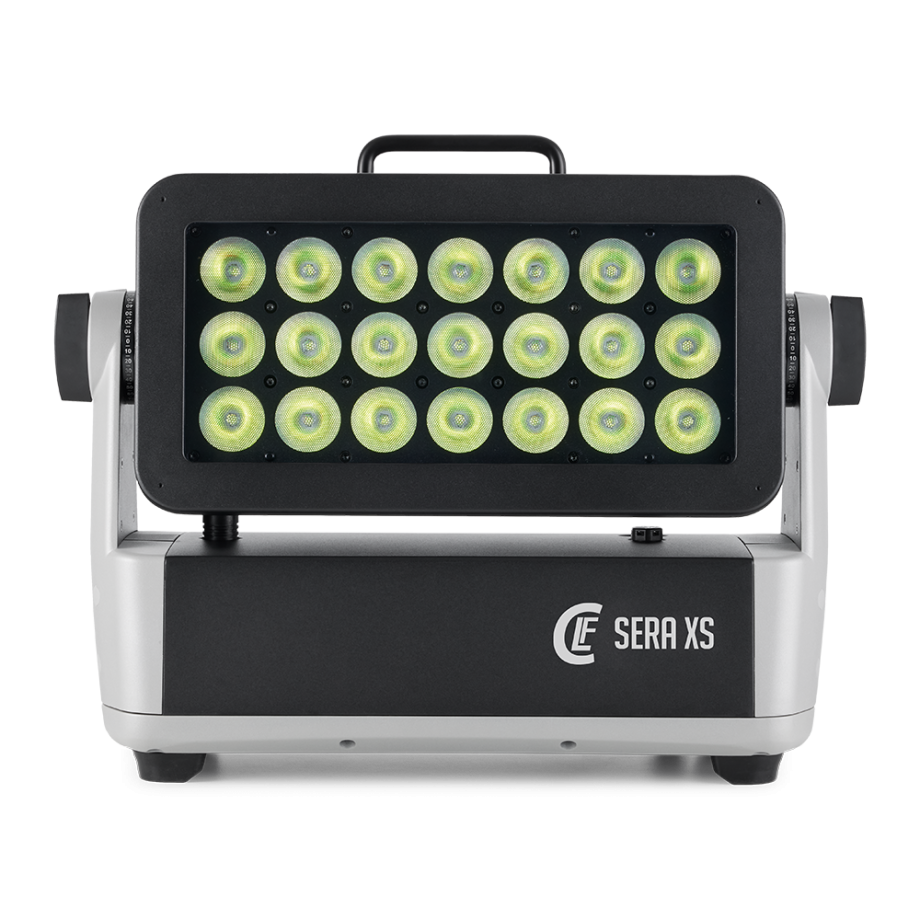

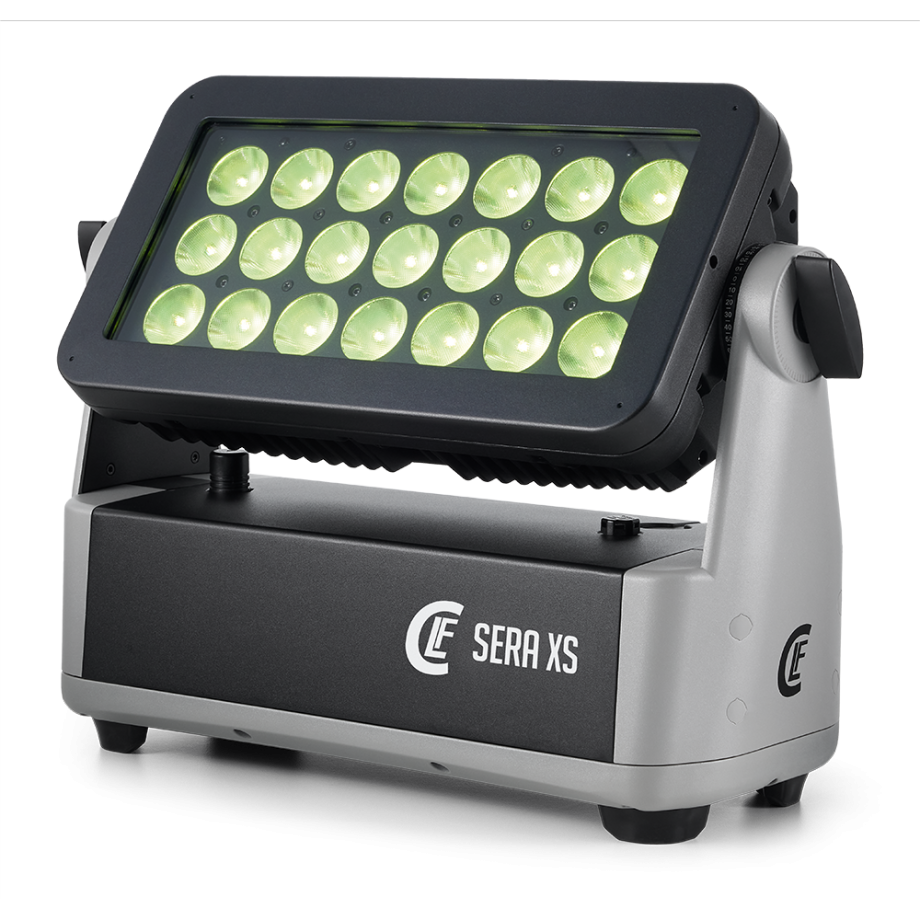

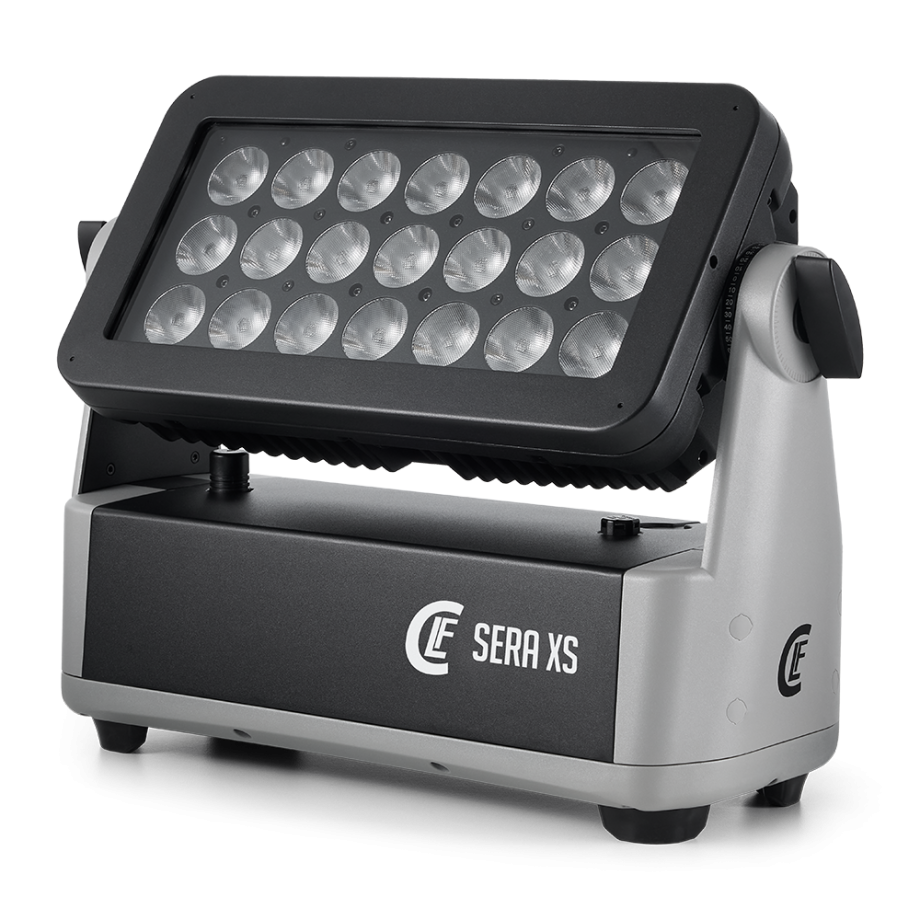

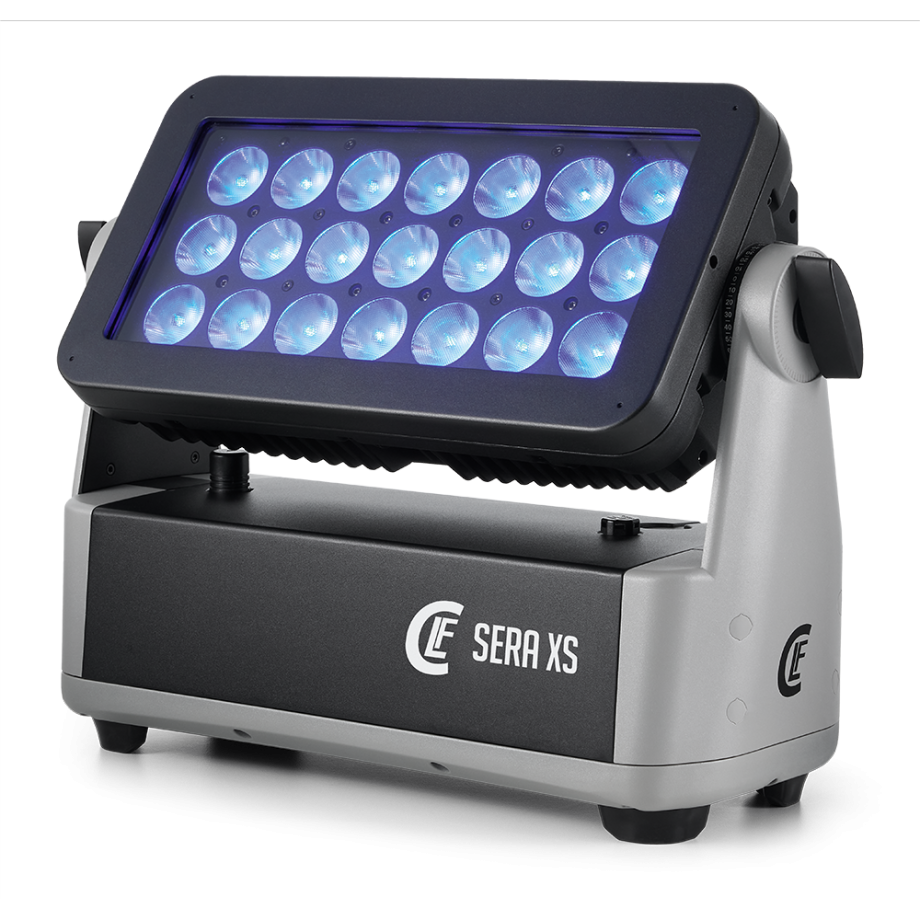

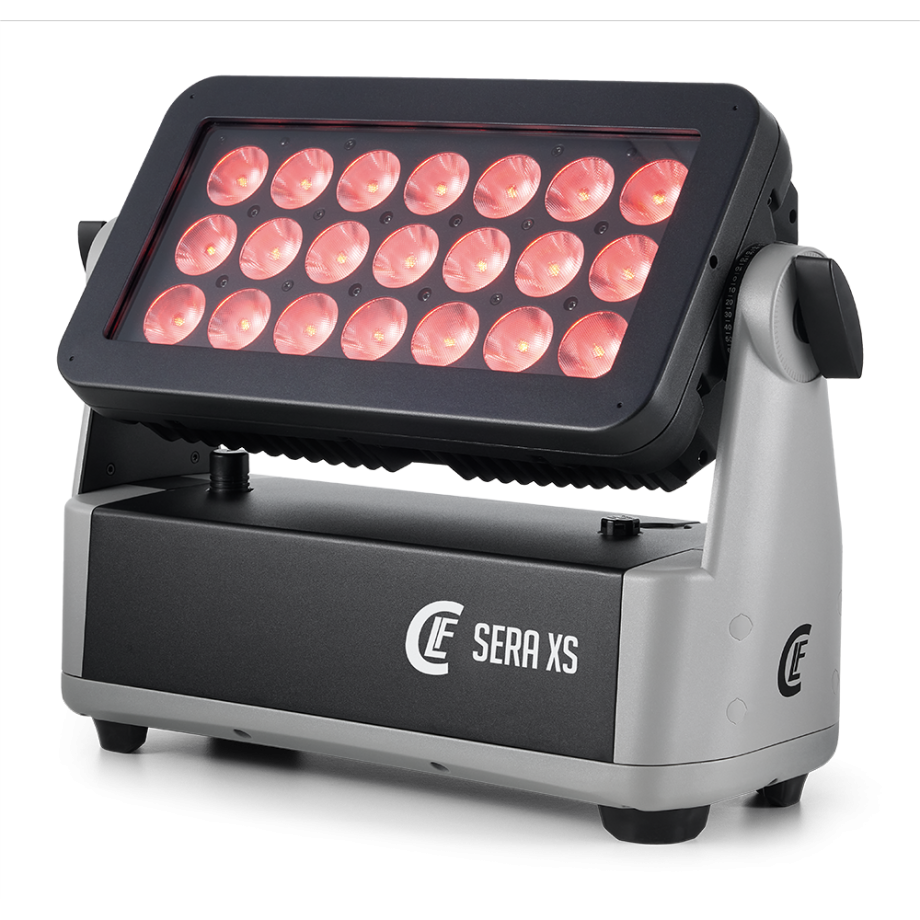

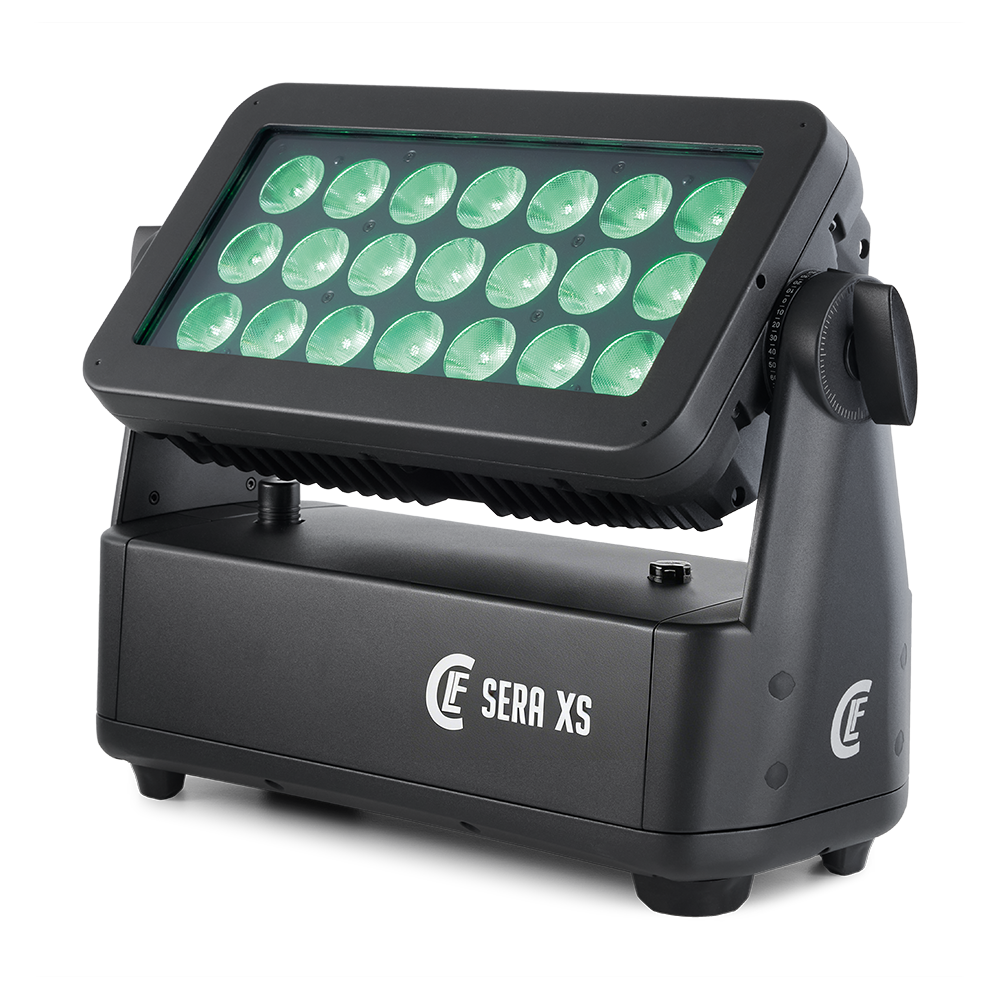

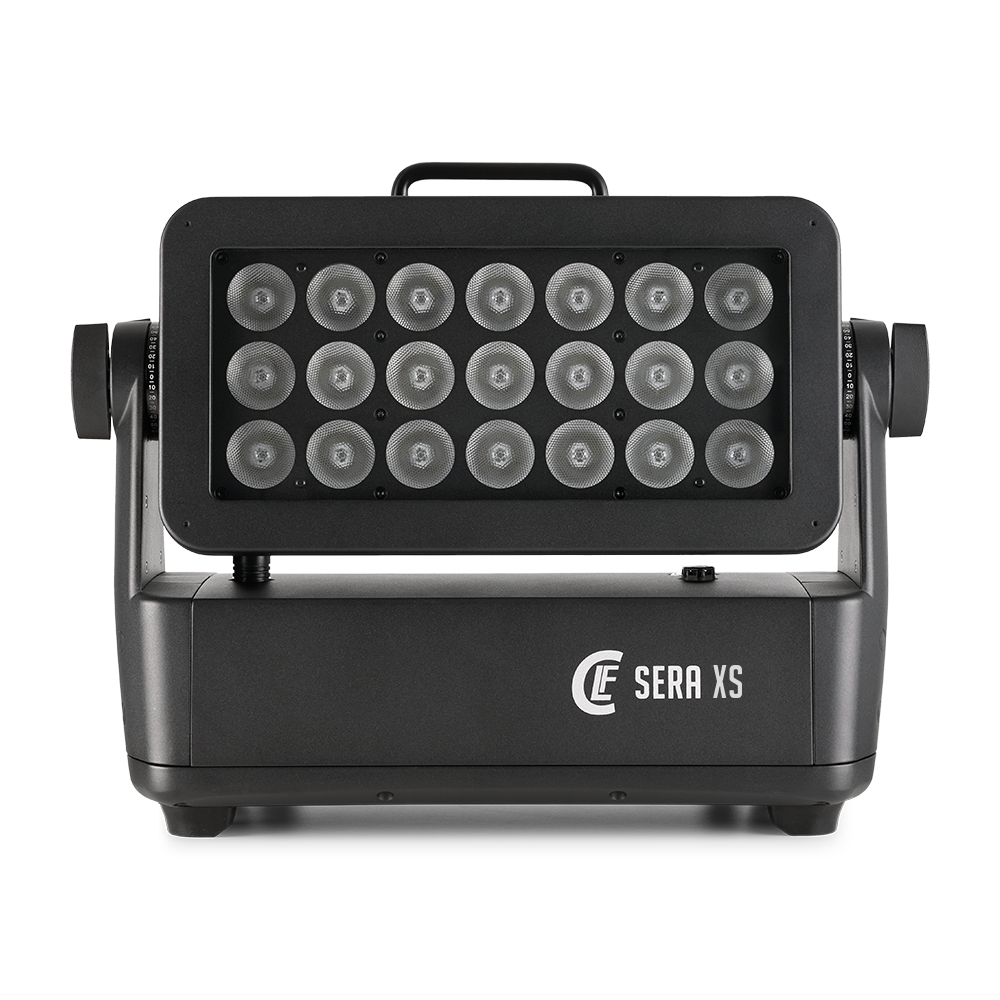

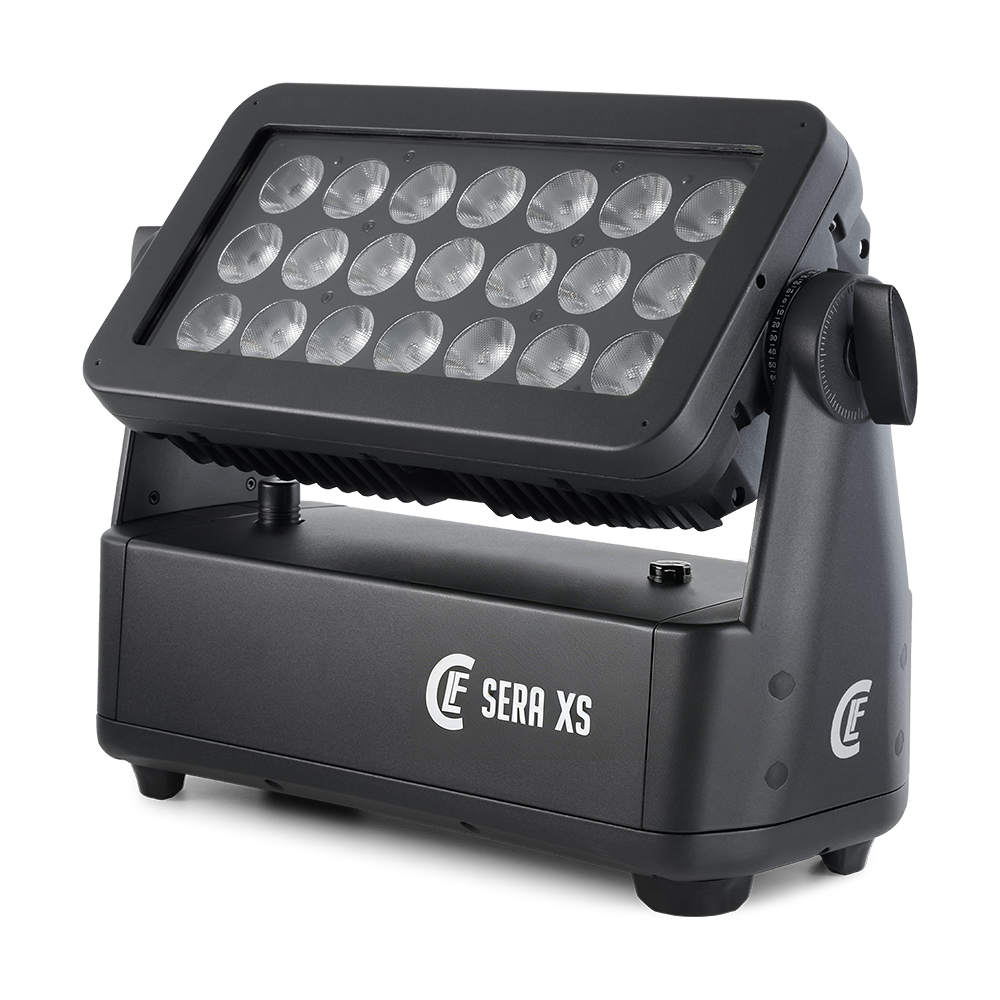

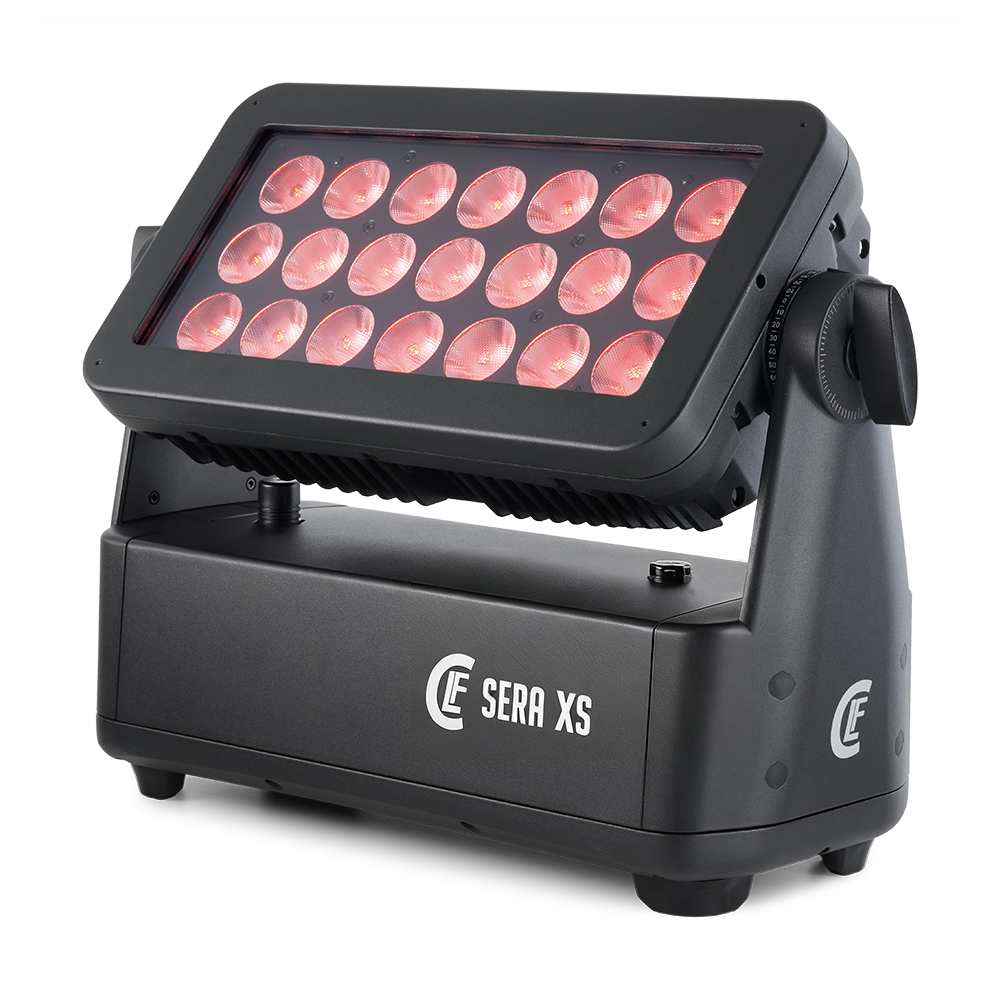

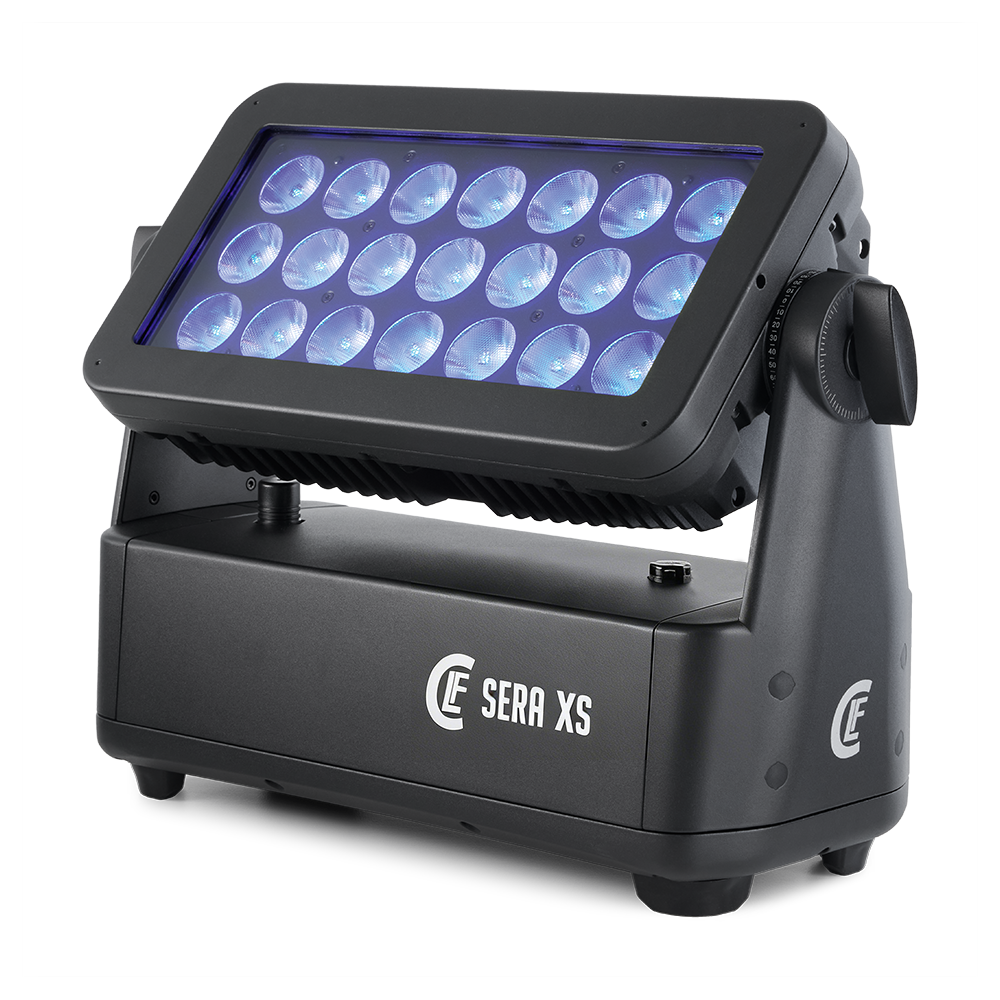

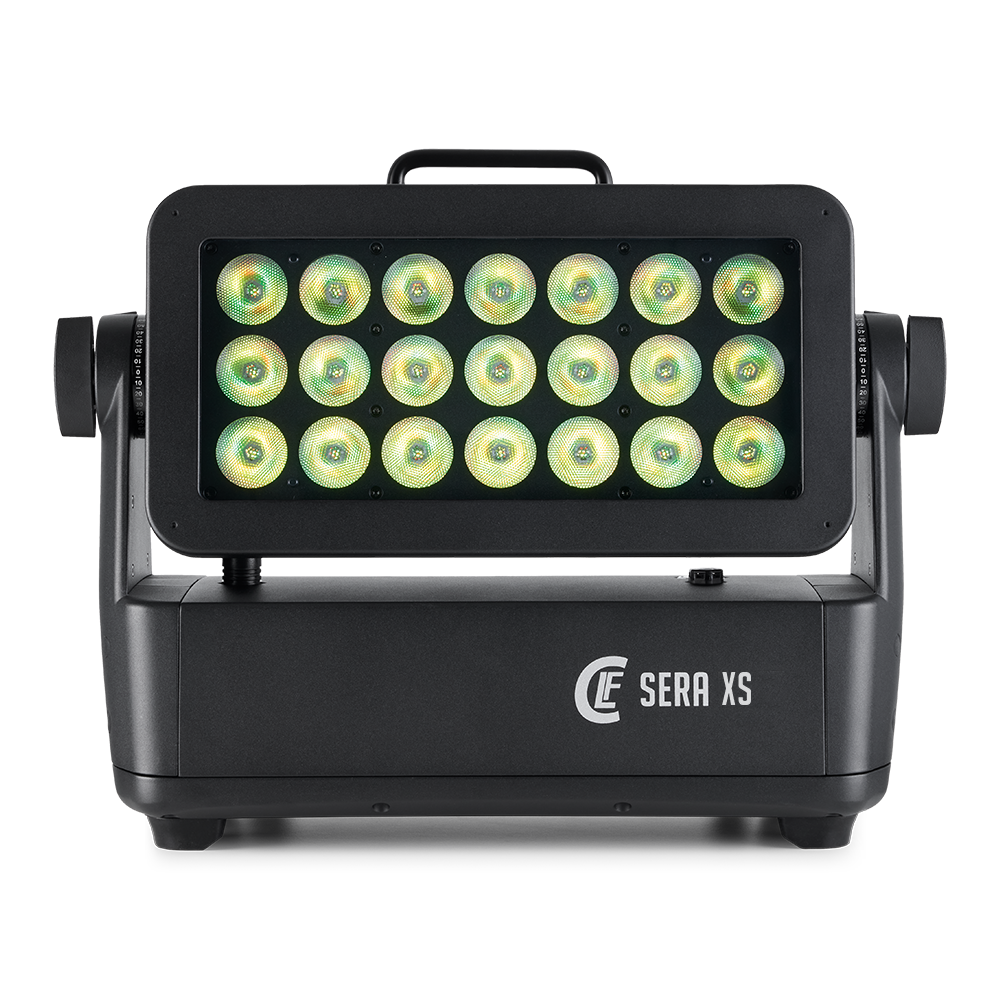

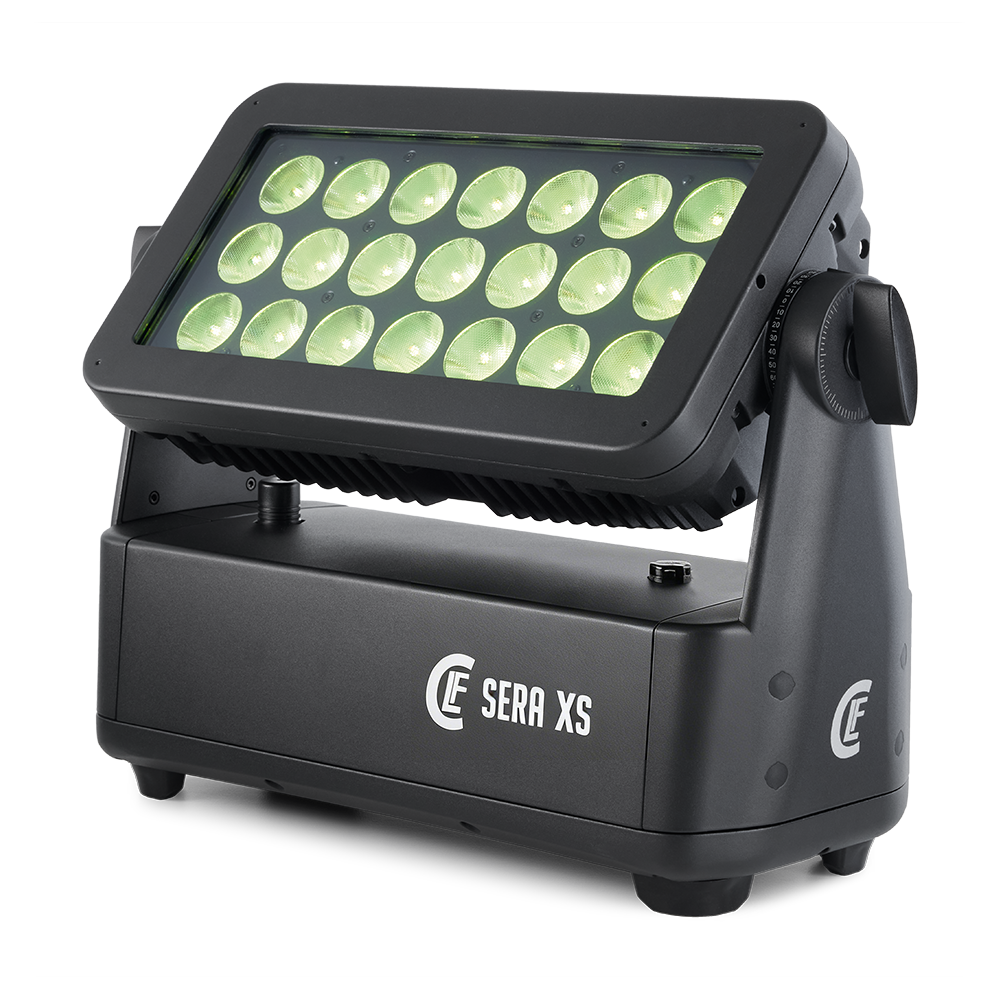

The CLF Sera XS is an extremely powerful LED wash fixture which is perfect for illuminating large surfaces both in- and outdoor. Extreme brightness and an extraordinary even projection make the Sera XS a true LED alternative for traditional wash lights. The array of 21 calibrated high power RGBL LEDs is divided in three individually controllable horizontal segments.

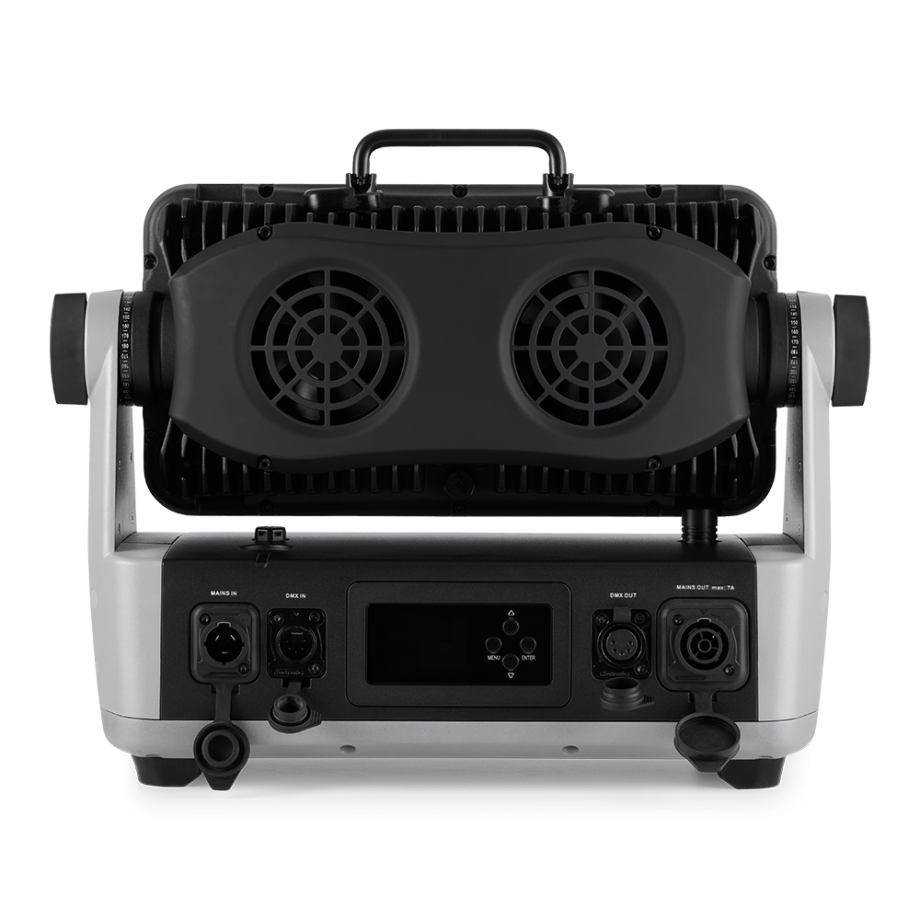

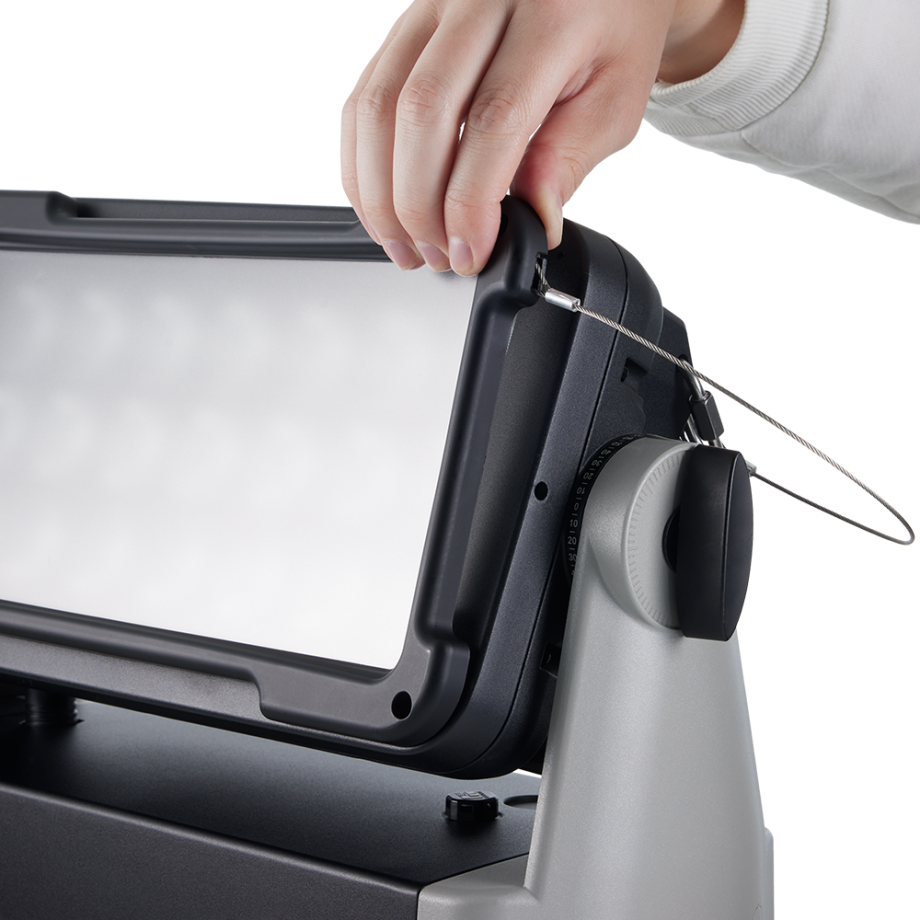

The Sera is equipped with a punchy 17.5° beam angle, which can be easily adapted to other beam angles, even elliptical, by using the Magnetic Smart Filter System. The Sera XS comes with an intelligent silent cooling system which provides extensive fan control and is especially useful for TV and theatre use. All in all, the Sera XS is a versatile LED wash that can be used for many applications.

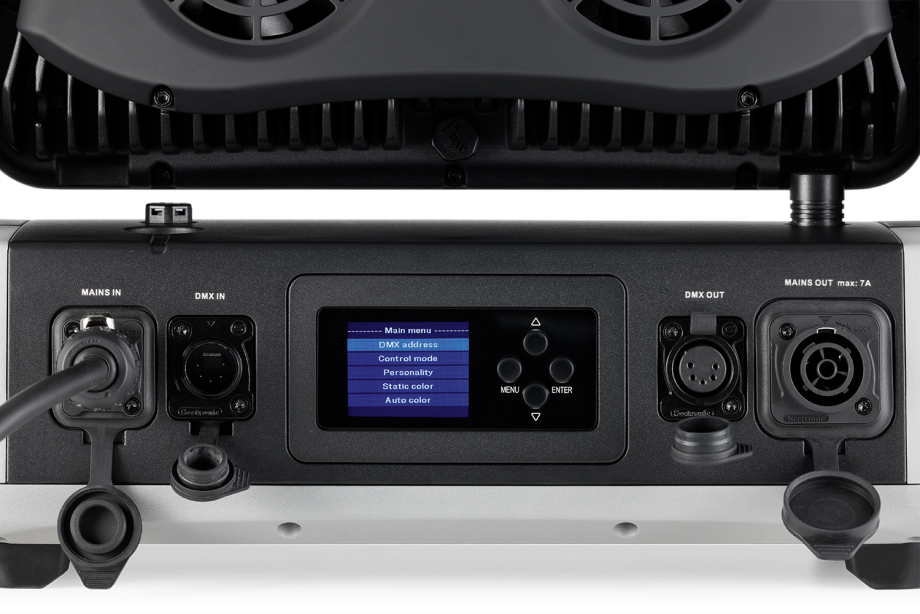

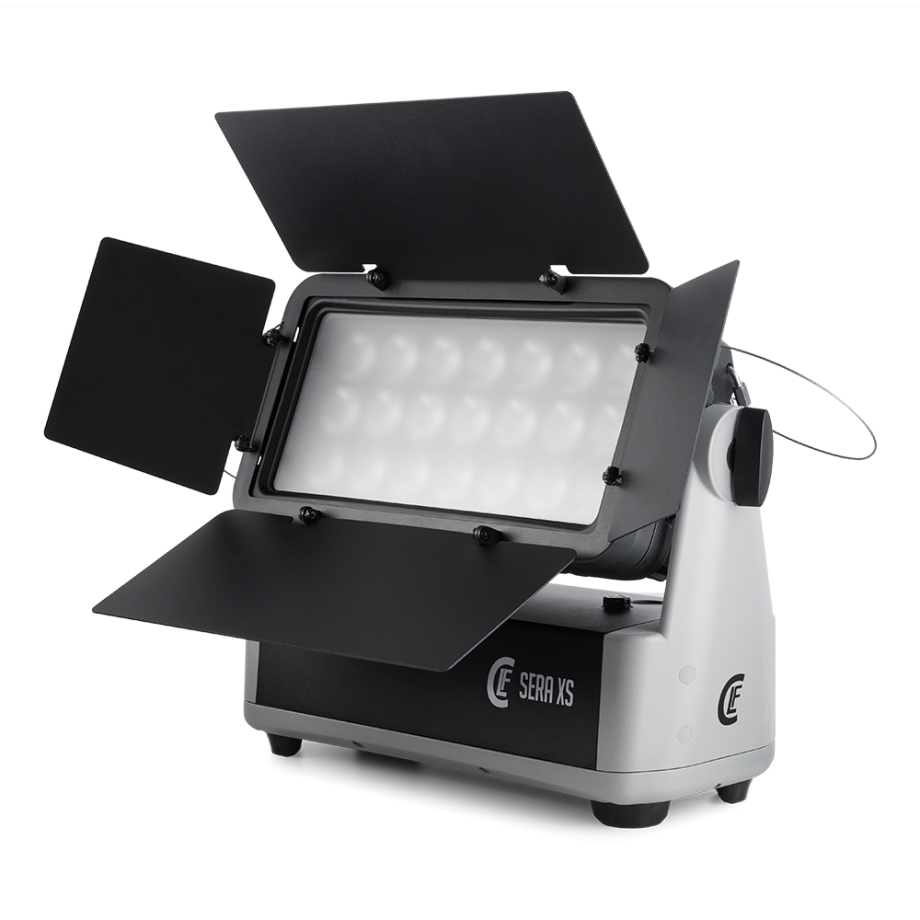

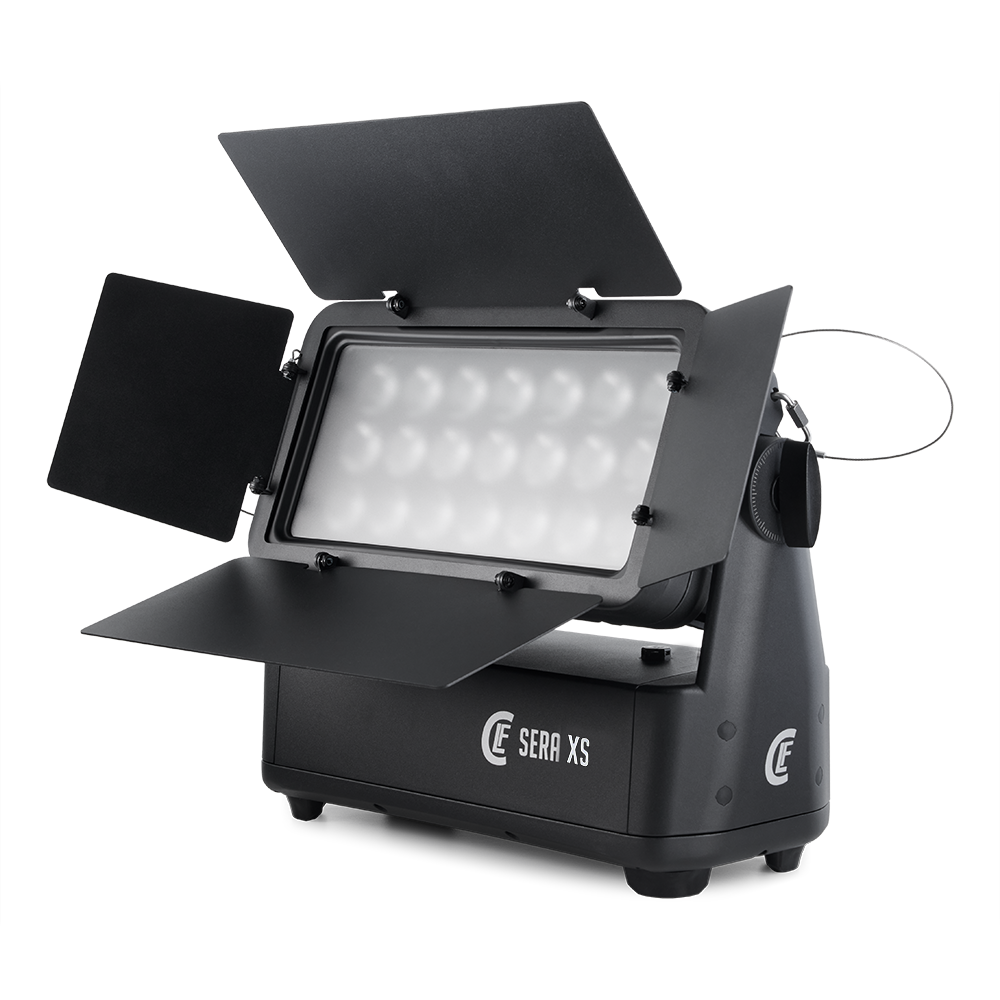

The CLF Sera XS comes optional with a filterframe, barndoor and a Wireless Solution/Lumen W-DMX receiver on board, but can also be connected with 5-pin XLR connectors and many sufisticated stand alone functions. Power is connected through a PowerCON TRUE1 connector.
|LED configuration||21x RGBL high power calibrated LEDs|
|DMX channels||2 / 3 / 4 / 4 / 6 / 8 / 10 / 12 / 13 / 29 CH|
|Beam angle||17.5° beam and 31.4° field angles|
|Power consumption||Max. 397 W|
|Power supply||AC 100 – 240 V, 50-60 Hz|
|Cooling||Smart controlled fans|
|Max ambient temp||TA max = 40°C|
|Min ambient temp||TA max = -20°C|
|DMX connection||W-DMX / DMX 5 pin (3 pin optional)|
|Dimensions||418 x 157 x 301 (lxwxh)|
|Weight (without accessories)||9.1 kg|
|Certification||CE, ROHS, RED, FCC, UKCA|
|Optional accessories||Omega bracket, magnetic smart filter system, barndoor, flightcase|
|Included items||Power cable, manual|
