• Adjustable beam angle,
    several lenses available (for example 36° and 54°)
  • Designed for multiple applications
  • Deep and saturated colors
  • Flicker free operation
  • Touring proof housing
  • Wireless DMX
  • IP65 rating
  • RDM ready

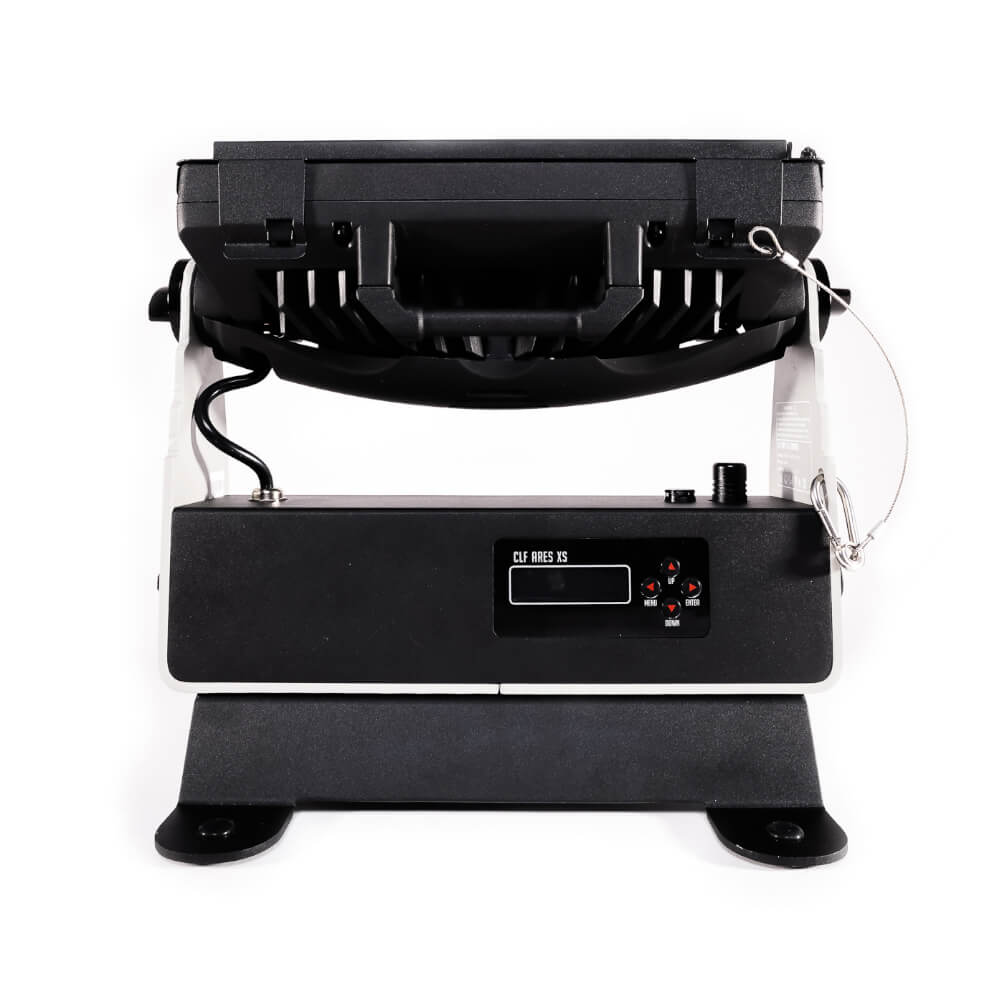

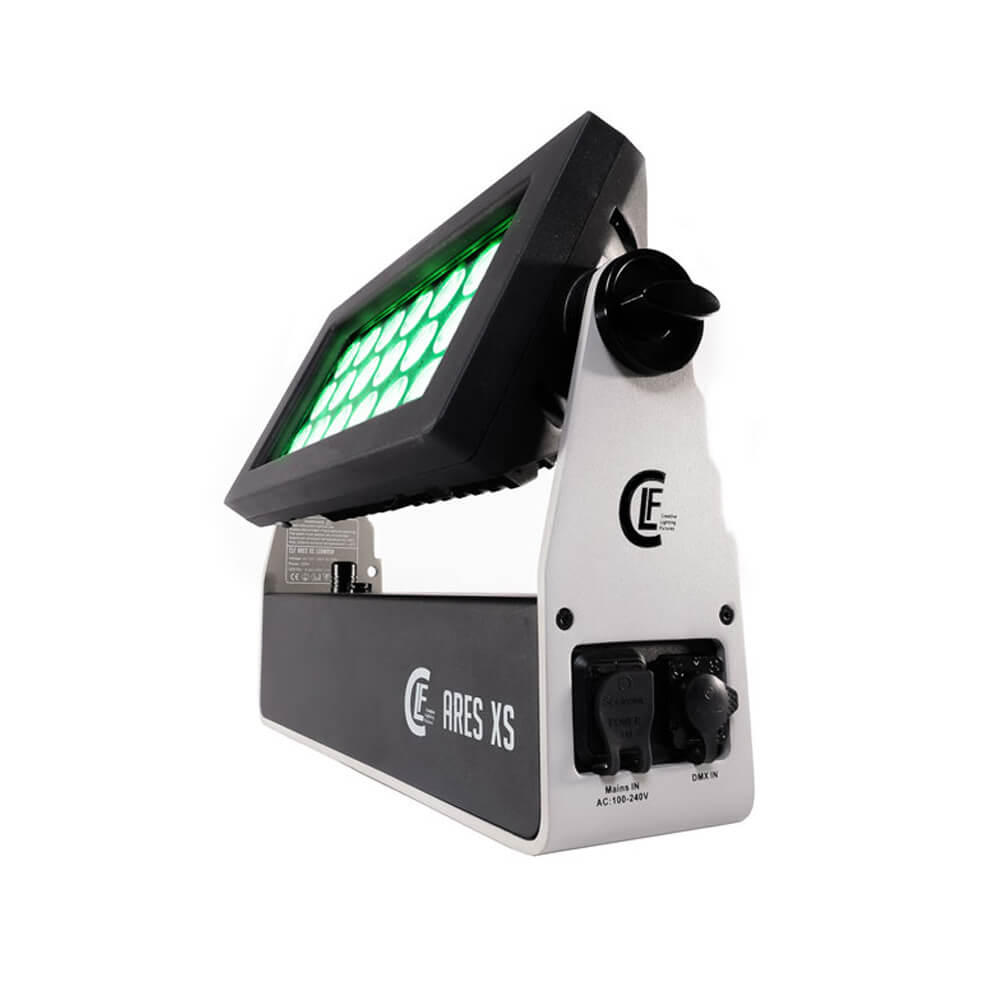

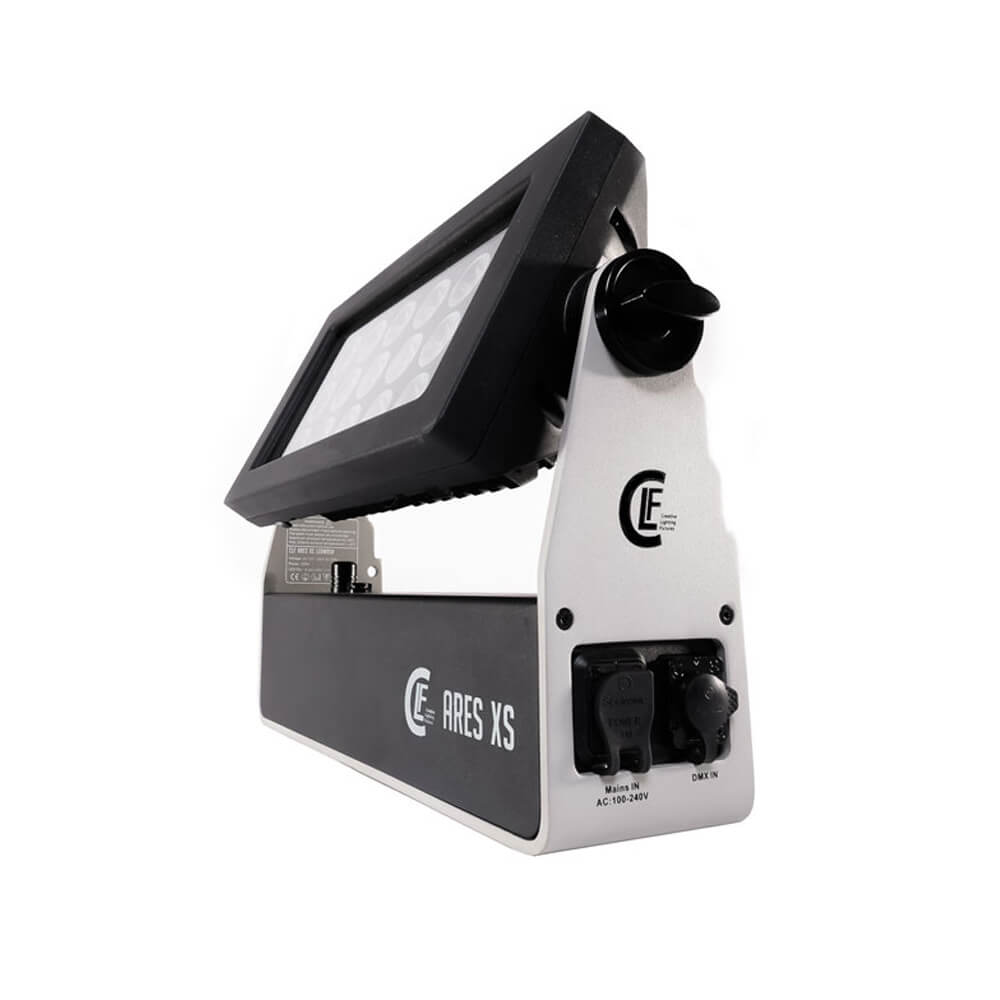

The Ares XS is the smaller brother of the Ares, which has been proven to be a lighting essential for many different purposes. The powerful LED wash fixture is perfect for illuminating large surfaces both in- and outdoor. Extreme brightness and an extraordinary even projection make the Ares XS a true LED alternative for traditional wash lights. An array of 18 calibrated high power RGBW LEDs is divided in three individually controllable horizontal segments.

The Ares XS is equipped with a punchy 21° beam angle, which can be easily adapted to other beam angles, even elliptical, by using the Smart Filter System® The intelligent cooling system makes sure that the Arex XS is ready for TV and theatre productions. All in all, the Ares is a versatile LED wash that can be used for many applications.

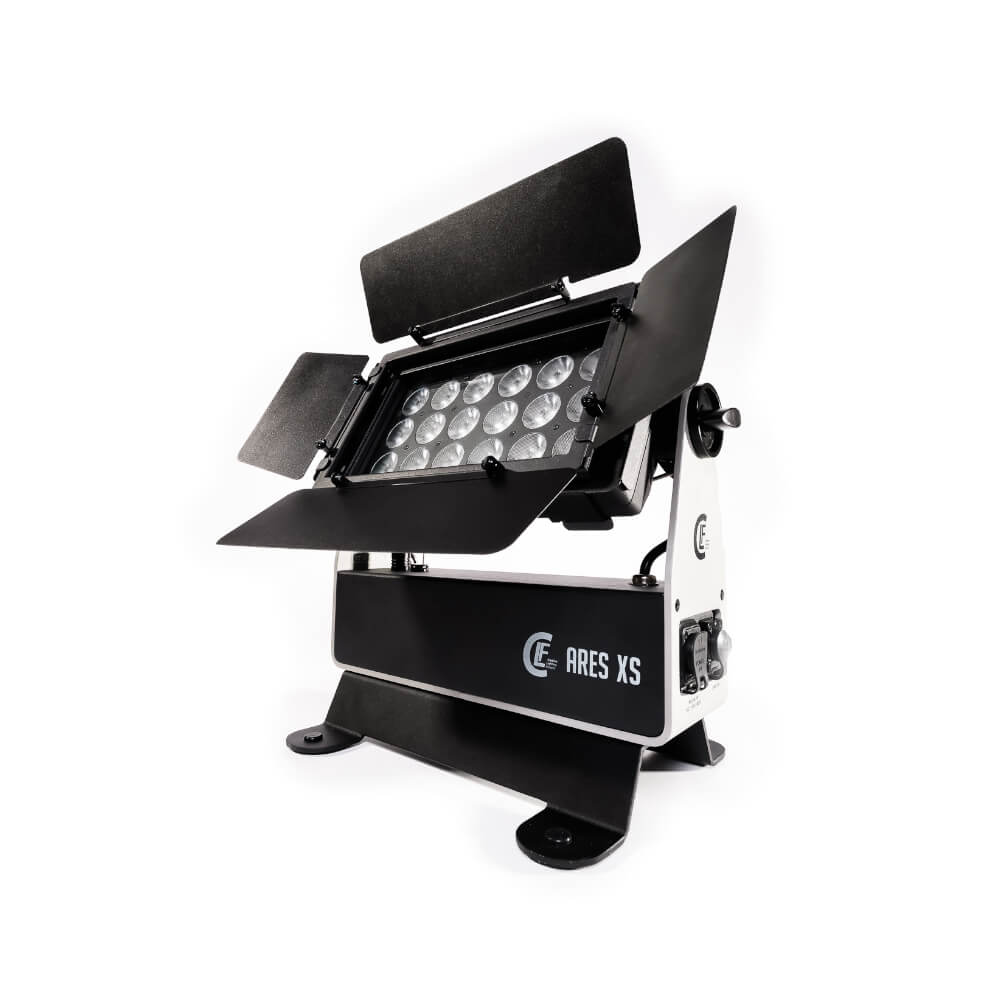

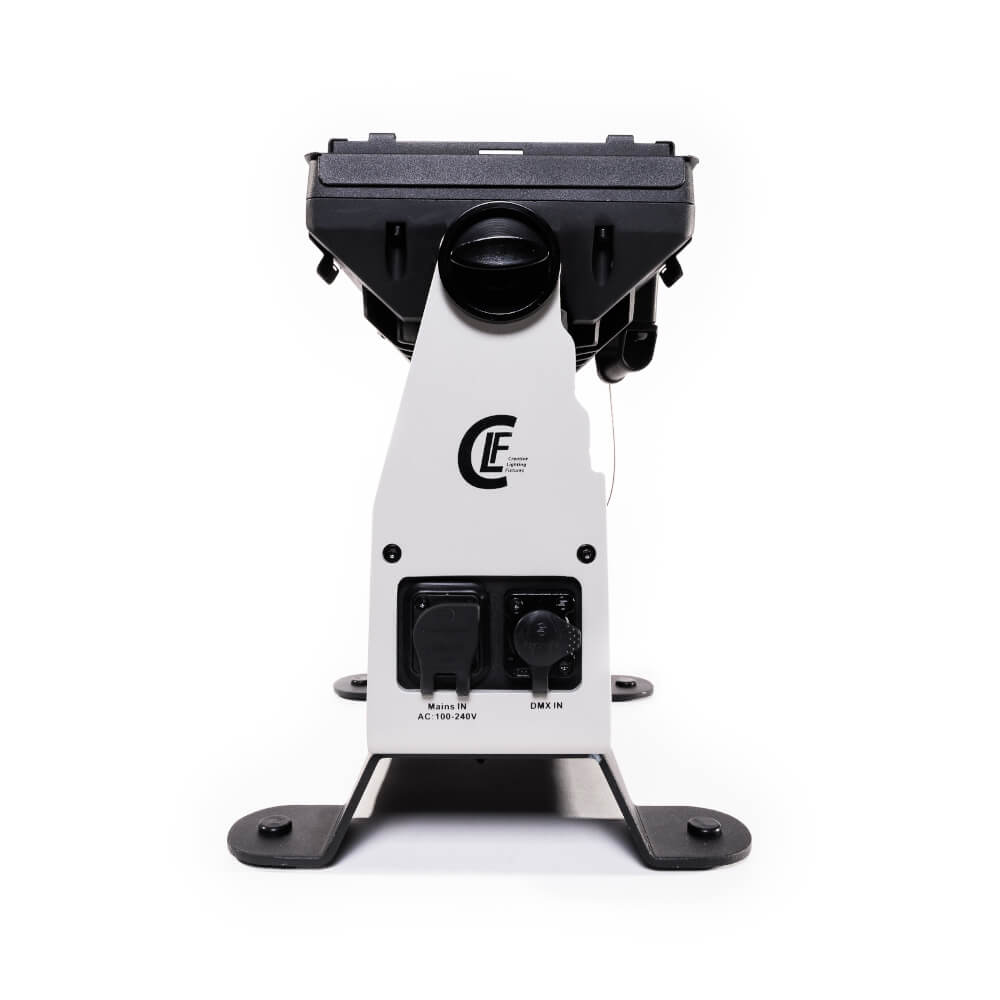

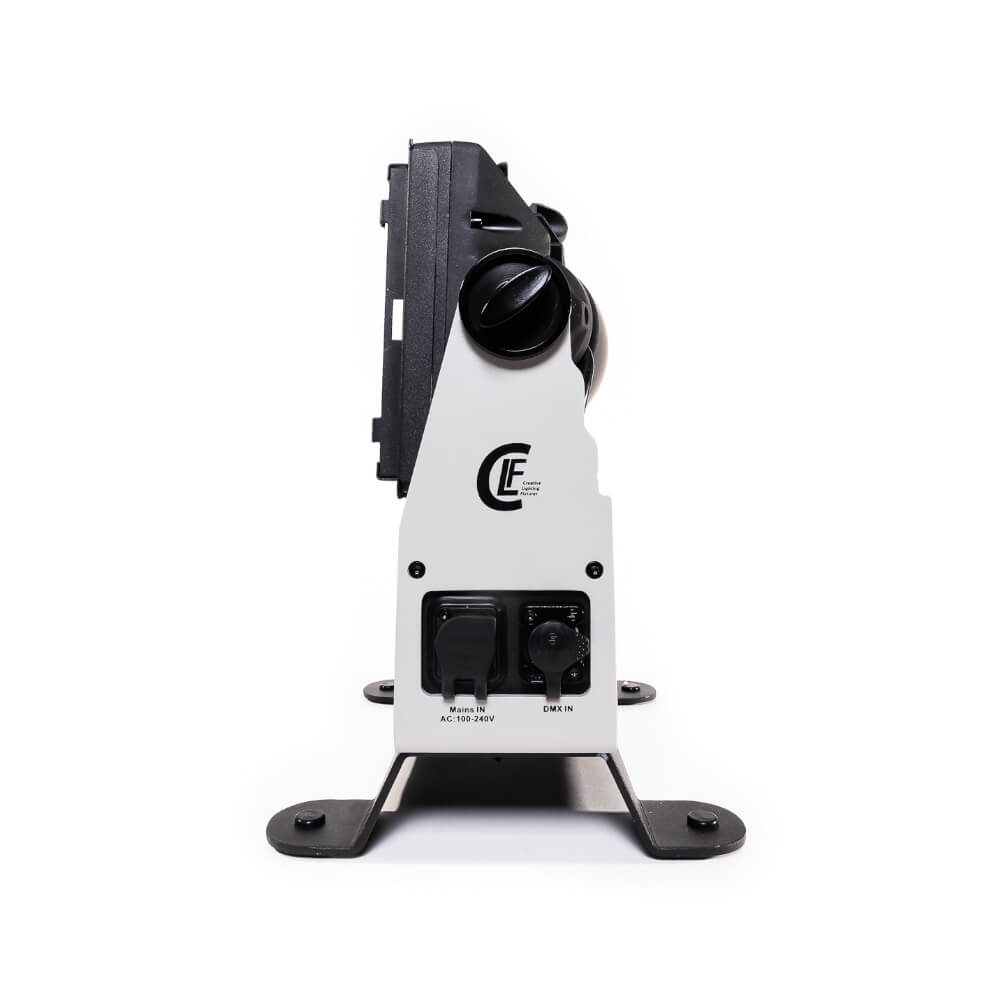

The fixture comes with a filterframe, barndoor and a Wireless Solution W-DMX™ receiver on board, but can also be connected with 5-pin XLR connectors. Power is connected through a PowerCON TRUE1 connector.

DMX channels 4, 9, 11, 12, 17, 23, 24
Beam angle 21° *
Power supply 100 – 240 VAC
Power consumption Max. 300 Watt
Power factor 120V (PF) 0,989
Power factor 240V (PF) 0,965
Cooling Intelligent cooling system
DMX connection 5p XLR in & out (3p Optional)
Dimensions 381 x 111 x 290 mm (LxWxH)
Dimensions (with stand) 381 x 233 x 336 mm (LxWxH)
Weight 8,7 Kg
Certification CE, RoHS
Item number 156225
Included items Cable, barndoor, filter frame & stand
IP rating IP65

* adjustable with Smart Filter System, options:
ARES FILTER (#156284) :  36,6°
ARES FILTER (#156285):   54,2°
ARES FILTER (#156286):   63,6°
ARES FILTER (#156287):   82,7°
ARES FILTER (#156283):   21° x 63,6° (hxw) (elliptical)
ARES FILTER (#156281):   63,6° x 21° (hxw) (elliptical)
ARES FILTER (#156282):   63,6° x 92° (hxw) (elliptical)
Values are net values
