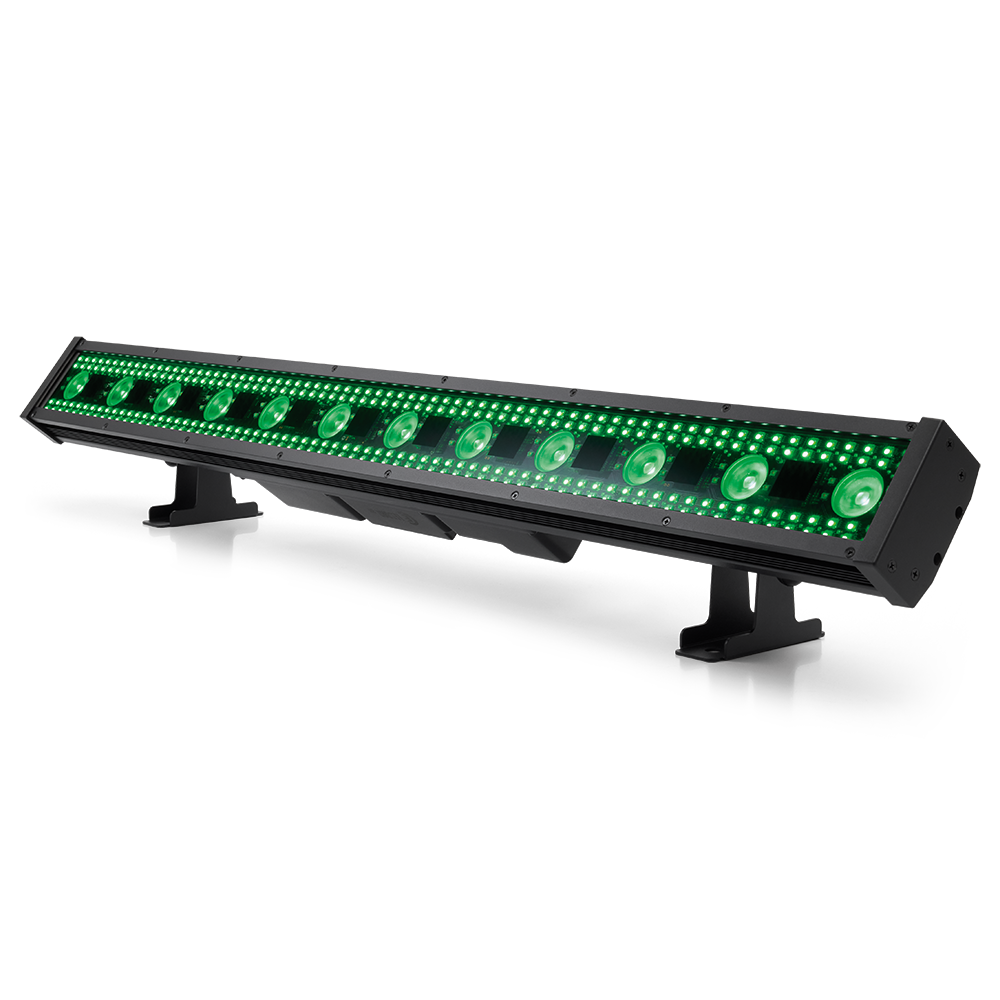

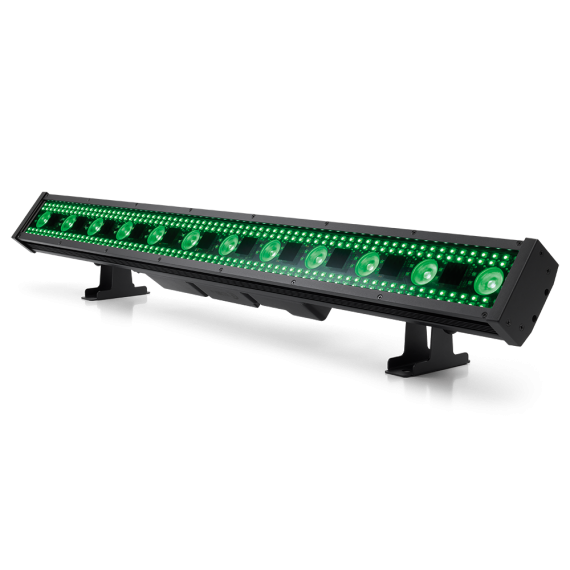

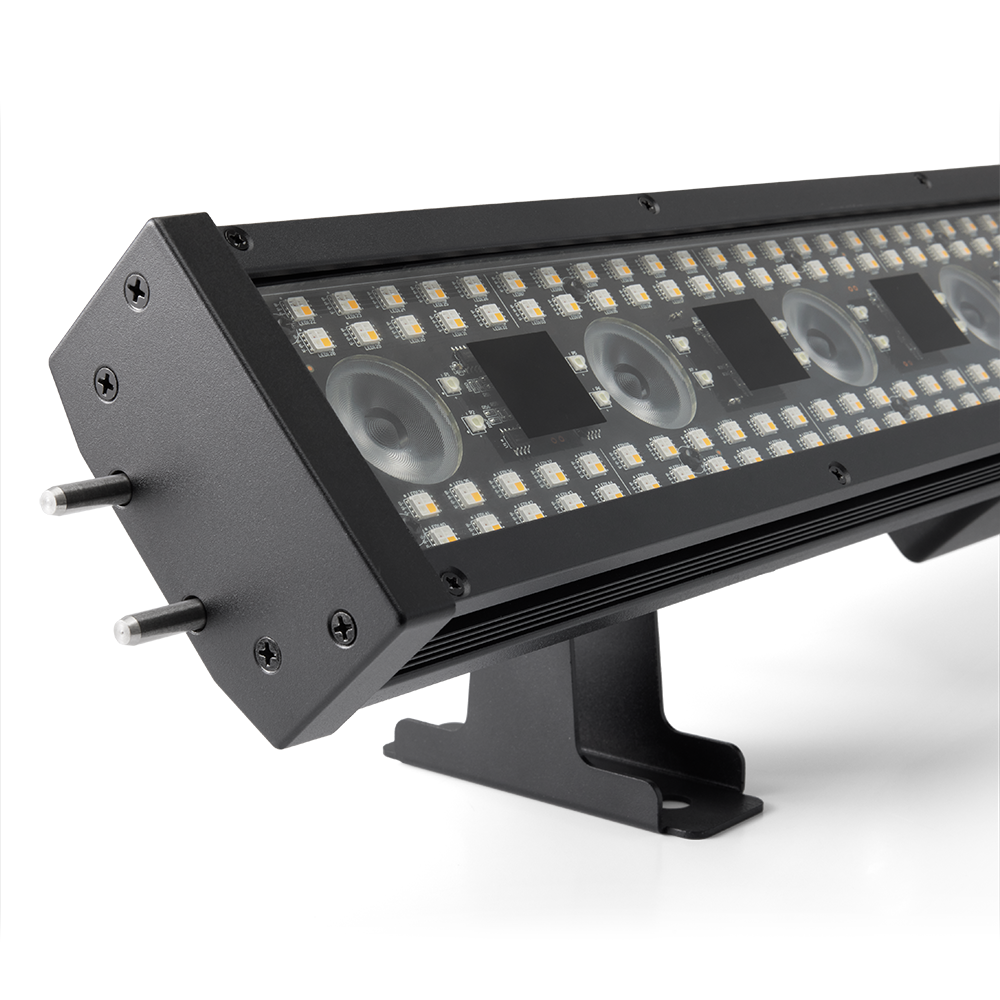

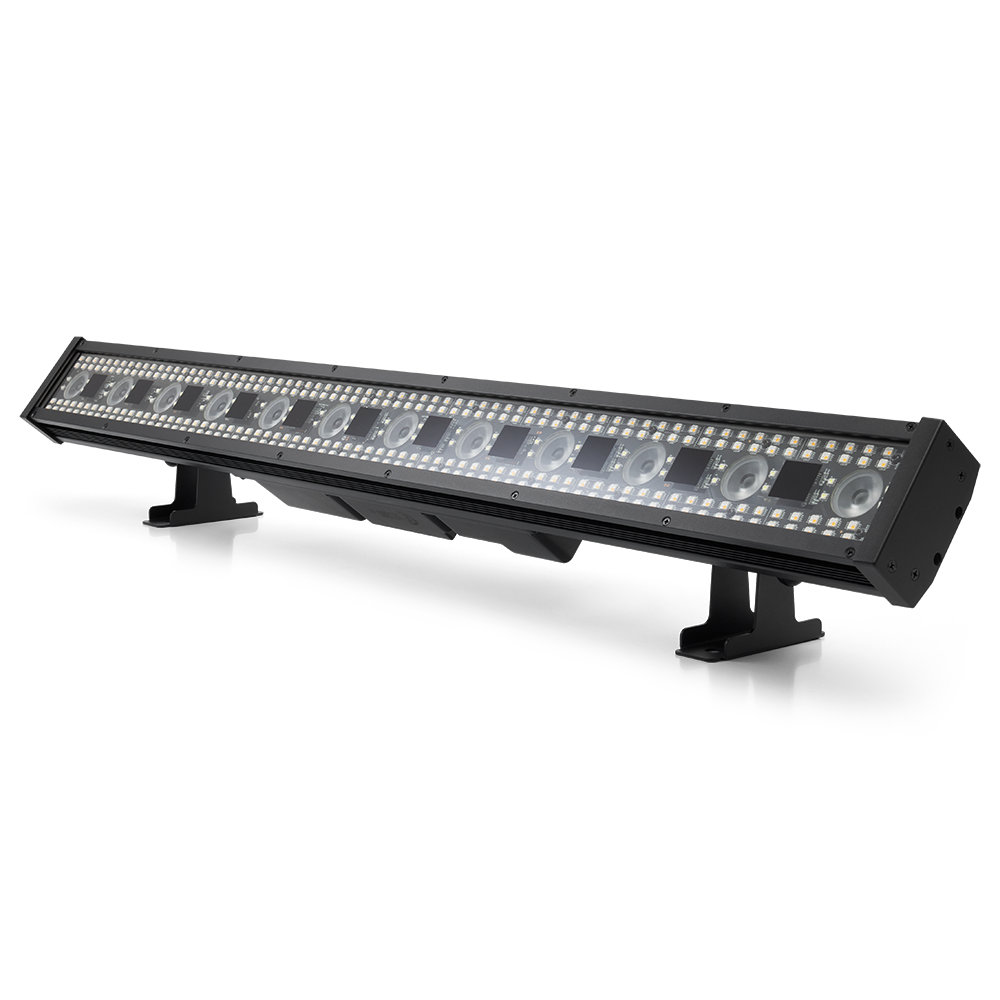

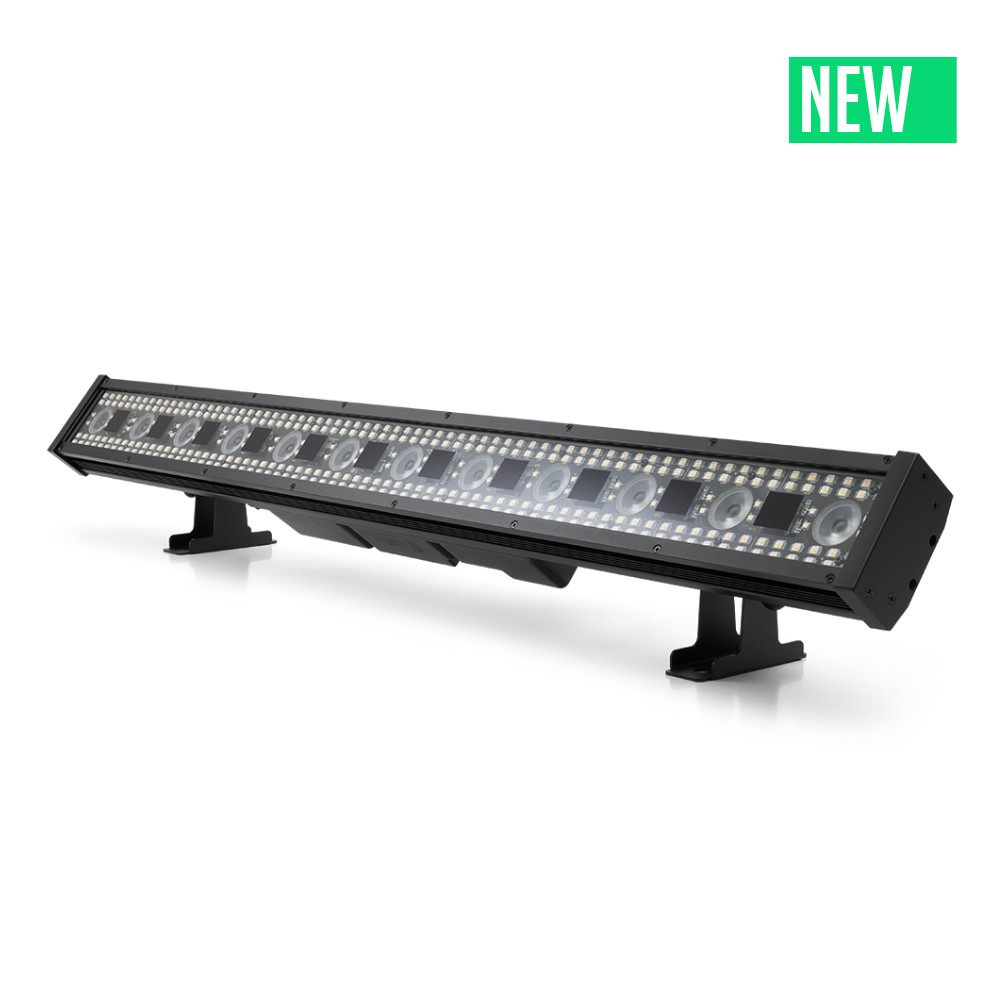

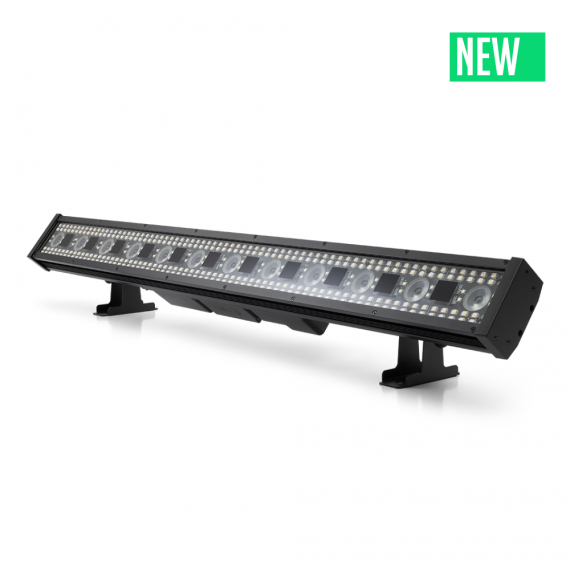

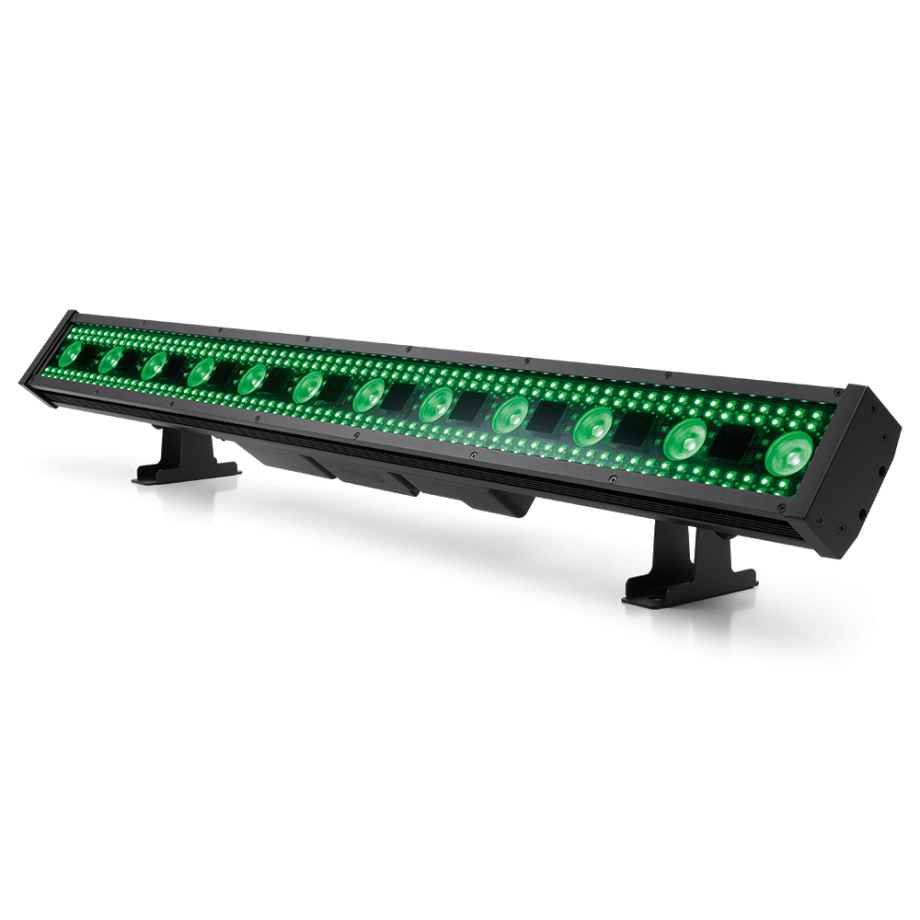

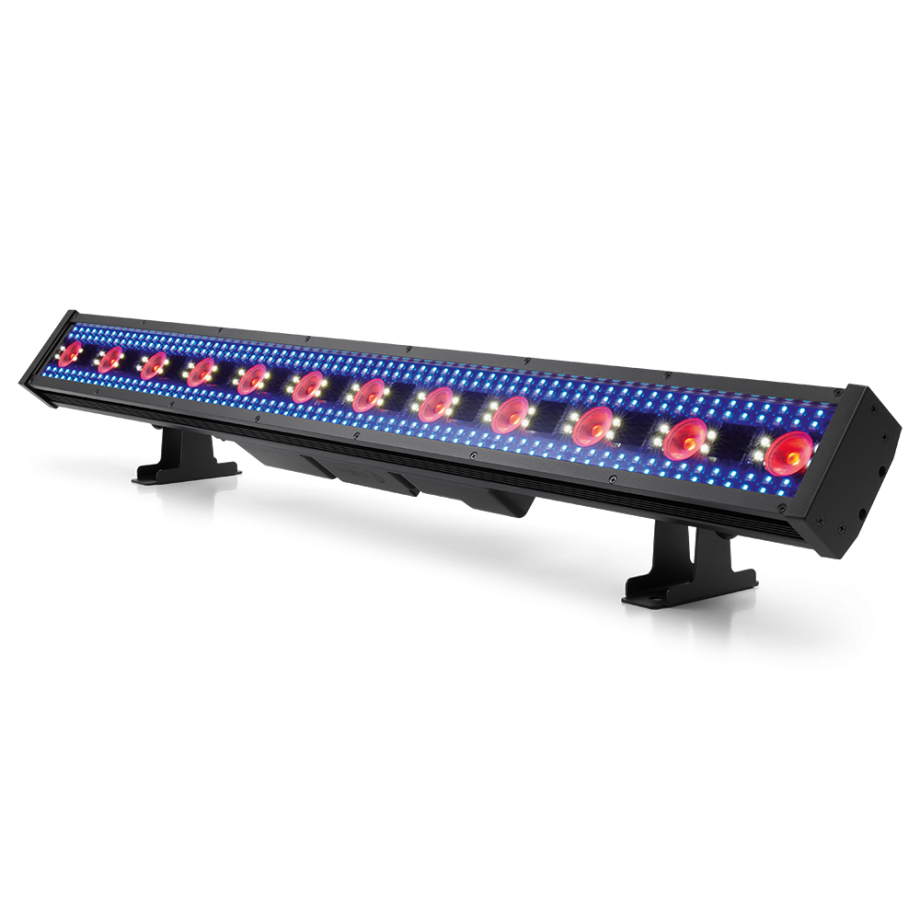

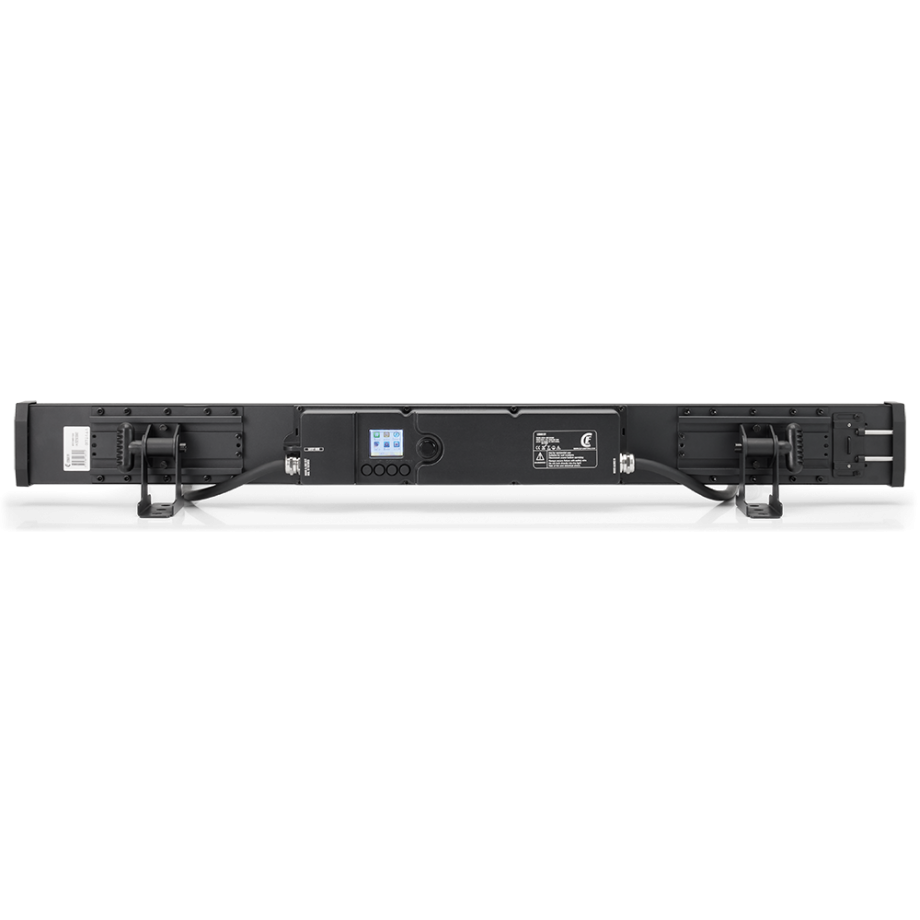

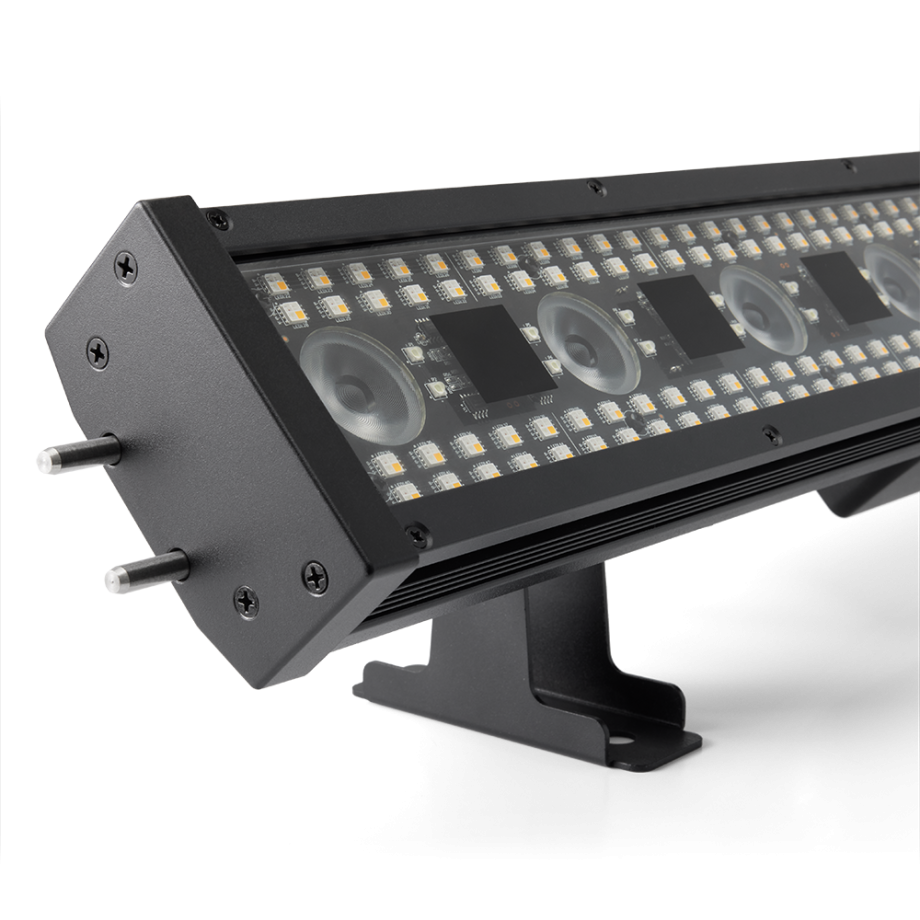

The CLF LEDBAR EFF is a highly appreciated addition to the CLF lineup. This versatile effect bar is packed with features and houses huge amounts off macros and different product looks, making it ideal for both indoor and outdoor events that demand high quality and creative versatile products. Multiple built-in engines control the huge amount off led inside the fixture offering extensive creative freedom. Combined with the strobe led elements for strobe effects.
| FACTSHEET | |
| DMX CHANNELS | 12/21/23/25/30/31/34/38/39/43/57/61/ 115/157/163 CHANNELS |
| DMX CONTROL MODE | DMX 512, RDM |
| BEAM ANGLE | 20° SPECIAL BLACK BODY LENS TO PREVENT PROJECTION |
| ELECTRONIC DIMMING | 0-100% LINEAR |
| PIXELMAPPING | 12 SECTIONS STROBE LIGHT, BOTH SIDES DIVIDED INTO 24 SECTIONS. SINGLE CONTROL MIDDLE LED |
| POWER SUPPLY | SPECIAL COMBINATION PLUG |
| INPUT VOLTAGE | 100 – 240 VAC 50/60HZ |
| POWER CONSUMPTION | 220W (STROBE 380W) |
| DMX CONNECTION | 1 CABLE/CONNECTOR SPECIAL DESIGNED POWER/DATA |

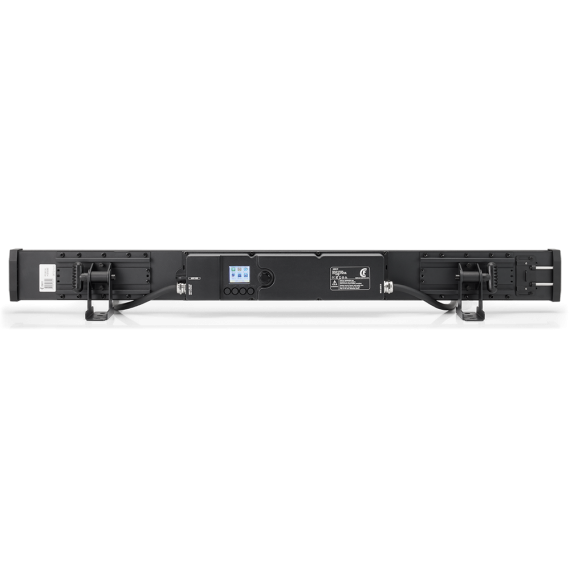

| DISPLAY | LED DISPLAY FOR EASY READING
WITH BUTTON CONTROL |
| DIMENSIONS | 999.6 x 95 x 188 mm |
| WEIGHT | 5,7 KG |
| CERTIFICATION | CE |
| IP RATING | IP65 |

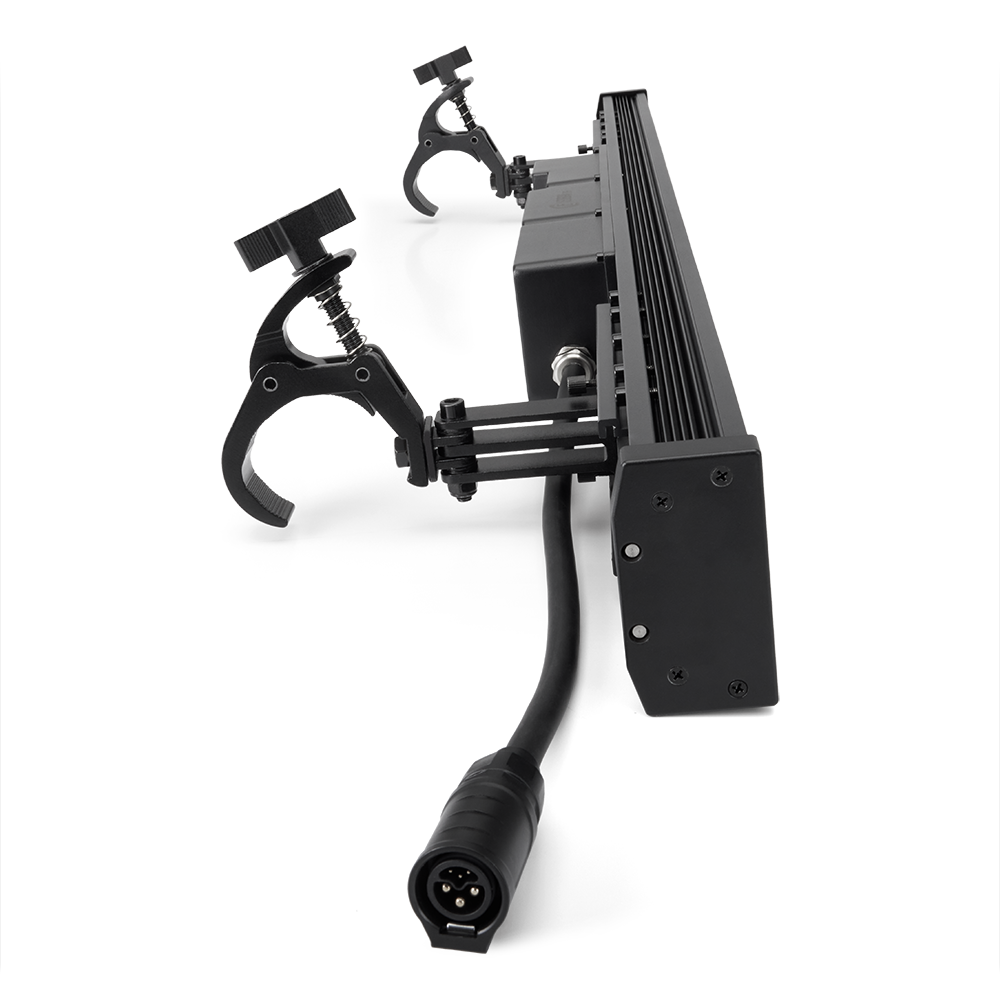

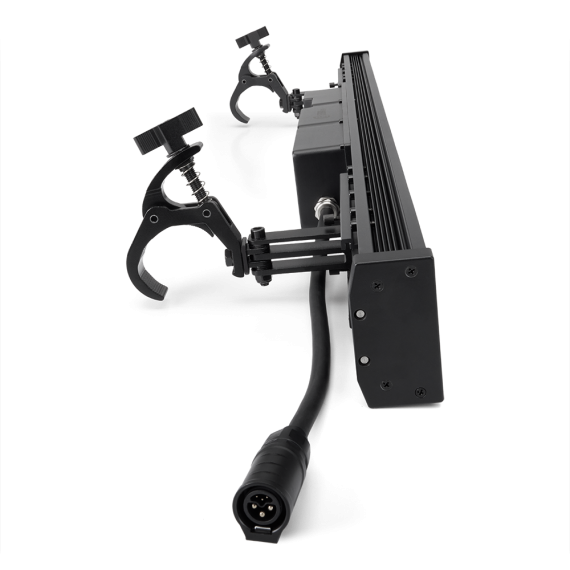

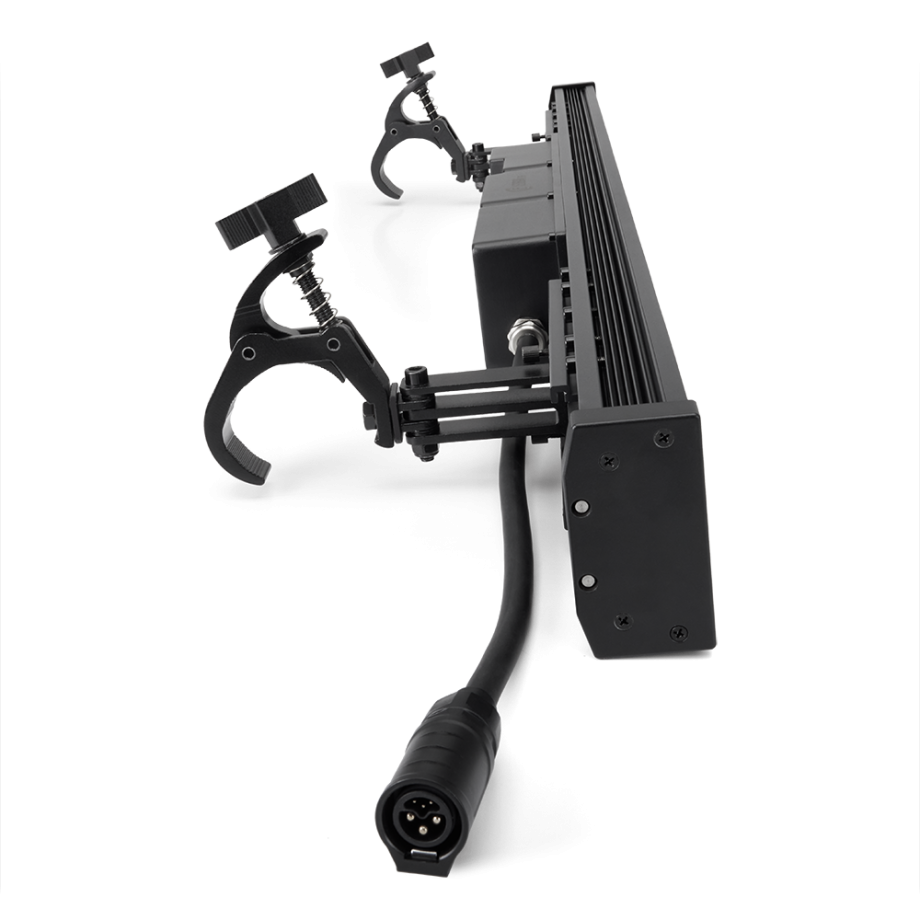

| RIGGING | FOLDABLE CLAMP FOR HANGING AND STANDING BRACKET ARE BOTH INCLUDED |
