LEDBAR STROBE

OUTDOOR LED STROBE

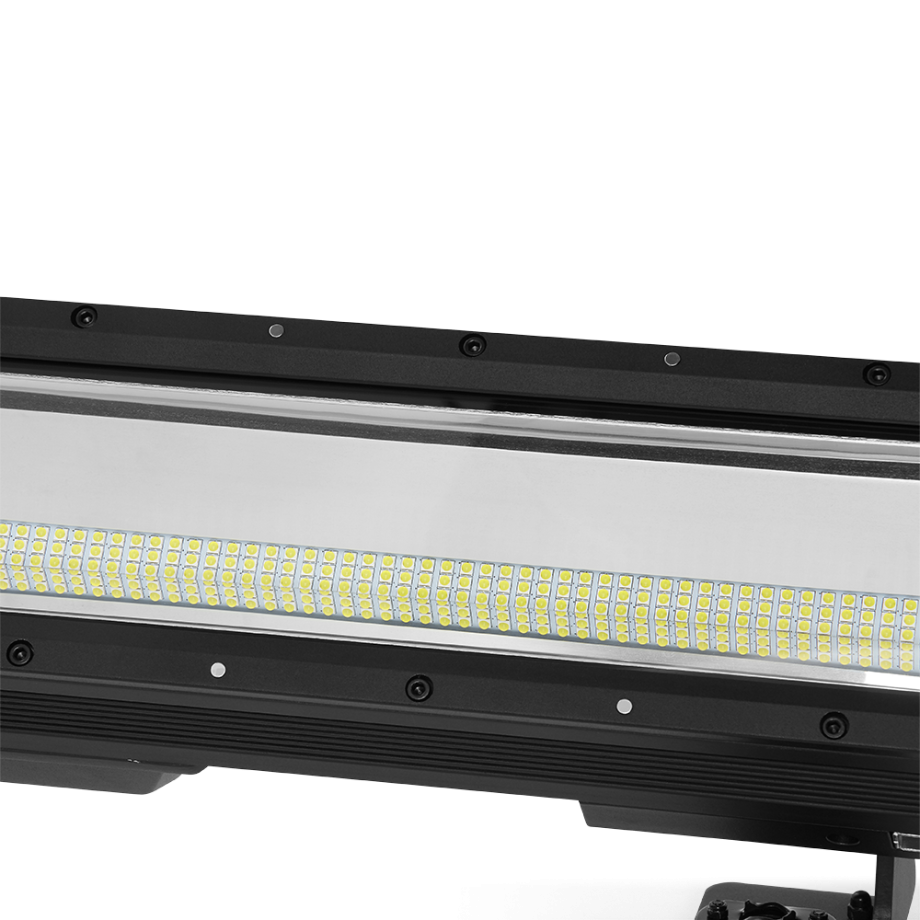

  • 480 high power CW LEDs
  • Continuous output
  • 8 individually controllable segments

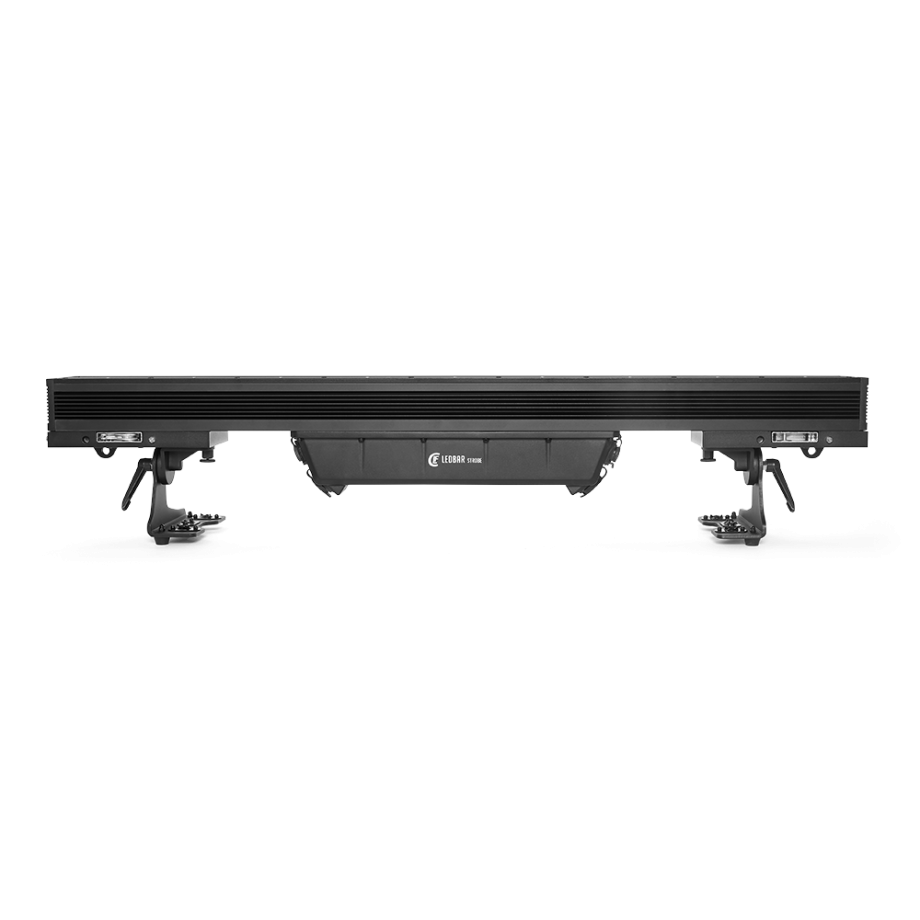

  • Multifunctional rigging system
  • IP65 rating
  • Art-Net & sACN controllable

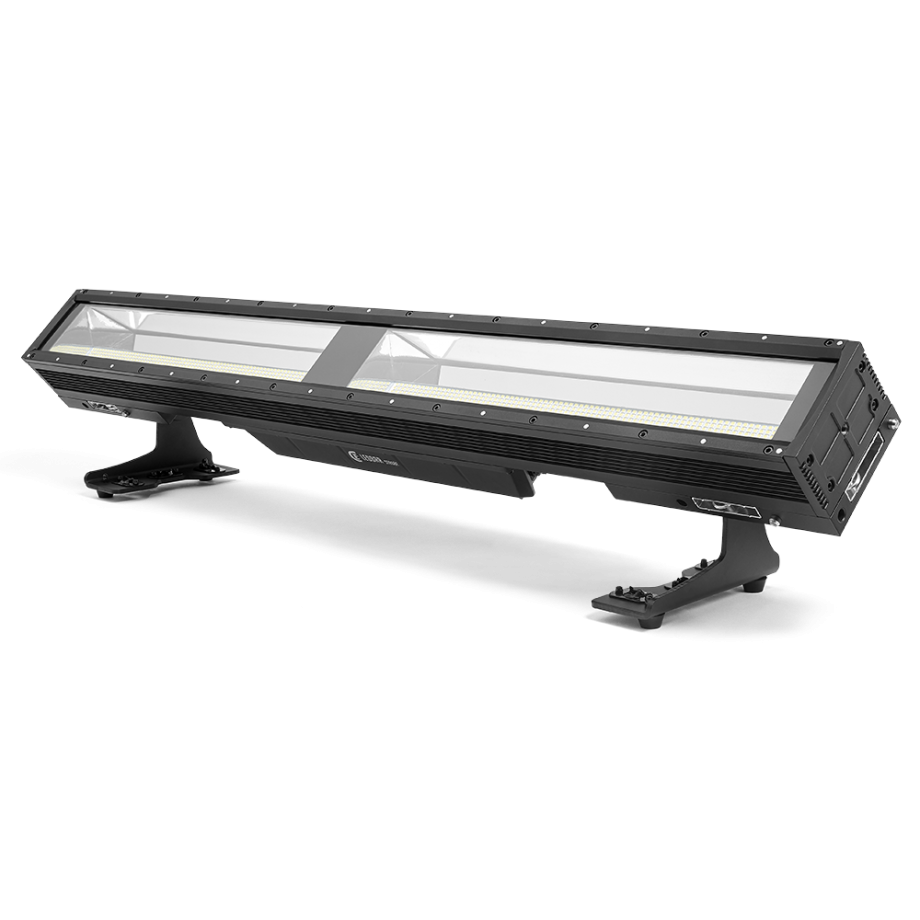

The CLF LEDbar STROBE is a high power cold white effect fixture with 8 individually controllable strobe segments. Fitted in a signature LEDbar PRO housing the fixture can be combined and integrated with LEDbar PRO setups. Dynamic effects can be easily configured by DMX, but the CLF LEDbar STROBE is also Art-Net and sACN ready. When using the on-board effect engine, special software enables maximum output levels. Moreover, the LEDbar STROBE is able to deliver continuous output without dropping output.

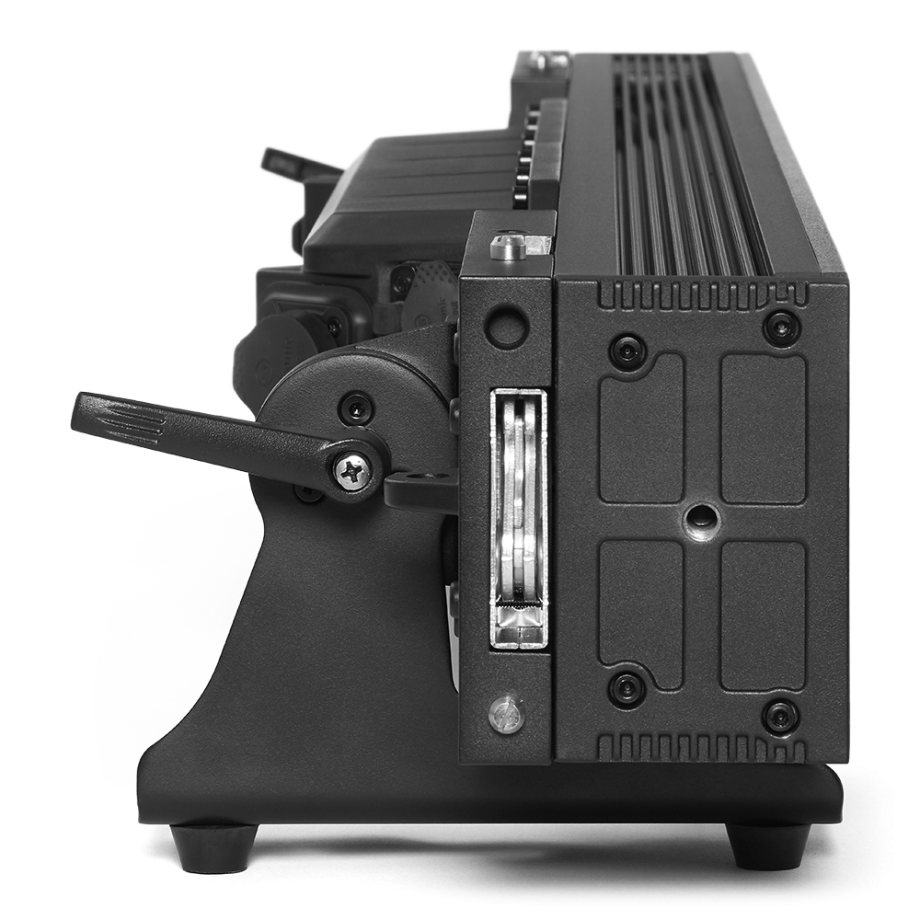

Multiple rigging options are offered by the easily adaptable bracket positioning system and the side lock system offers matrix possibilities. The CLF LEDbar STROBE can be used outdoor because of its IP65 rating. The LCD display offers easy access to the menu settings and manual control. Power can be connected through PowerCON TRUE1 connectors.

Power
Input Voltage & Rate 100-240VAC, 50/60Hz
Standby power 13W
Nominal Total Power Consumption
(at Nominal voltage 230V)
300W
Typical Current (at Nominal voltage 230V) 1.363A
Cos φ 0,989
Power Plug Type Seetronic PowerCON True
Configuration
LED Color White
LED Color Temperature 5200K
LED CRI level
Quantity of LED 480
Dimming frequency 600/1200/4000/8000
Dimmer resolution 16bit
Optical
Beam angle 94.9°
Photometric
Output @1M 8865 lux
Output @5M 368.6lux
Heat management
Cooling type: Passive cooling
MAX. Ambient temp (Ta max) 40°C
MIN. Ambient temp (Ta min) -20°C
MAX housing temp.(ta=25℃) 58.5°C
MAX housing temp.(ta=40℃) 67°C
Menu
Auto program Yes
Static Color Yes
Manual Calibration No
Factory calibration No
Strobe speed 0 – 20Hz
Effects Yes
Control
Control Protocol USITT DMX512/1990
DMX Channel Range 3/4/8/12
RDM Yes
RDM compliance ANSI/ESTA E.120
WDMX Optional
Art-Net & sACN Yes
DMX input connection DMX 5 pin in & out
Data input  (Art-Net, sACN) Yes
Hardware

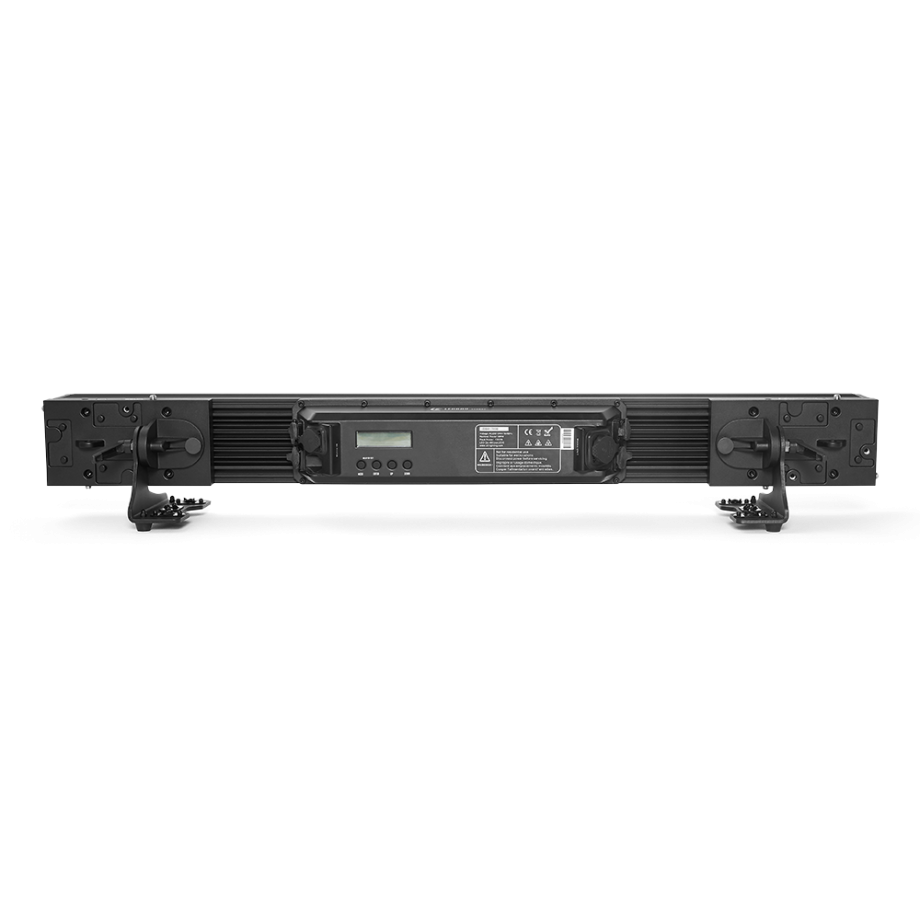

Interface Backlite LCD display
Software upload method XLR & RJ45
Installation
Orientation Any
IP rating IP65
Net product weight 10,2 kg
Machine Dimensions – Length 1000 mm
Machine Dimensions – Width 165 mm
Machine Dimensions – Height 210 mm
Included items Power cable
Manual
Approved certifications CE, RoHS
