ORION

FEATURE PACKED
HYBRID LUMINAIRE
  • SMOOTH CMY COLOR MIXING
  • FIXED COLOR WHEEL
  • 2 GOBO WHEELS
  • 3 + 1 DOUBLE WHEEL PRISMS
  • DOUBLE LINEAR FROST
  • 2° – 42° ZOOM WITH AUTOFOCUS
  • ANIMATION EFFECT
Category: Tag:

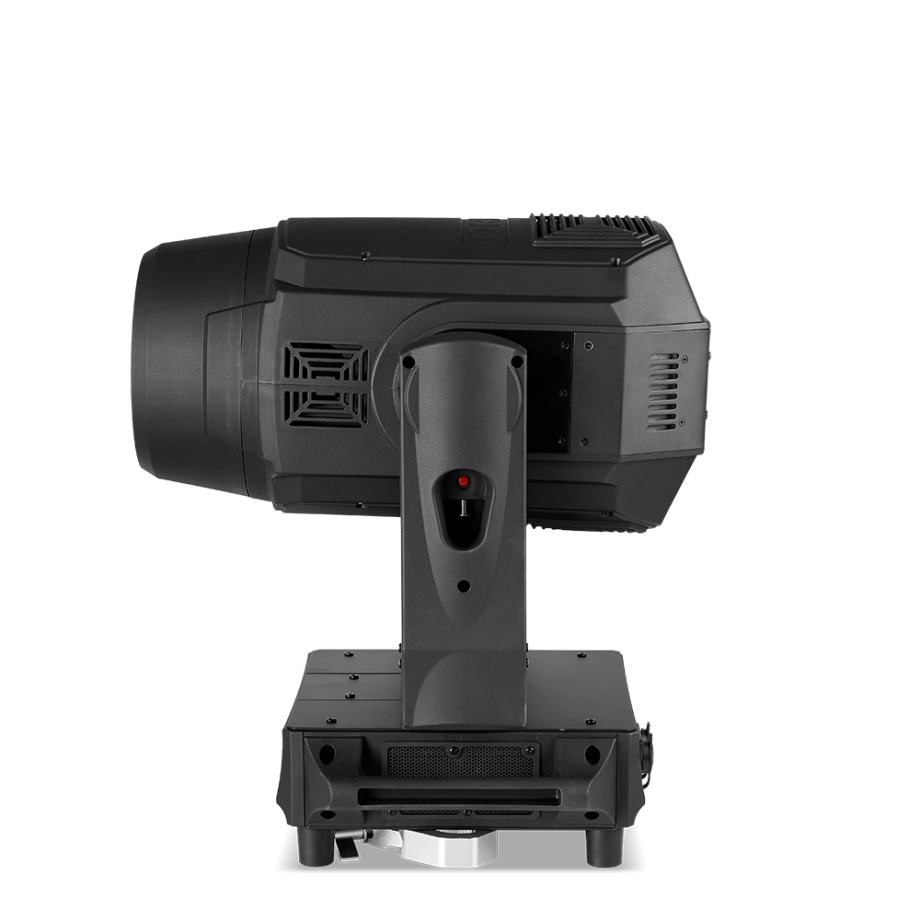

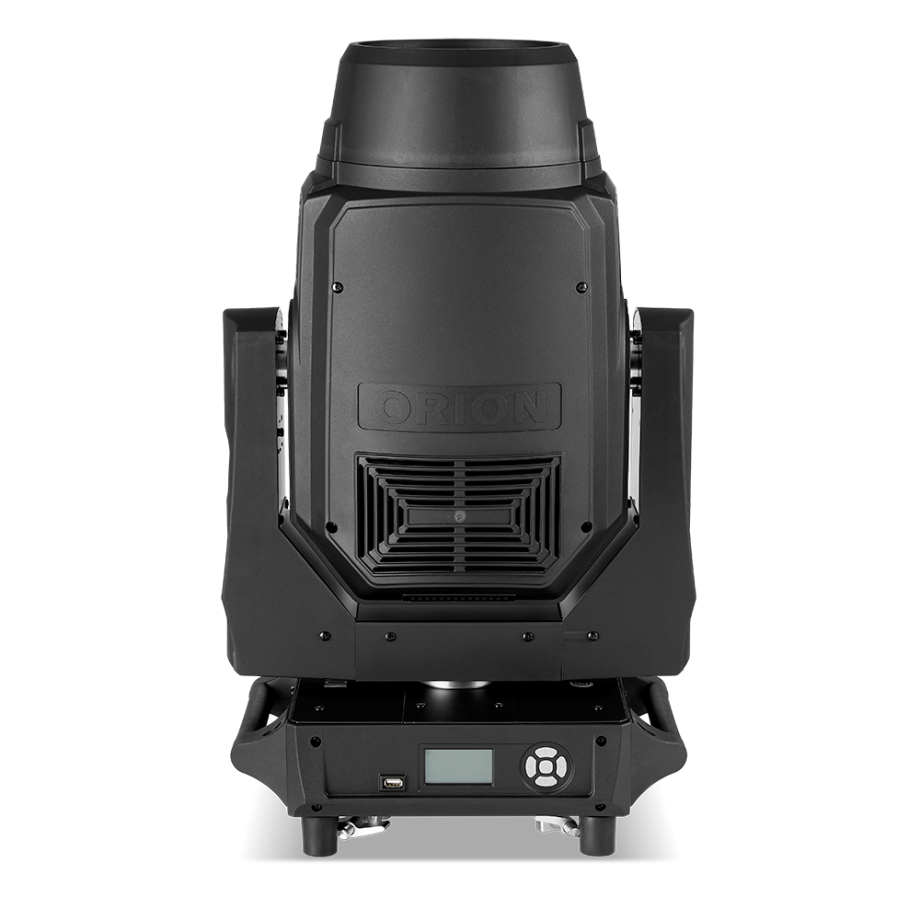

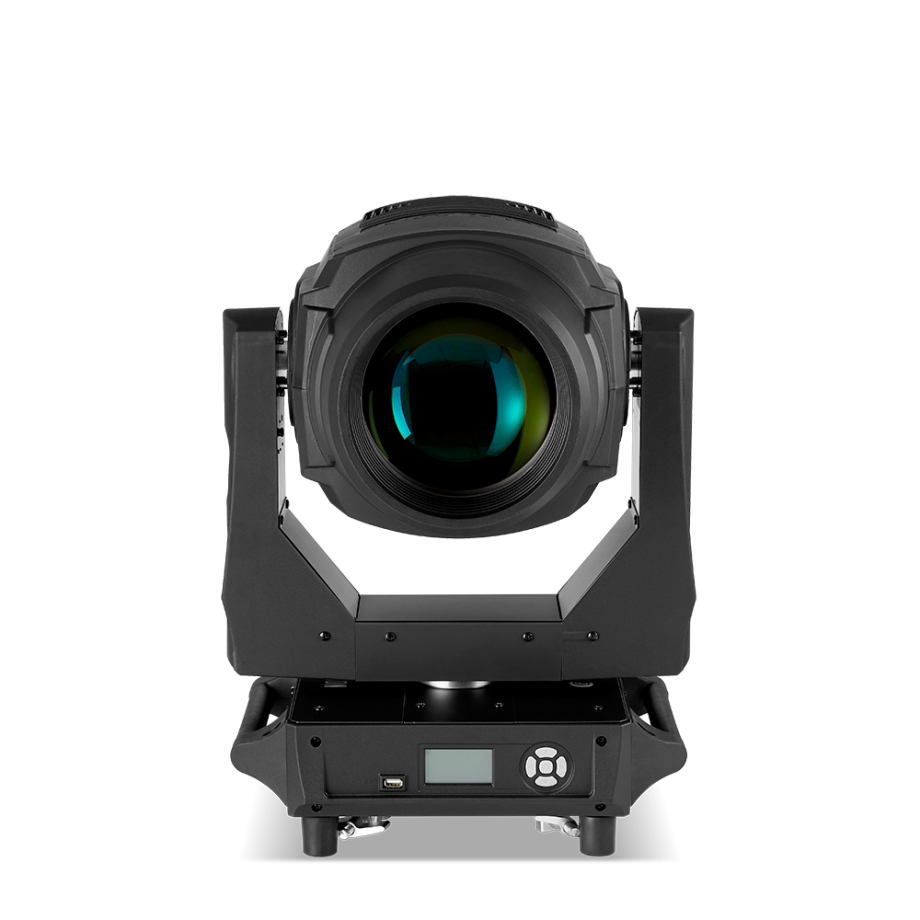

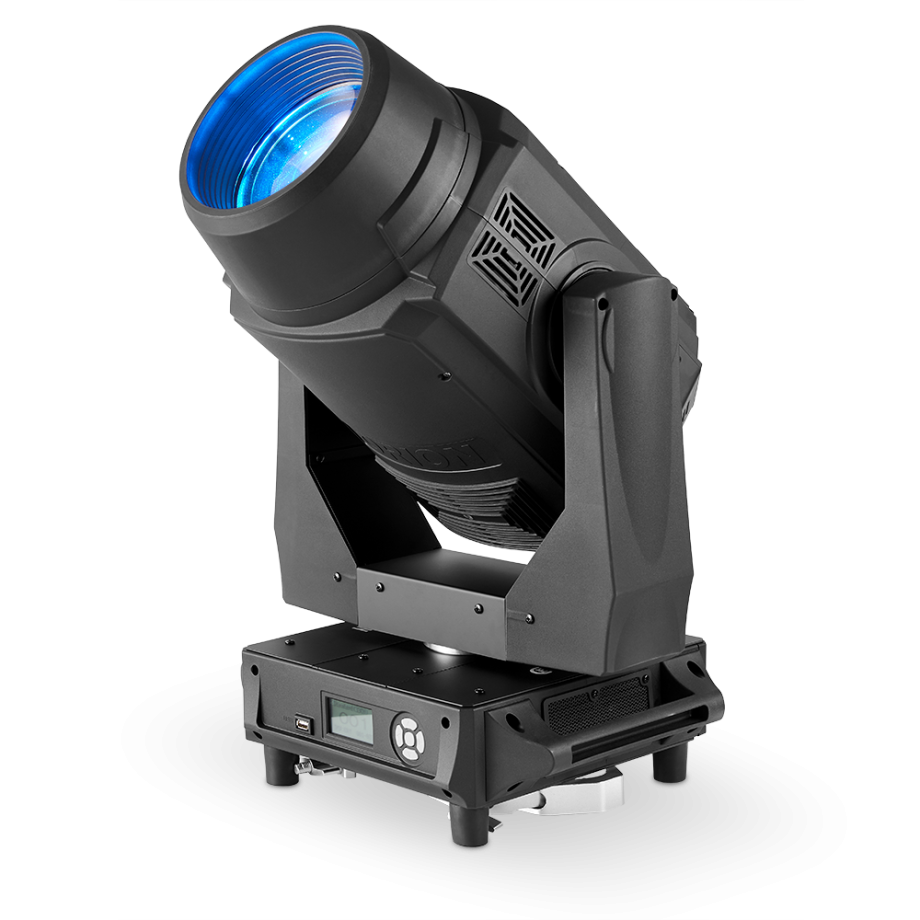

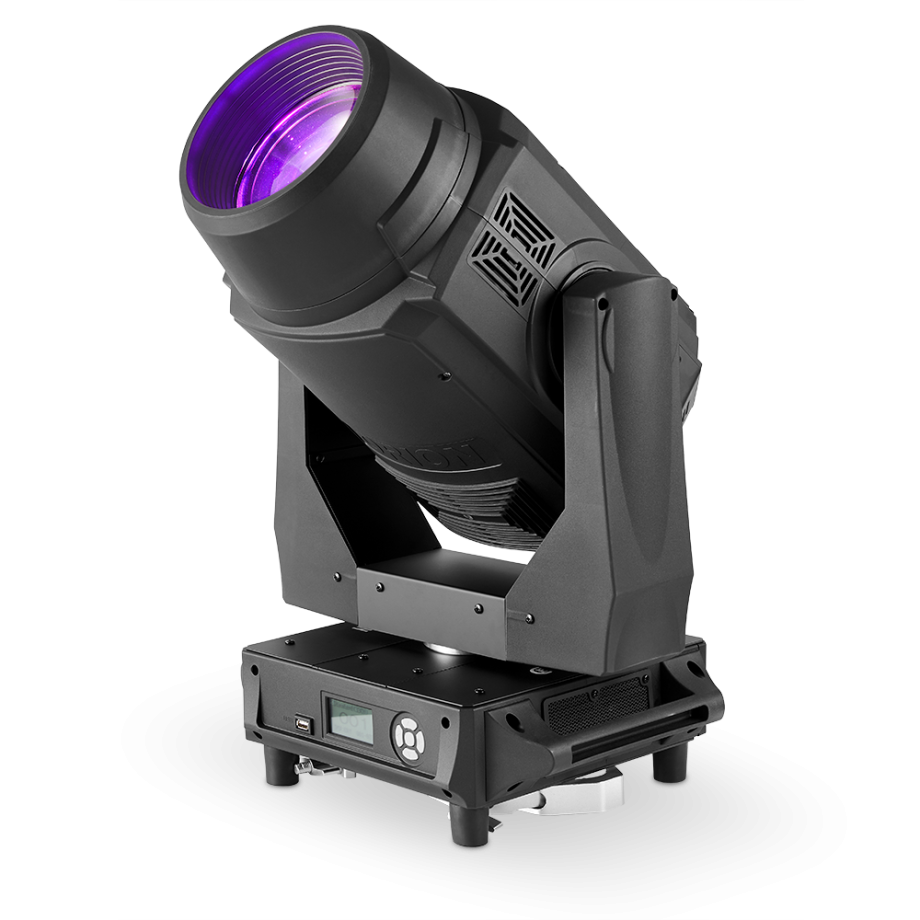

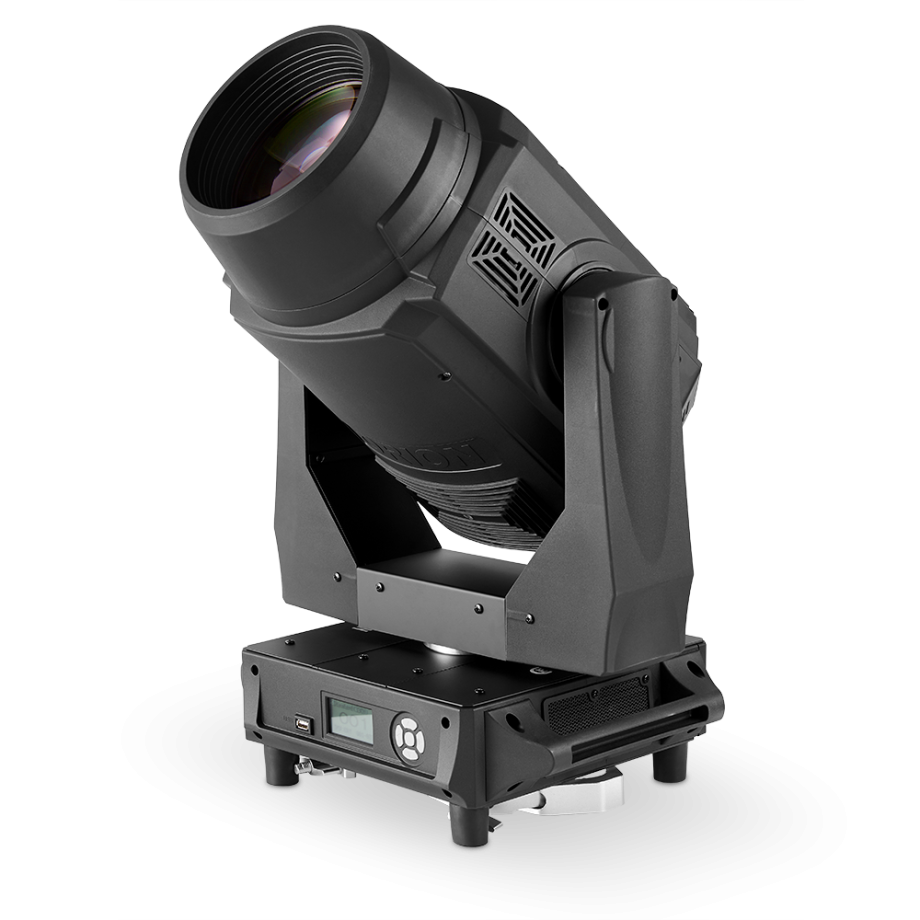

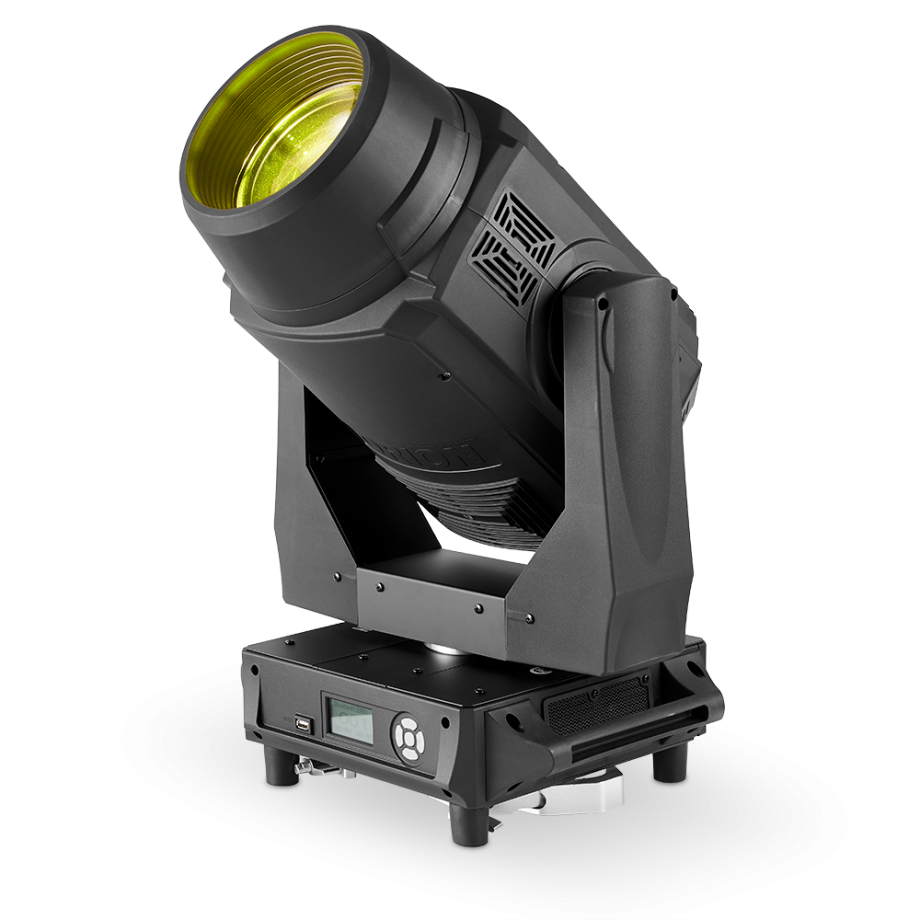

The CLF Orion is a multifunctional and powerful hybrid. This all-in-one workhorse features a wide lens which allows big mid-air effects. The 471W Osram light source provides a very bright and punchy beam, which can be zoomed from 2° to 42°. Colors can be mixed smoothly by using the CMY wheels, there is also a fixed color wheel available.

Among the effects are a fixed and rotating gobo wheel, both equipped with autofocus when zooming. Next to that, two prism wheels and an animation wheel are also part of the feature package. Two linear frosts are combinable for maximum flexibility. Hotspot control enables smooth projection, and a high CRI filter is available for television and theatre use

Power
Input voltage 100 – 240 VAC, 50/60HZ
Standby power 498W
Total power consumption 630W
 Typical current 2.7A
COS φ 0.972
Power plug type Seetronic PowerCON TRUE
Source
Lamp Osram Sirius HRI 471W SN
Expected lifetime 1500 hours
CRI level 80 (standaard), 90+ (high)
Optical
Beam angle Beam projection 2 – 21°
Spot projection 3 – 42°
Photometric
Output 2° @10M 422000 LUX
Output 42° @10M 765 LUX
Effects
Color mixing CMY, fixed color wheel
Gobo Rotating wheel 9 + open
Fixed wheel 13 + open
PRISM Wheel 1: linear, 4-facet, 8-facet
Animation Continuous animation effect wheel
Zoom 2° – 42°
Frost 1° and 5° level frosts, combinable
Dimming 16 Bit
Shutter 0.5 – 9 times / second, random
Pan 540°
Tilt 250°
Hardware

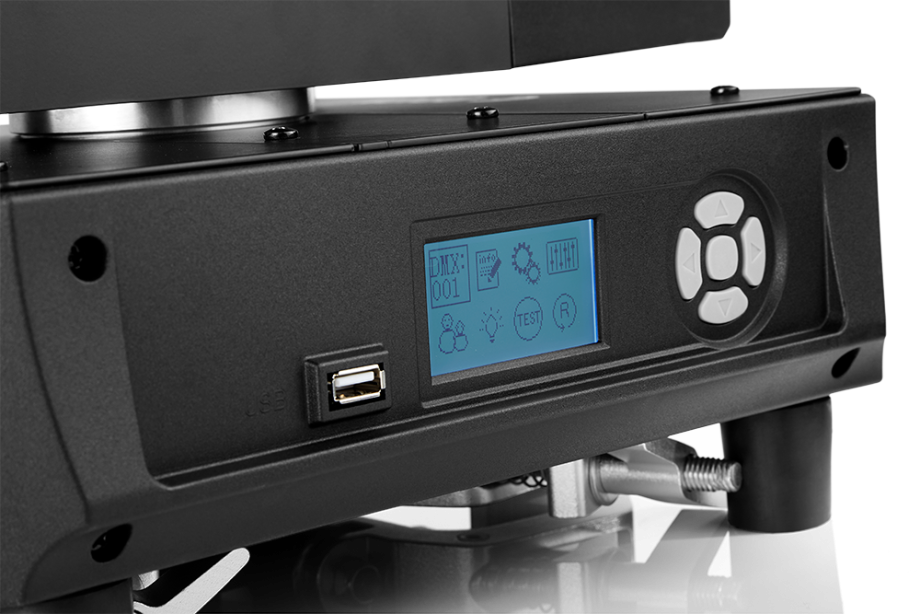

Interface LCD display
Software upload USB
Heat management
Cooling type Forced ventilation & axial fans
Max. ambient temp. Ta max=40°C
Min. ambient temp. Ta min=-20°C
Control
Control protocol DMX512
DMX channels 33
RDM Yes
DMX input connection 3-PIN and 5-PIN
Installation
IP rating IP20
Orientation Any
Housing

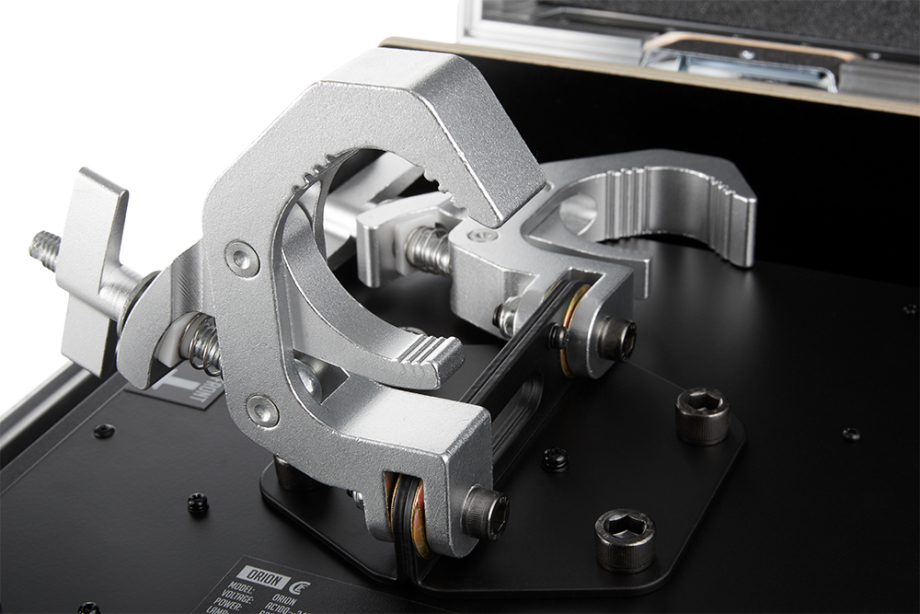

Safety attachement point Bottom
Lock Tilt lock
Physical
NET product weight 29KG
Lenght 401mm
Weight 300mm
Height 646mm
Accessories
Included items Manual, Power cable,
DMX cable & safety cable
Approvals
Approved certifications CE and RoHS
Information
Article number 160025
EAN code 8719189163179

CLF Orion
