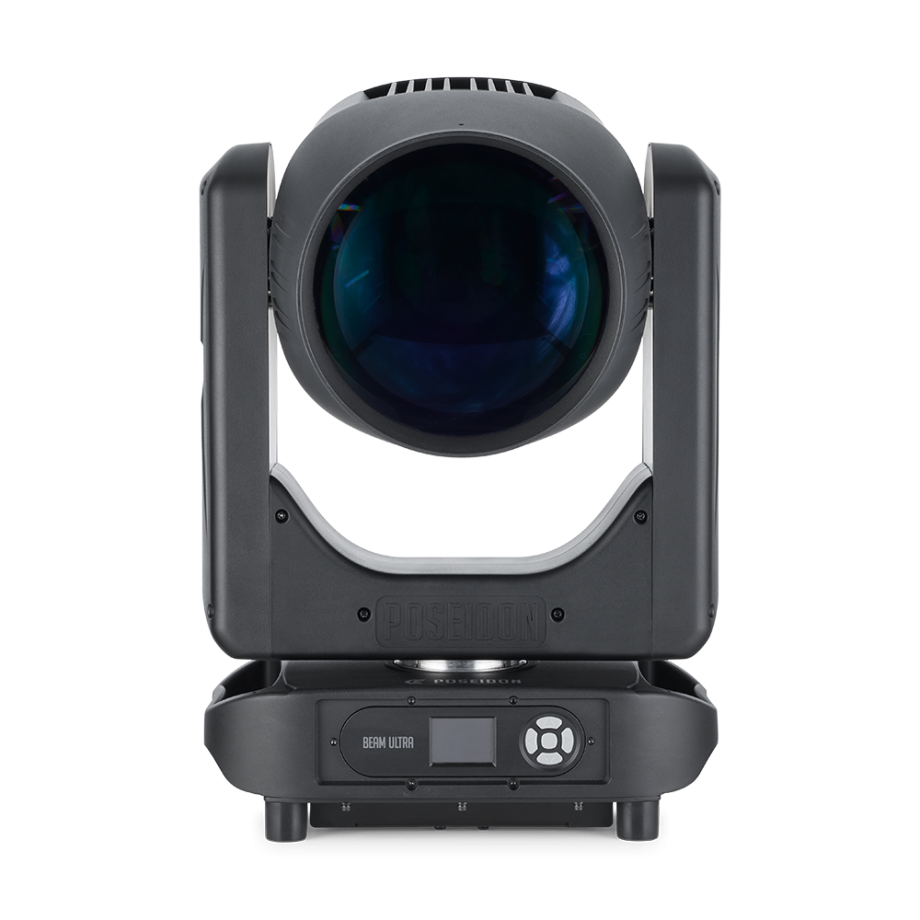

POSEIDON BEAM ULTRA

POWERFUL OUTDOOR BEAM
  • IP65 DUST AND WATER PROTECTION

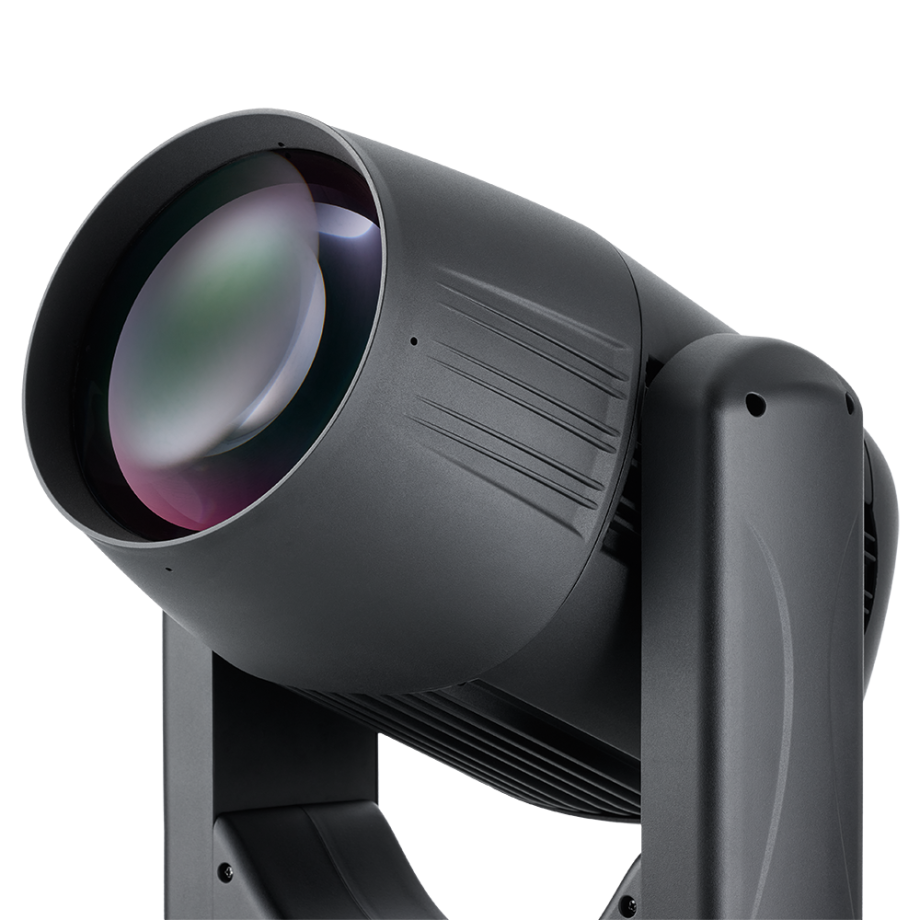

  • 200 MM LENS AND 1.6° LENS OPTICS
  • CMY AND COLOR WHEEL
  • GOBO WHEEL, FROST AND 2 PRISMS
  • LIGHT WEIGHT SLIM HOUSING

DOWNLOADS

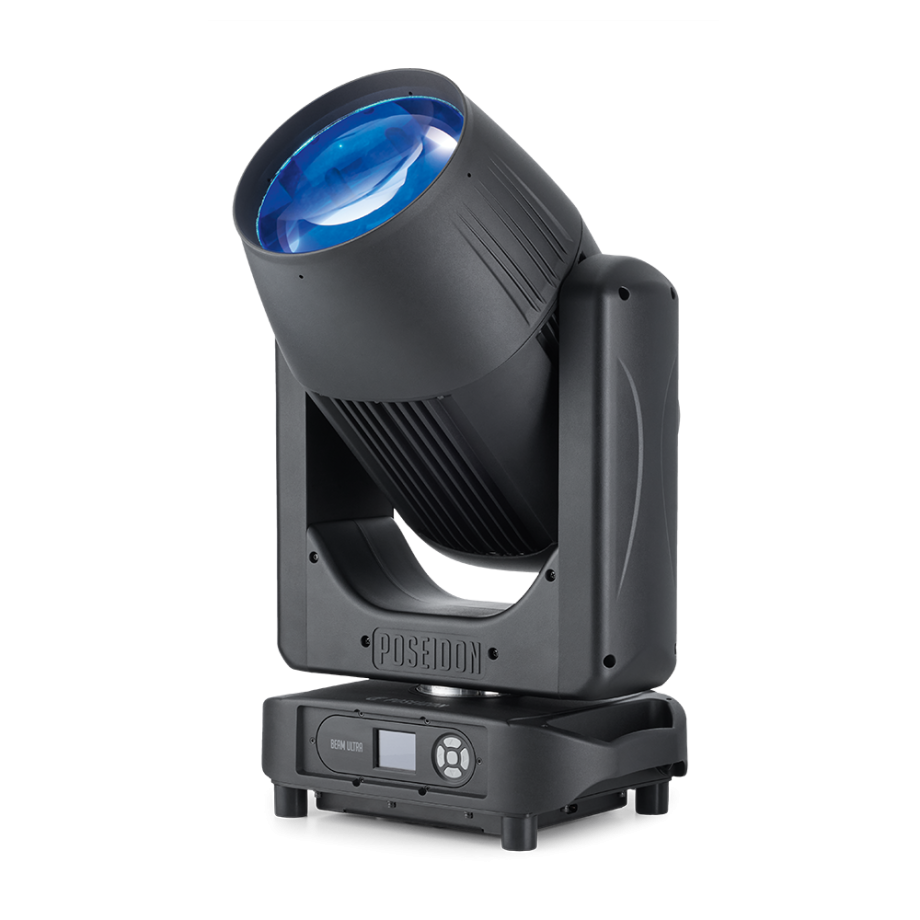

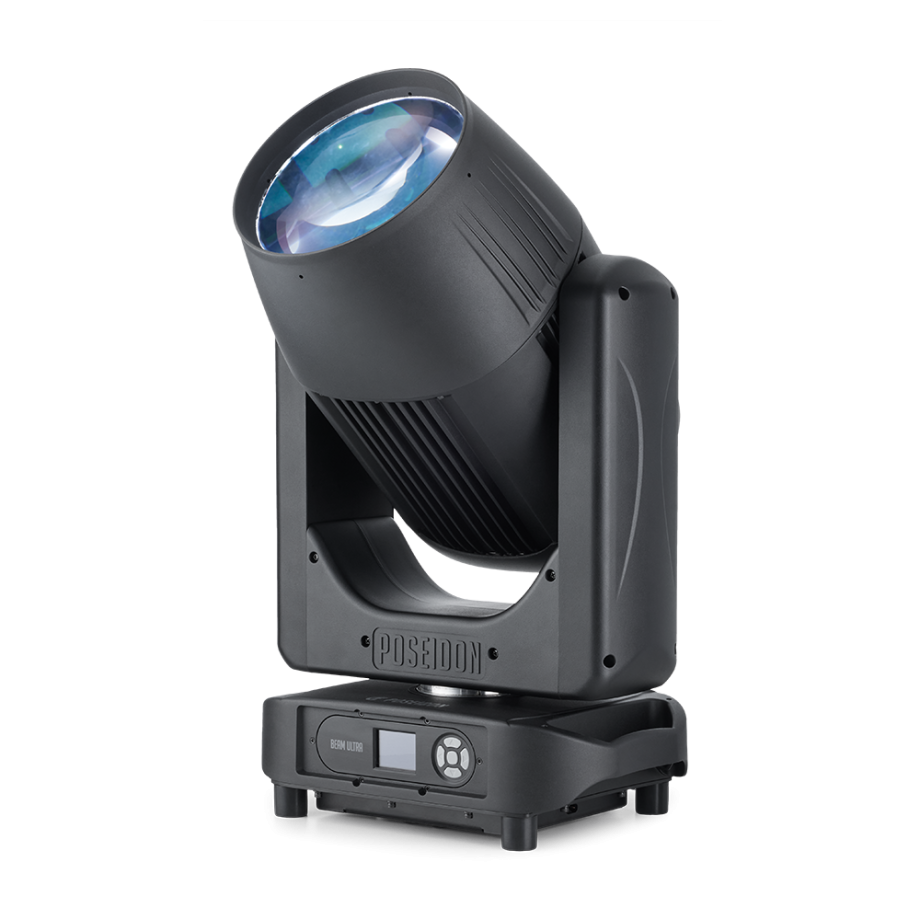

The CLF Poseidon Beam Ultra is a cutting-edge member of the Poseidon IP65 rated family of lighting fixtures designed for outdoor use. Based on the known Aorun, the Poseidon Beam Ultra has an exceptional performance and durability what stands out as the fastest and most powerful outdoor beam in its class. With its IP65 rating, it’s well-protected against both moisture and dirt, making it an ideal choice for a wide range of outdoor applications that demand superior beam effects.

Its feature set is both fast and precise, offering a range of capabilities that enhance its versatility. Some key features are CMY mixing, double prism wheel with a unique PRISM shake function, 200 mm lens and 1.6° lens optics.

One of the standout features of the Poseidon Beam Ultra is its elegantly designed, lightweight housing, which is not only visually appealing but also highly functional. Special motors embedded within the housing facilitate exceptionally fast and precise pan and tilt movements, allowing for intricate and engaging lighting displays.

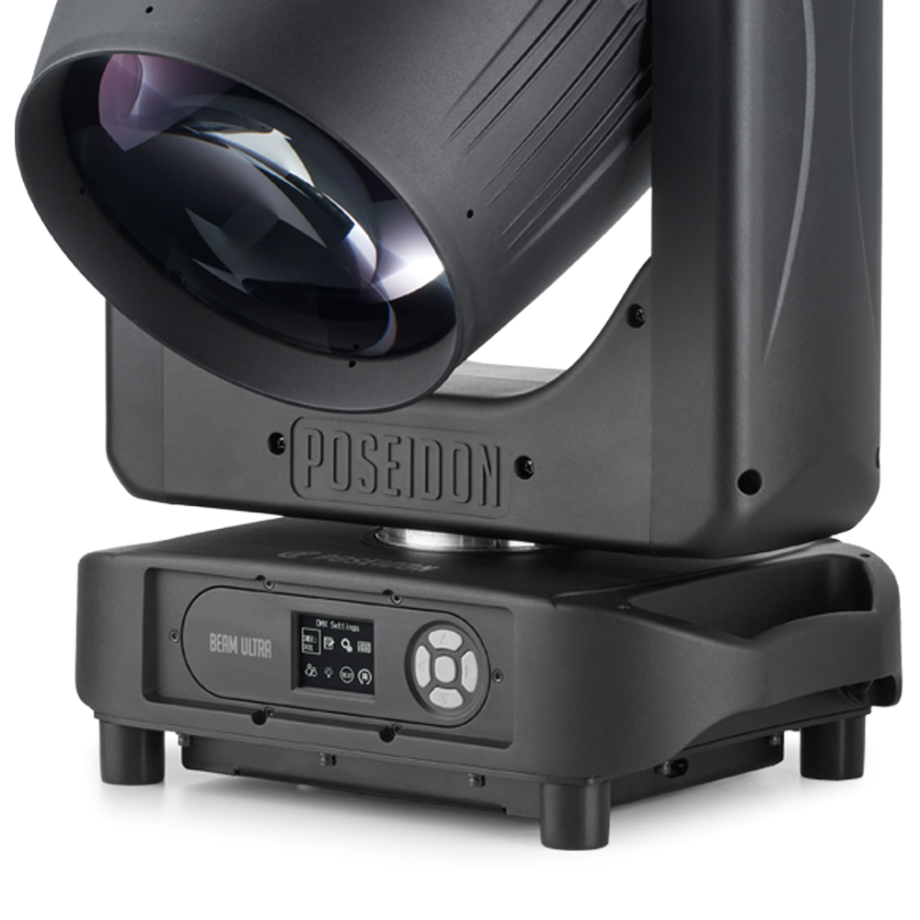

To facilitate user interaction, the Poseidon Beam Ultra is equipped with a bright LCD display that provides convenient access to on-board settings and is offline programable.

Power
Input voltage 100 – 240VAC, 50 / 60 Hz
Standby power 70 W
Total power consumption 530W
Typical current 5.3A
COS φ

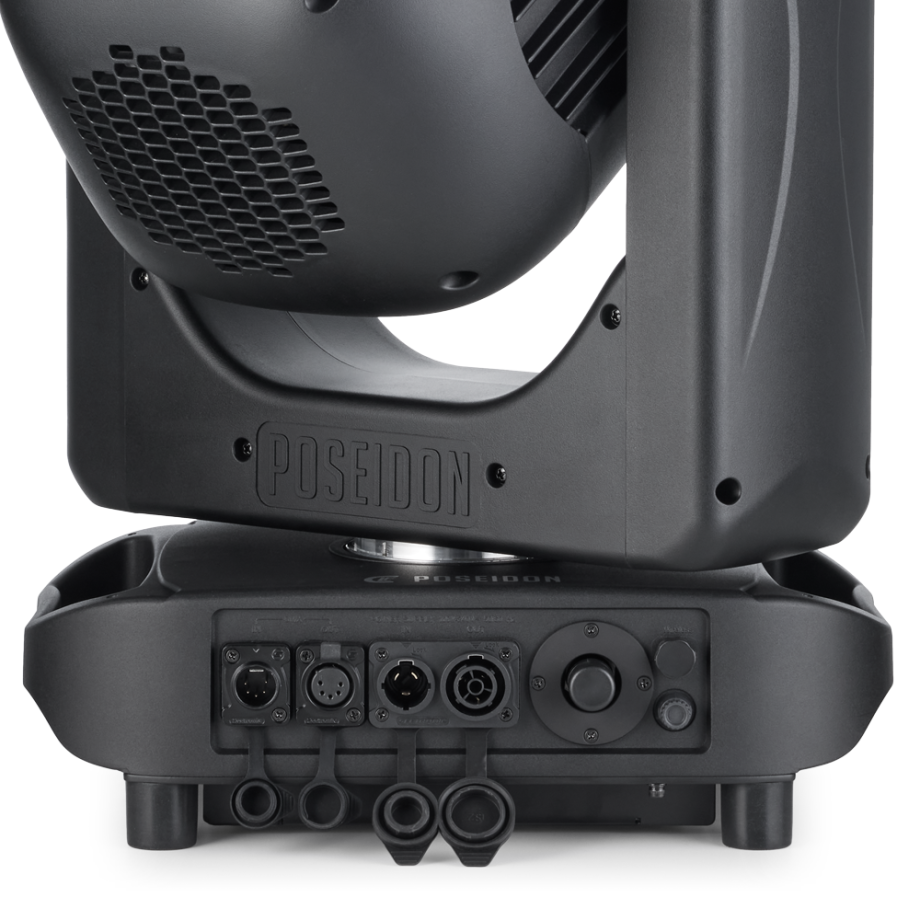

Power plug type Seetronic Powercon TRUE1
Source
Lamp Ushio NSL301 (CLF Poseidon Lamp Kit)
Lamp life expectancy 2000 hours / normal
Color temperature 7360 K
Optical
Beam angle 1.6°
Photometric
Output @10M 910000 lux
Output @50M 36000 lux
Effects
Color CMY
14 + open color wheel
Gobo 17 + open fixed gobo wheel
Prism 8-facet round, 24-facet round
Frost 6° linear
Dimmer 16-bit 0-100%
Shutter 12 Hz/second, random
Pan 540°
Tilt 270°
Focus 16-bit motorized
Heat management
Cooling type Regulated Fans
Max. ambient temp. Ta max=40°C
Min. ambient temp. Ta min=-20°C
Control
Control protocol USITT DMX512/1990
DMX channels 21
RDM Yes
WDMX Yes
DMX Input 5-pin (3 Pin optional)
sACN No
Hardware
Interface LCD Display with battery for offline programming
Software upload DMX, via upload tool
Installation
Mounting orientation Any
IP rating IP65
Housing

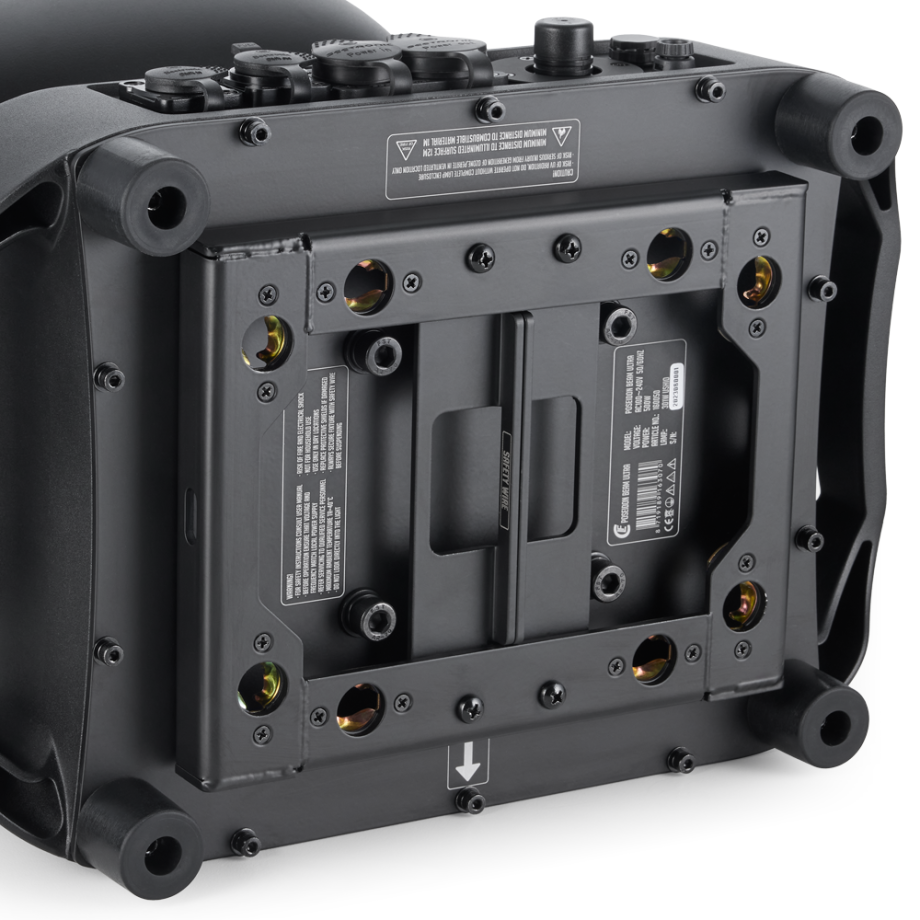

Safety attachment point Yes
Position lock Tilt
Physical
Net product weight 25,8 kg
Length 244 mm
Width 372 mm
Height 630 mm
Approvals
Approved certifications CE-EMC, CE-LVD and RoHS
Information
Article number 160050
Related
Included items Manual, power cable, safety
Optional CLF omega bracket, flightcase
