POSEIDON HYBRID

POWERFUL OUTDOOR HYBRID
  • SMOOTH CMY COLOR MIXING
  • IP65 RATING
  • 2 GOBO WHEELS
  • 3 PRISMS (LINEAR, 4-FACET & 8-FACET)
  • FROST
  • 2° – 45° ZOOM WITH AUTOFOCUS
  • ANIMATION EFFECT

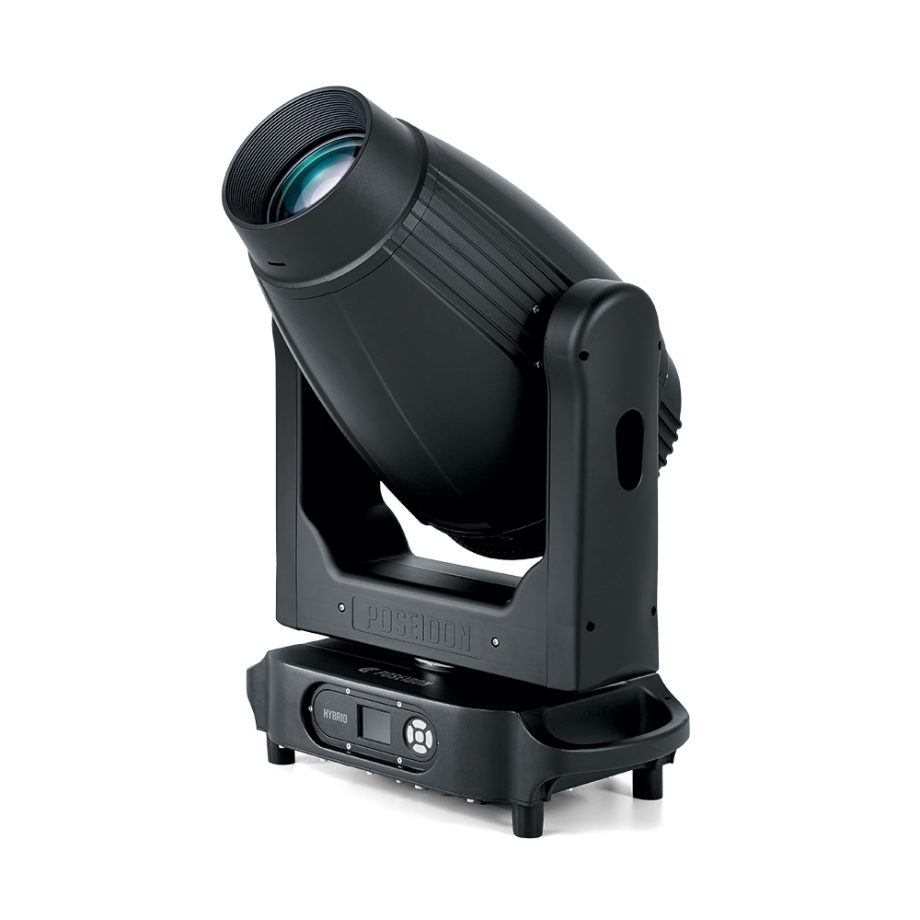

The CLF Poseidon Hybrid is the second member of the Poseidon IP65 rated family. It features an extreme light output which enables heavy mid-air effects. Protected against moisture and dirt, Poseidon Hybrid is a must-have fixture with a good value for money for any outdoor application requiring superior beam, spot and wash effects.

The multifunctional Poseidon Hybrid comes with a fast and accurate feature set, including CMY color mixing, three prisms, two gobo wheels, a rotating animation section and frost. An impressive 2° – 45° zoom range makes it easy to switch from beam to spot, without the need of selecting different modes.

Equipped with a 400W long-life light source, the fixture is able to perform up to 6000 hours, which immensely increases its value. The elegantly shaped housing is equipped with special motors that enable unsurpassed fast and precise pan and tilt movements. Additionally, the sophisticated housing eliminates dust in the optical path and is easy to service. A bright LCD display provides easy access to on-board settings, even in sunny environments.

Power
Input voltage 100 – 240VAC, 50 / 60Hz
Standby power 82W
Total power consumption 578W
Typical current 2.83A
COS φ
Power plug type Seetronic Powercon TRUE1
Source
Lamp Ushio 400W LL (CLF Poseidon Lamp Kit)
Lamp life expectancy 6000 hours
Color temperature 7300K
Optical

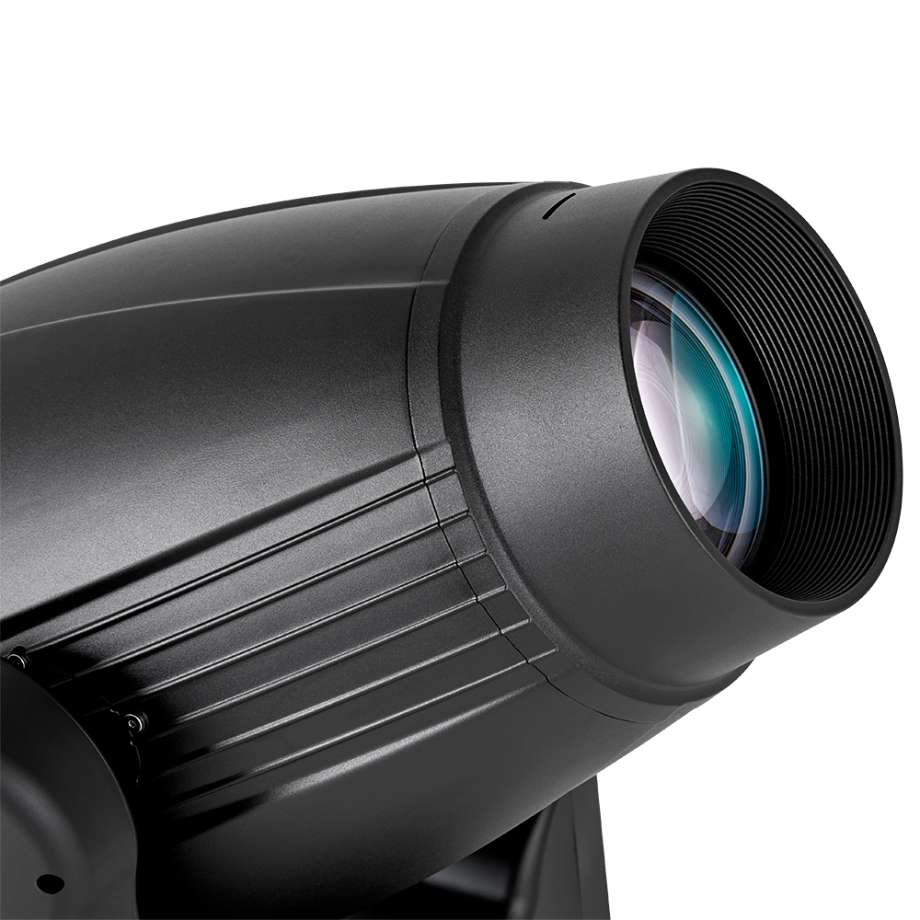

Beam angle 2°-45°
Photometric
Output @10M (Beam) 304440 lux
Output @50M (Beam) 11652 lux
Output @10M (Spot) 253700 lux
Output @50M (Spot) 9710 lux
Effects
Color CMY
14+open color wheel
Gobo (static) 14+open
Gobo (rotating) 8+open (indexable and replacable)
Prism 8-facet round, 16-facet round, linear
Frost
Animation Two way rotating
Zoom 2° – 45°
Dimmer 0-100% 16bit
Shutter 12 hz/second, random
Pan 540°
Tilt 240°
Focus Motorized
Heat management

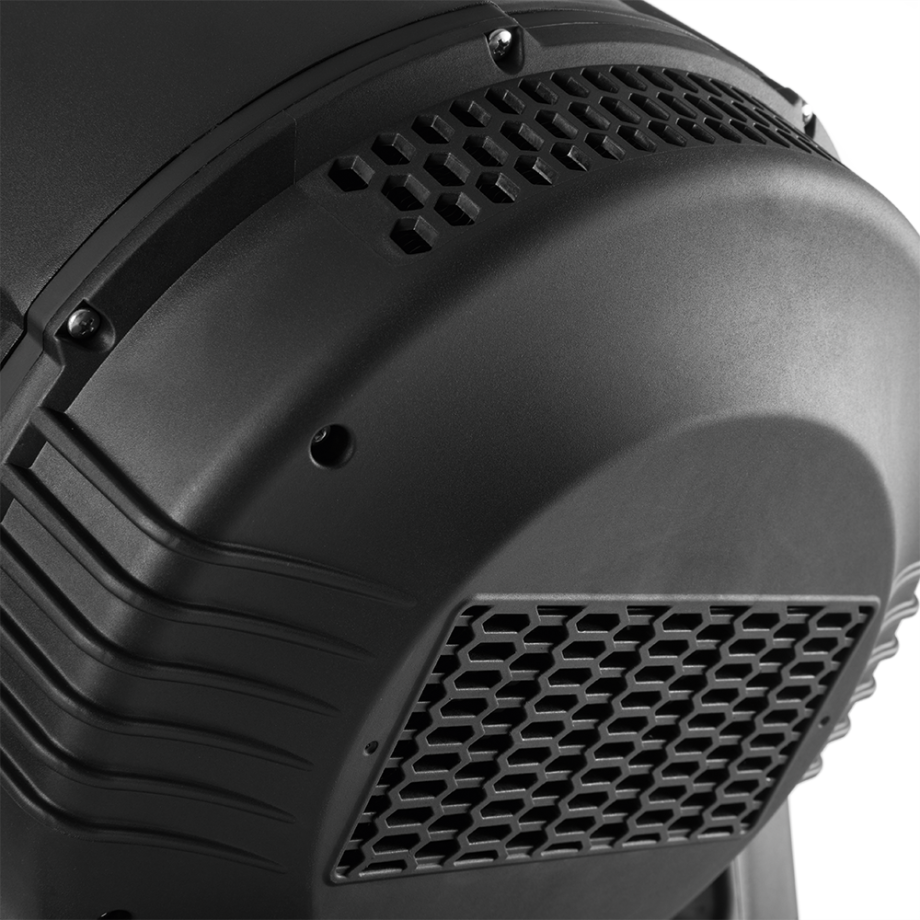

Cooling type Regulated Fans
Max. ambient temp. Ta max=40°C
Min. ambient temp. Ta min=-20°C
Control
Control protocol USITT DMX512/1990
DMX channels 33
RDM Yes
WDMX Yes

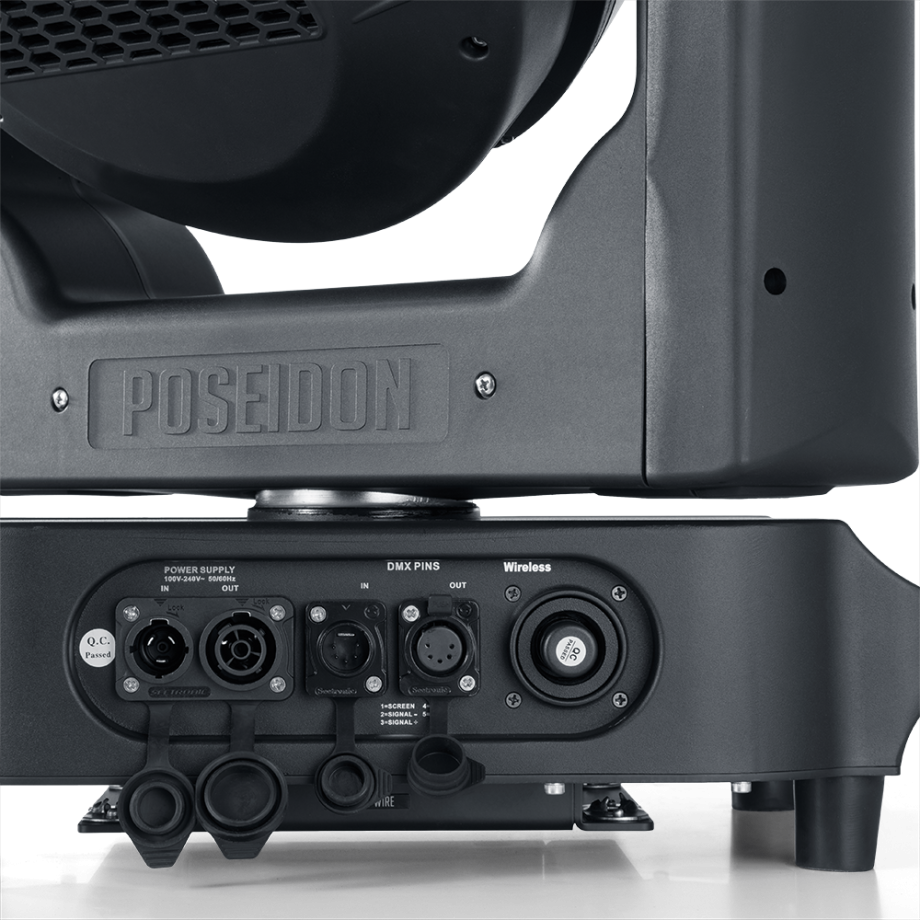

DMX Input 5-pin
sACN No
Hardware
Interface LCD Display
Software upload DMX, via upload tool
Installation
Mounting orientation Any
IP rating IP65
Housing
Safety attachment point Yes
Position lock Tilt
Physical
Net product weight 35kg
Length 488mm
Width 312mm
Height 747mm
Approvals
Approved certifications CE and RoHS
Information
Article number 160040
EAN 8719189163230
Related
Included items Manual, Power cable, safety
Optional CLF Omega bracket
