Description

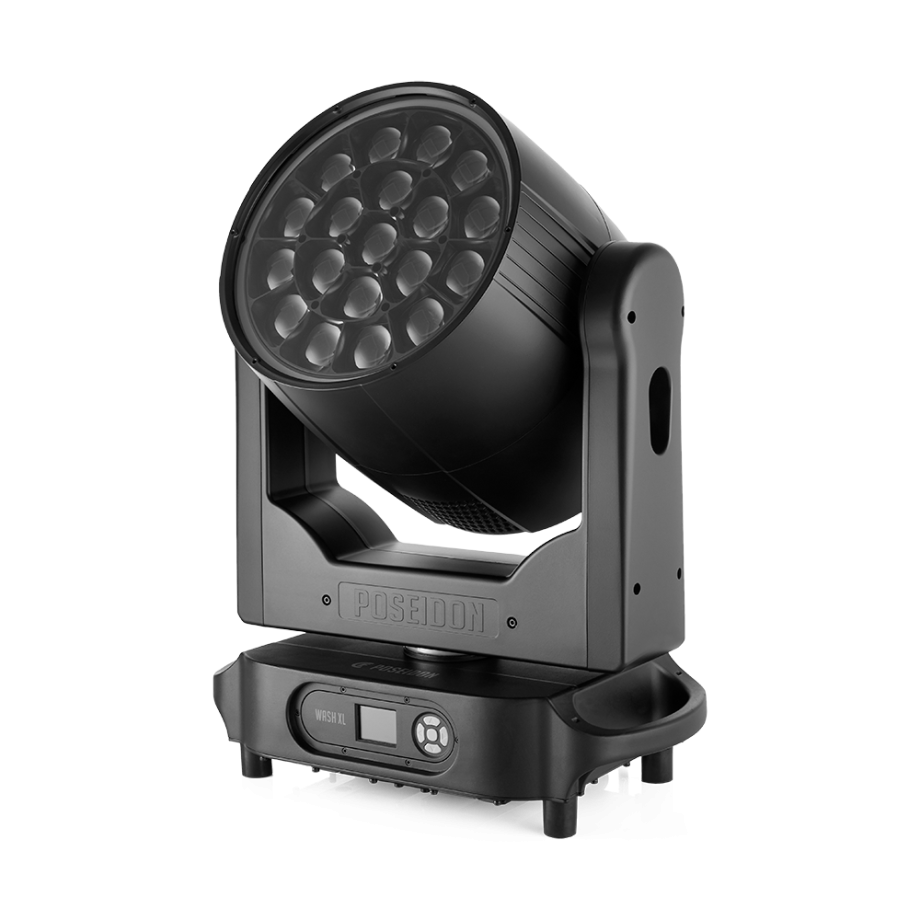

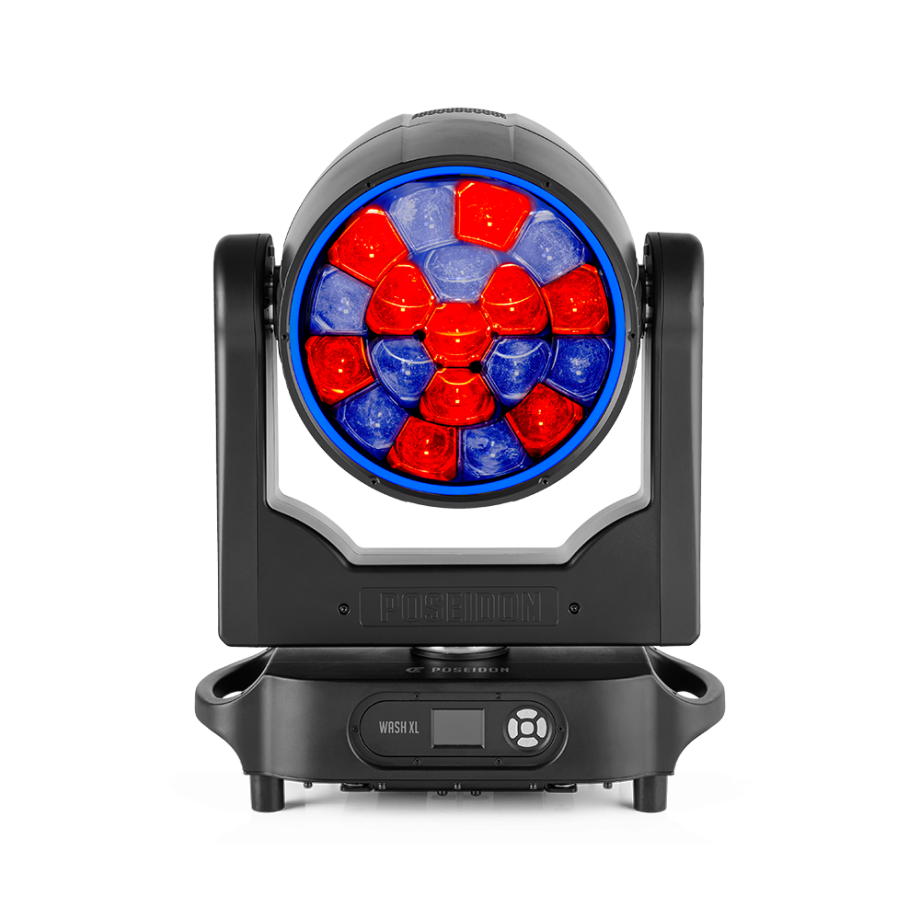

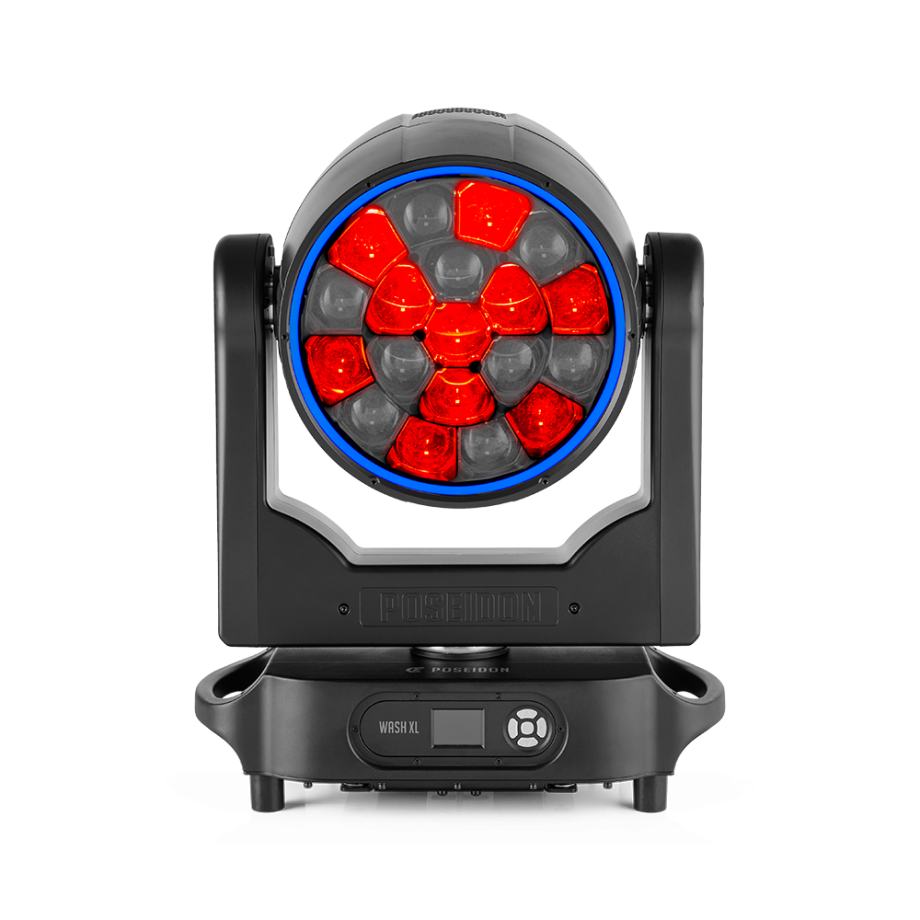

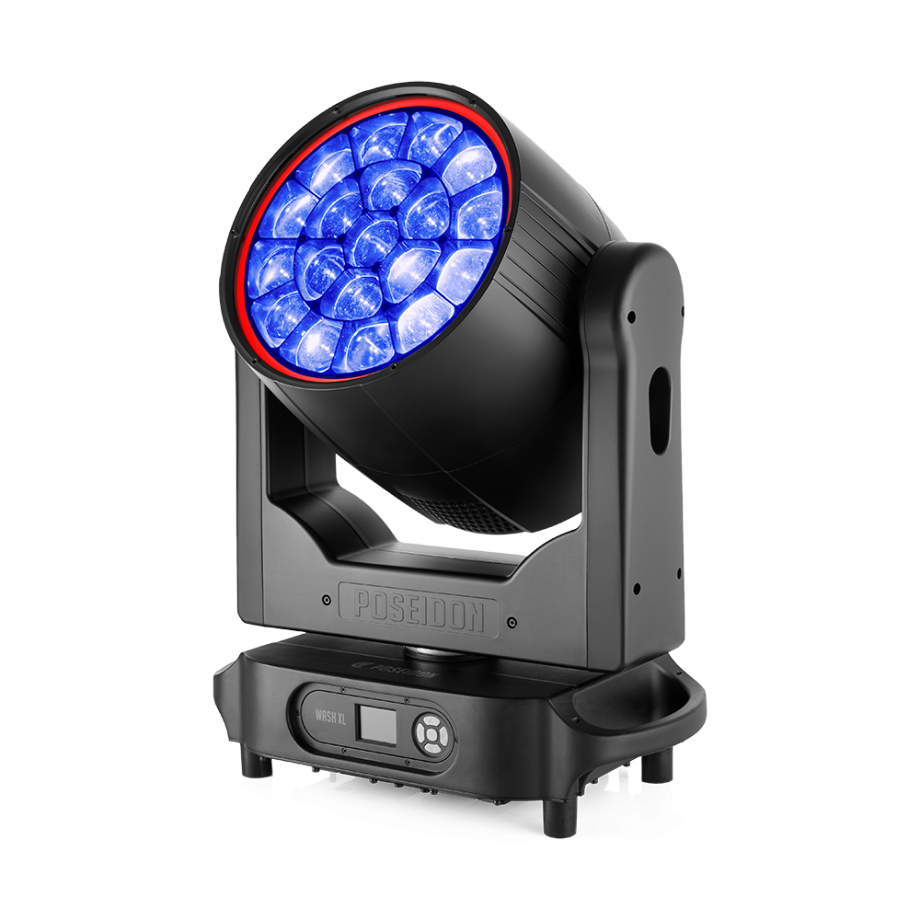

The Poseidon Wash XL is a powerful and versatile IP65 rated wash fixture, offering smooth projections, intense beams and unique eye-candy effects. Powered by 19, individually controllable RGBW LEDs, the fixture comes with a wide zoom, ranging from 4.5° to 60°. Protected against moisture and dirt, Poseidon Wash XL is a must-have fixture with a good value for money for any indoor or outdoor application.

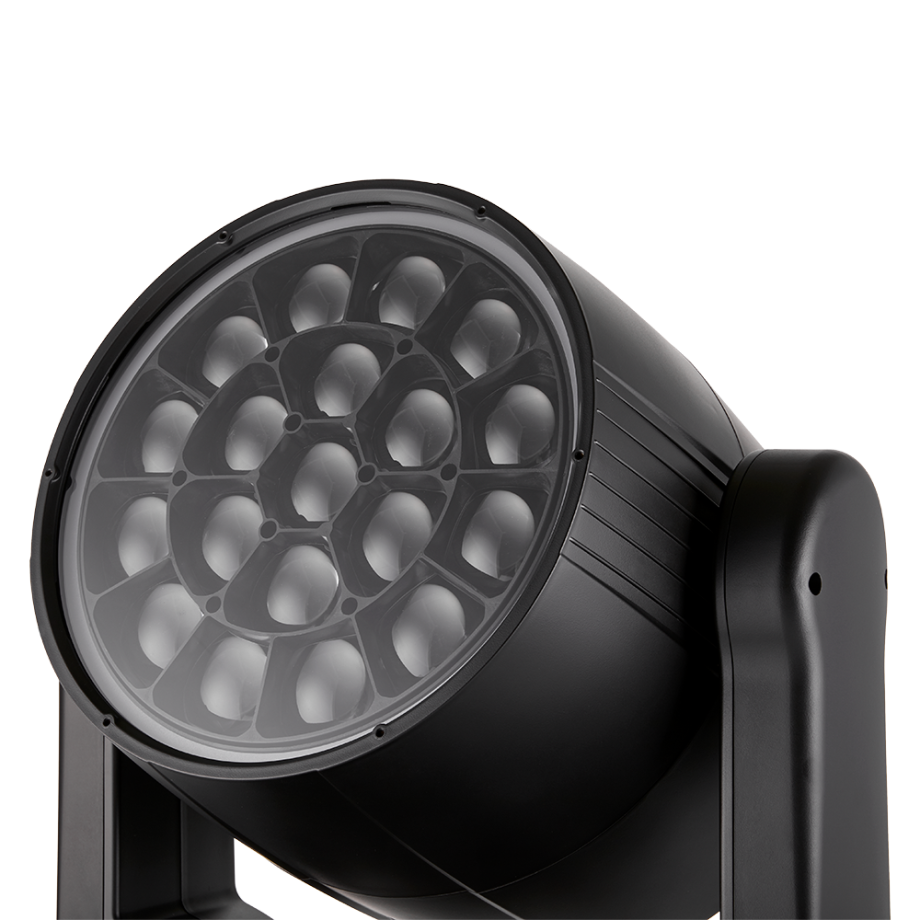

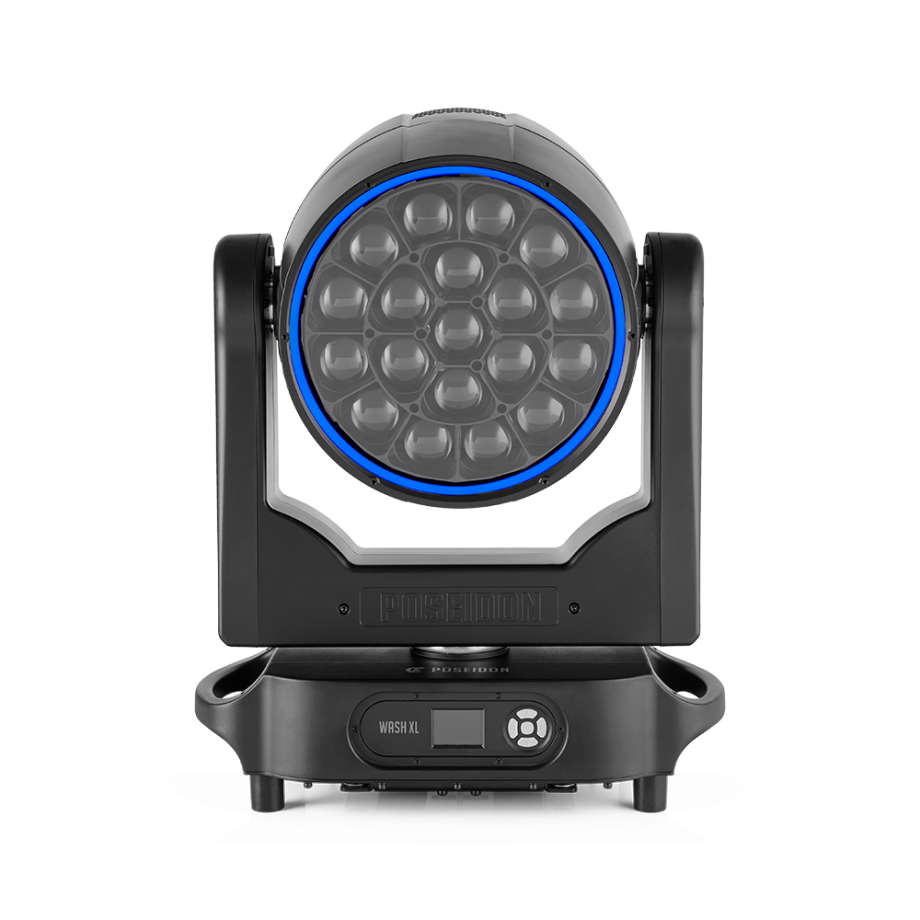

Some innovative features were implemented to complement the already outstanding wash characteristics. The rotatable front lens provides kaleidoscopic effects and an extra RGB LED ring can be used for stunning visual effects. All LEDs can be controlled manually, but the on-board macro engine can also be used to create complex effects easily. Use the beam mode for razor-sharp, pixelated beam effects.

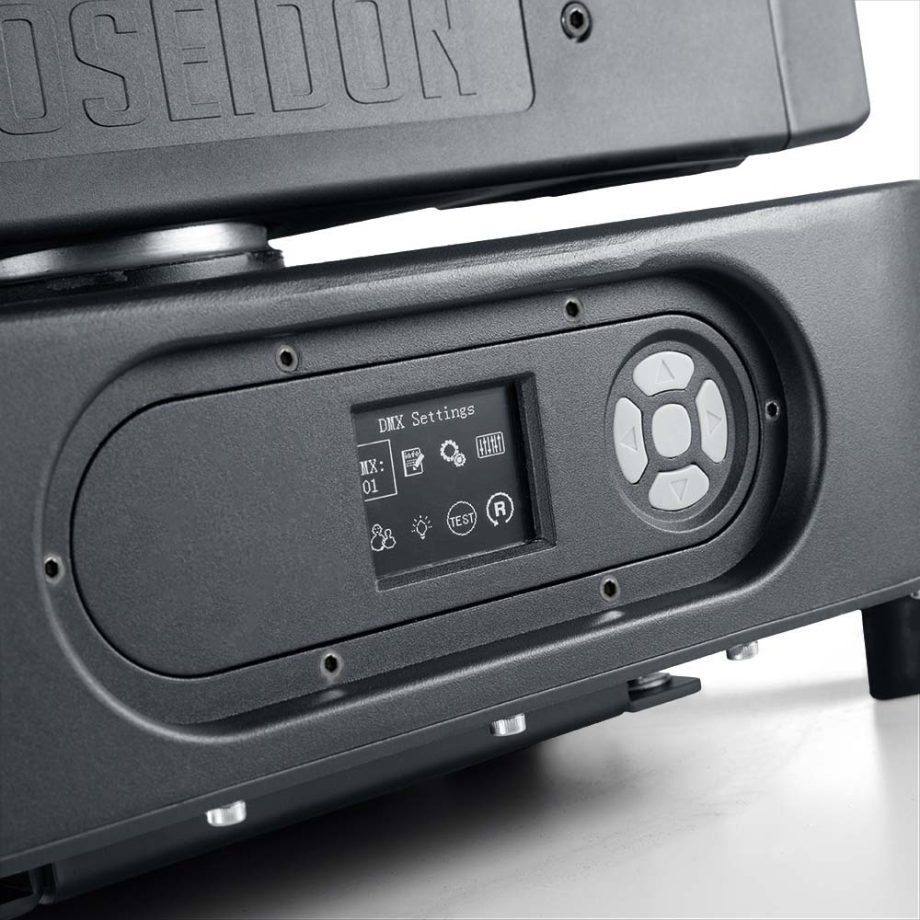

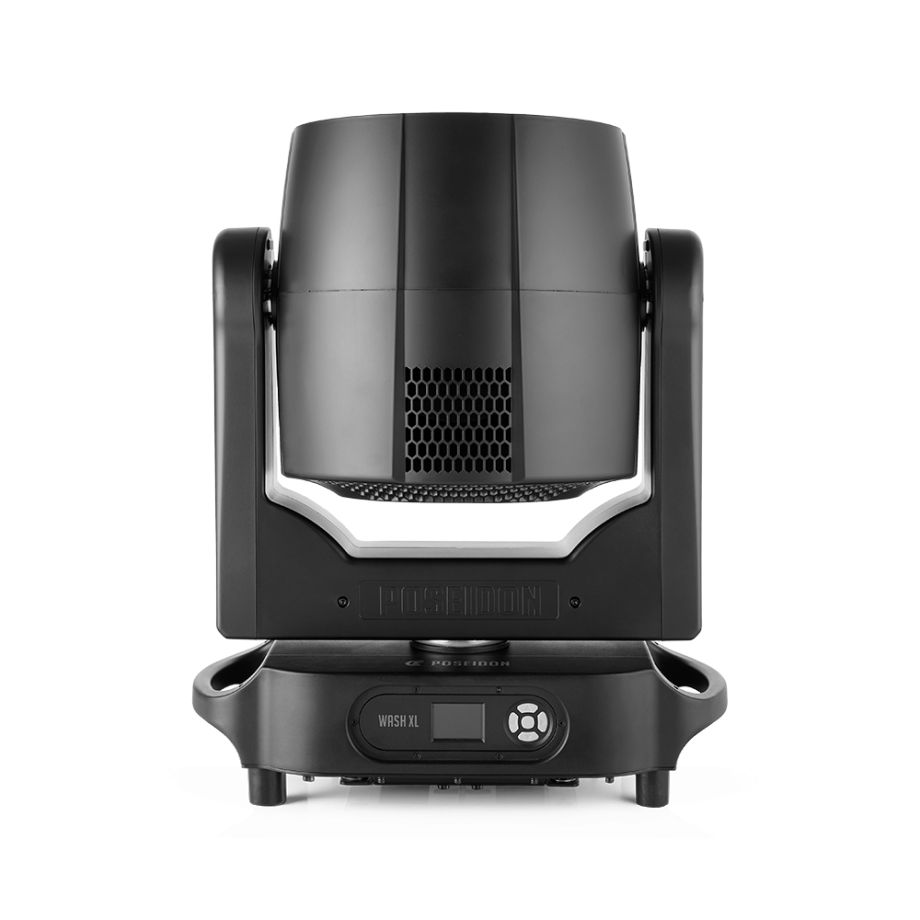

The elegantly shaped housing is equipped with special motors that enable unsurpassed fast and precise pan and tilt movements. Additionally, the sophisticated body eliminates dust in the optical path and is easy to service. A bright LCD display provides easy access to on-board settings, even in sunny environments.
| Power | |
| Input voltage | 100 – 240VAC, 50 / 60Hz |
| Standby power | 26W |
| Total power consumption | 800W |
| Typical current | 3.33A |
| Power plug type | Seetronic Powercon TRUE1 |
| … | |
| Source | |
| LED Color | RGBW |
| LED Color Temperature | 2500 ~ 10.000K |
| LED Quantity | 19 pcs |
| Dimming frequency | 600-10.000 Hz |
| … | |
| Optical | |
| Beam angle | 4.5°-60° |
| Lens | 360° infinite rotation |
| … | |
| Photometric | |
| Output @5M | 40039 lux |
| … | |
| Effects | |
| Color Mixing | RGBW |
| Main LEDs | RGBW, individually controllable |
| Ring | RGB, individually controllable |
| Effects | Intelligent macro engine |
| Zoom | 4.5°-60° |
| Shutter | Variable 0-100%, random & pulse |
| Dimmer | 0-100% linear, 16bit |
| Pan | 540°, 16 bit (2.11° / 2.5S) |
| Tilt | 215°, 16 bit (0.85° / 1.2S) |
| … | |
| Heat management | |
| Cooling type | Temperature controlled fans |
| Max. ambient temp. | Ta max=45°C |
| Min. ambient temp. | Ta min=-20°C |
| … | |
| Control | |
| Control protocol | USITT DMX512/1990 |
| DMX channels | 28, 41, 47, 100ch |
| RDM | Yes |
| WDMX | Yes |
| DMX Input | 5-pin |
| sACN | Optional (replaces WDMX) |
| … | |
| Hardware | |
| Interface | LCD Display |
| Software upload | DMX, via special box |
| … | |
| Installation | |
| Mounting orientation | Any |
| IP rating | IP65 |
| … | |
| Housing | |

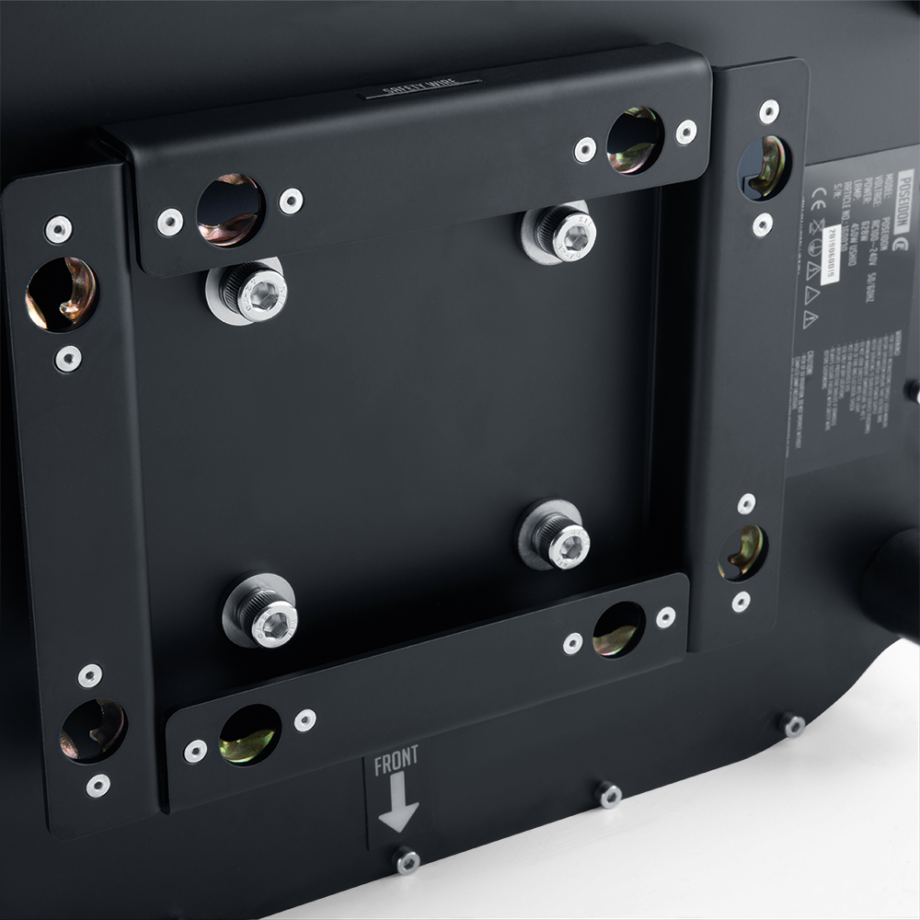

| Safety attachment point | Yes |
| Position lock | Tilt |
| … | |
| Physical | |
| Net product weight | 27,5kg |
| Length | 488mm |
| Width | 331mm |
| Height | 609mm |
| … | |
| Approvals | |
| Approved certifications | CE, RoHS |
| … | |
| Information | |
| Article number | 160035 |
| EAN | 8719189163247 |
| … | |
| Related | |
| Included items | Manual, Power cable |
| Optional | CLF Omega bracket |
Download attachments:
CLF Poseidon Wash XL Manual
