• 16-bit technology for high-resolution colours and dimming
  • Battery runtime options: MAX power,4,5,6,8,10,12 hours
  • 17.5° beam and 31,4° field angles without diffuser

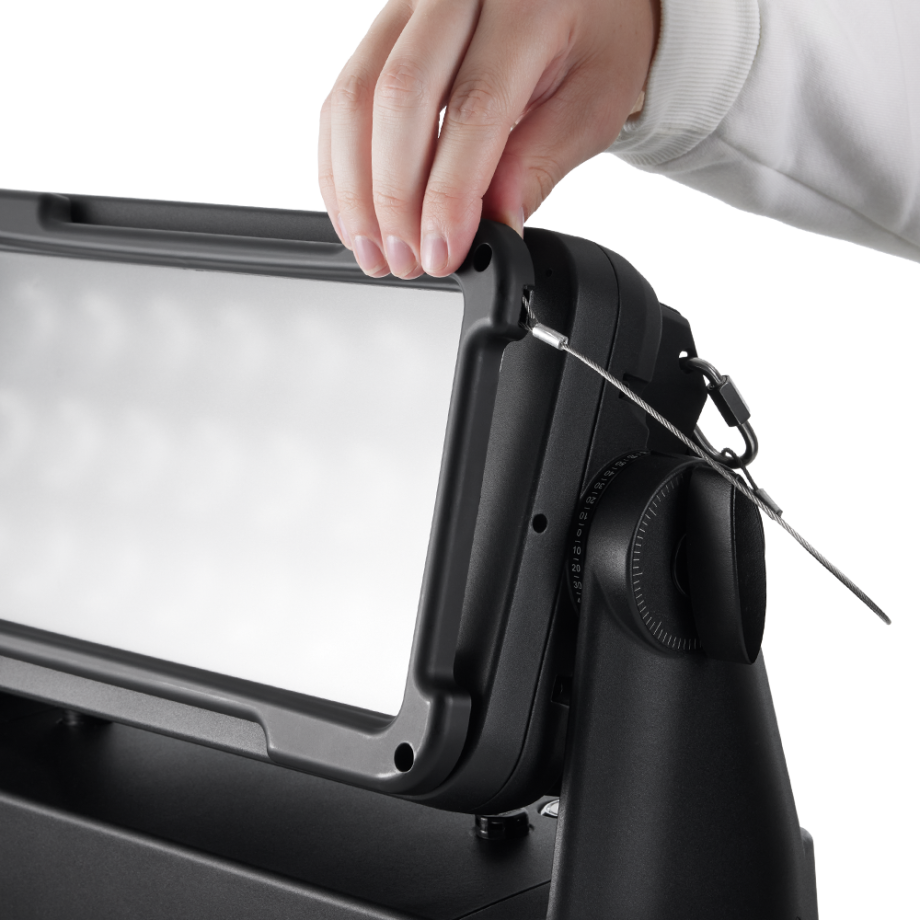

  • Magnetic smart filter system
  • Smart controlled fans for optimized low noise operation
  • W-DMX, RDM, Stand alone modes
  • IP 65 rating for dustproof and outdoor use
  • RGBL and RGBW DMX control mode

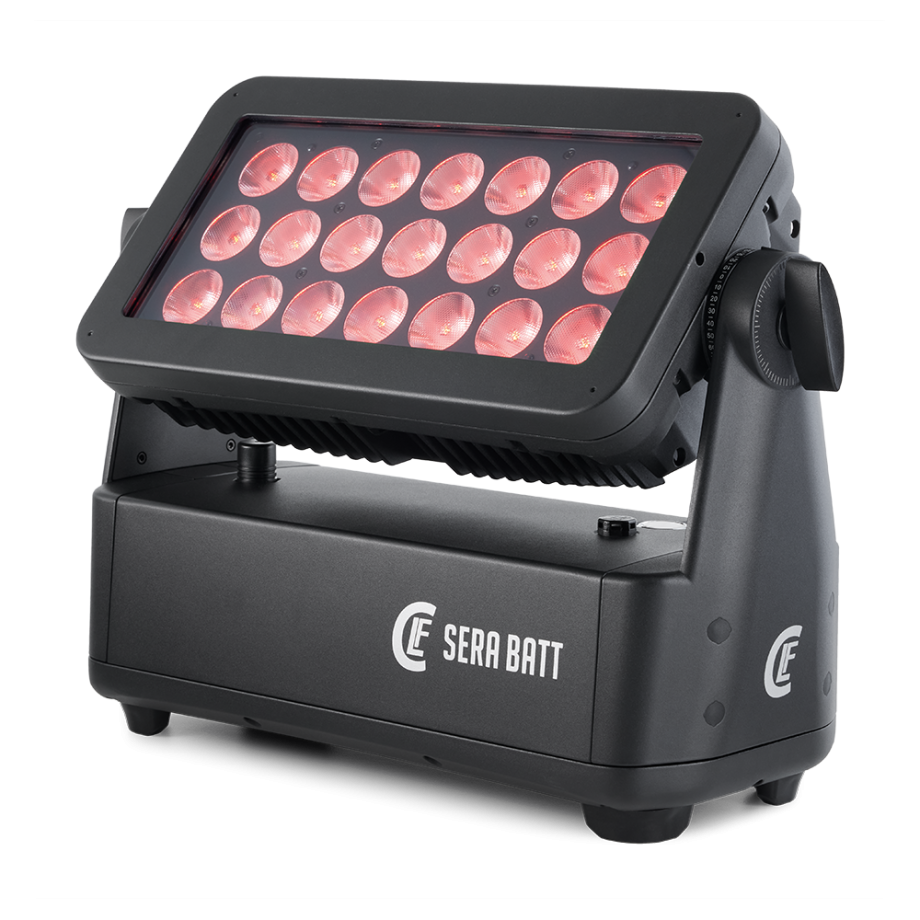

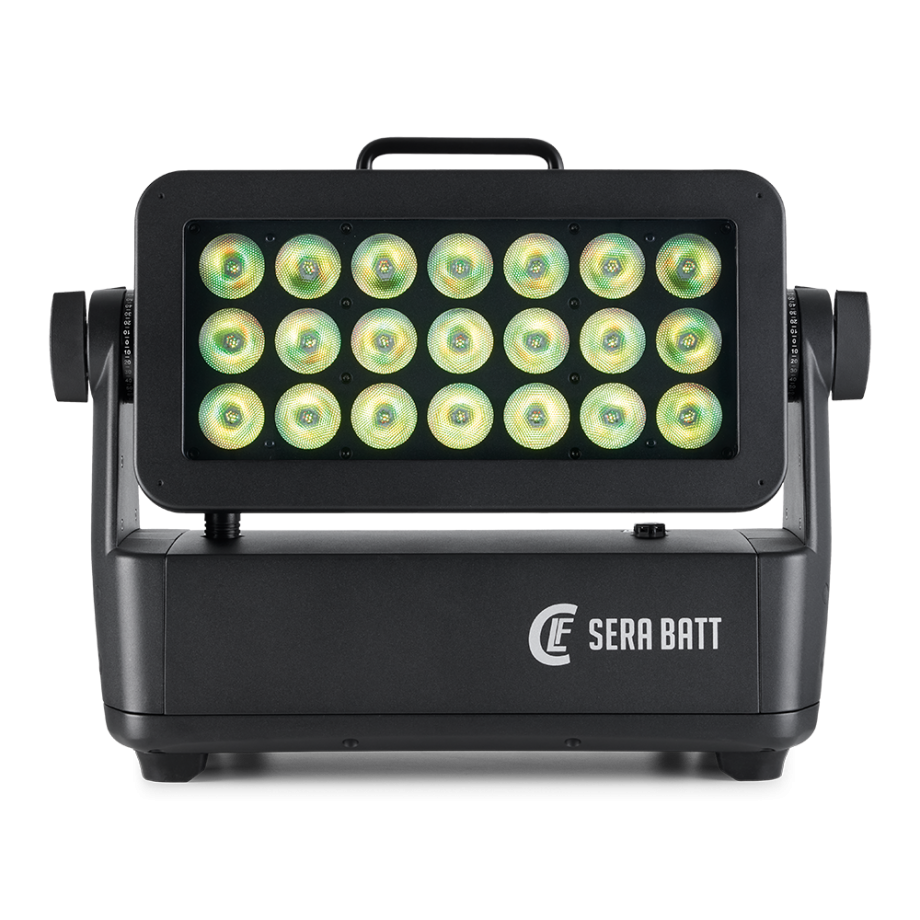

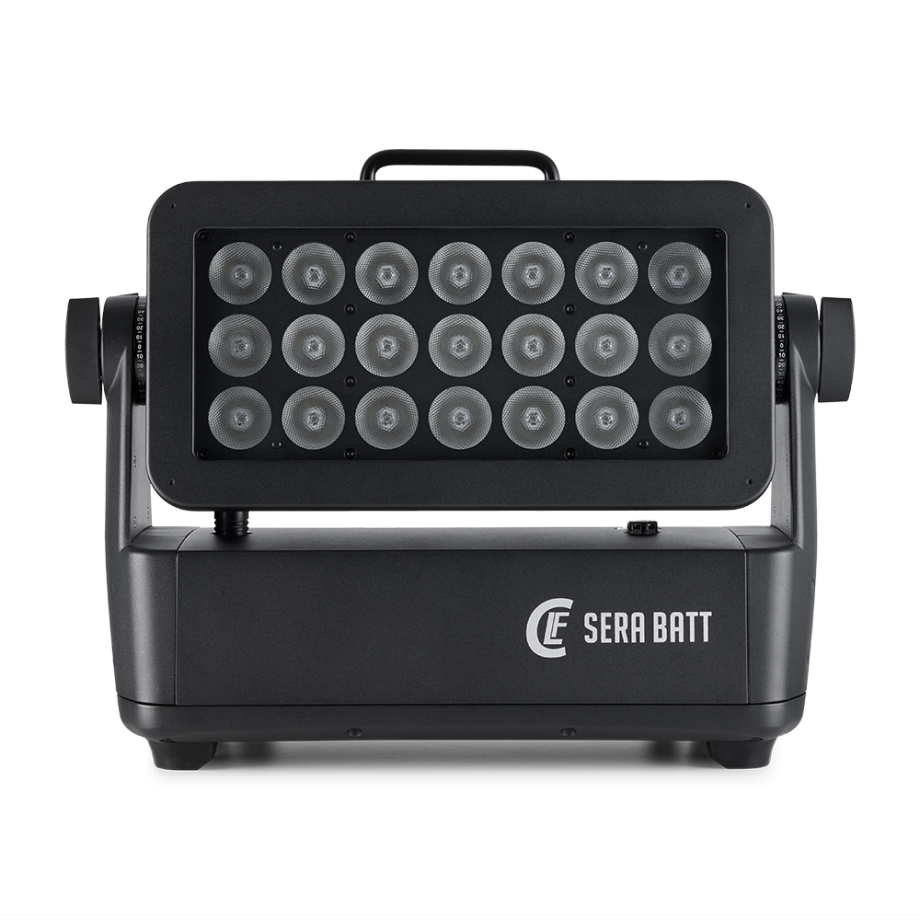

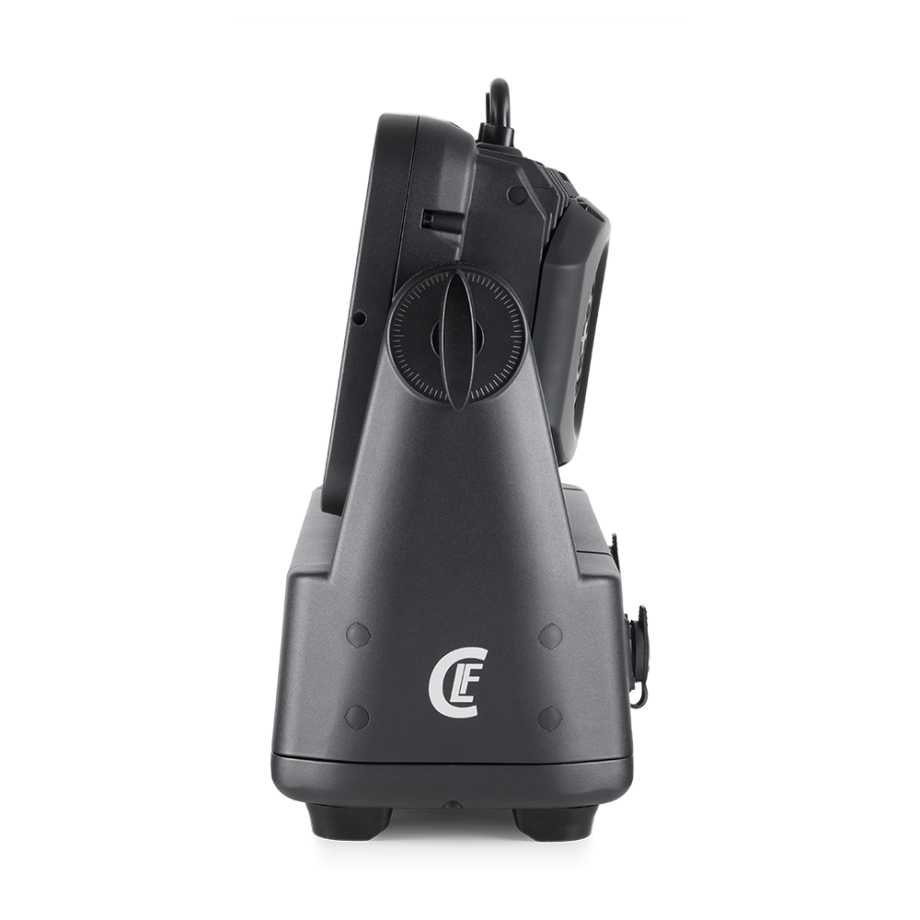

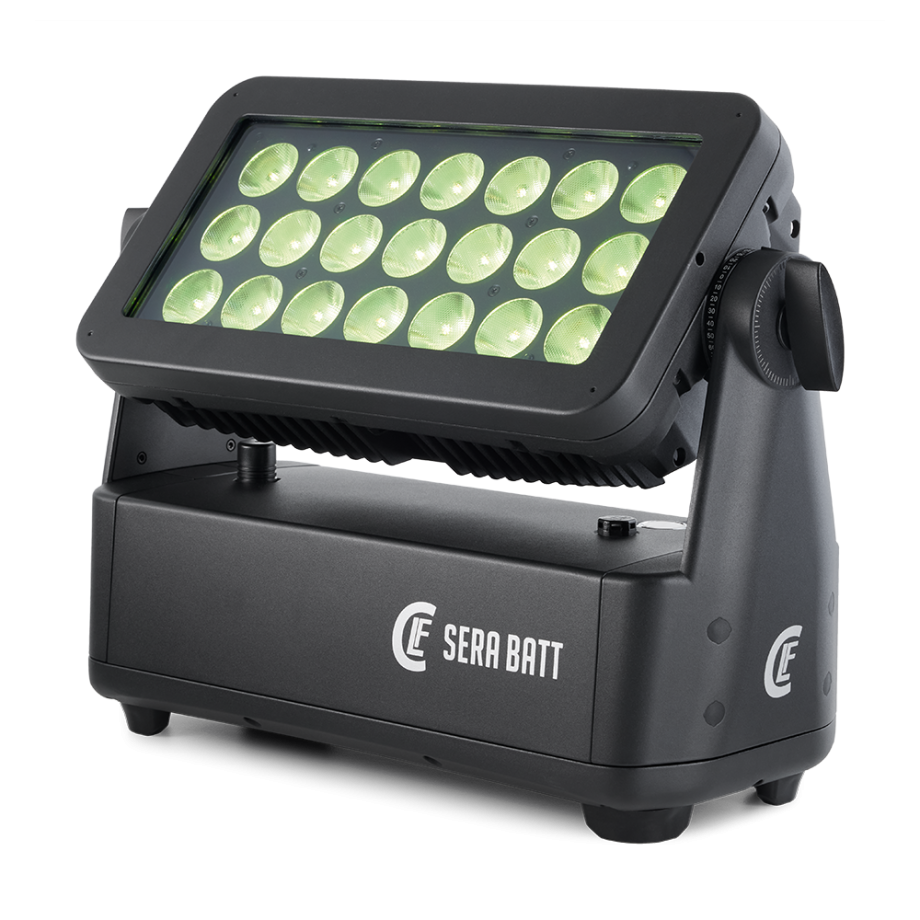

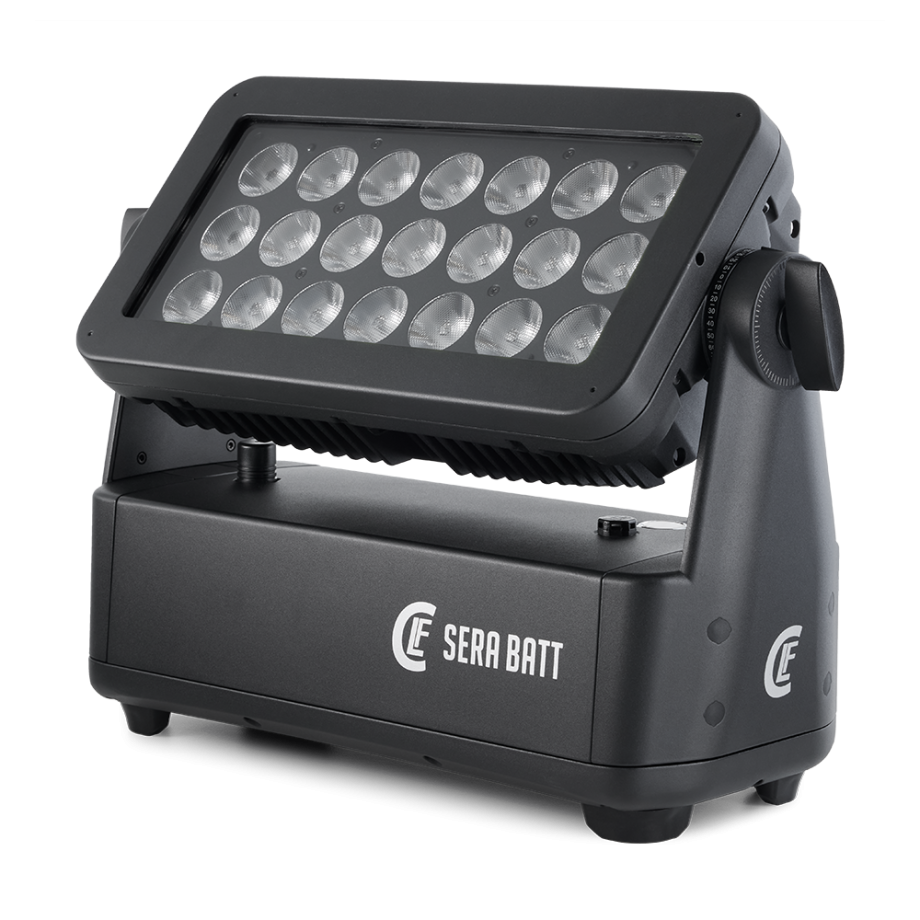

The CLF Sera BATT is an extremely powerful battery powered LED wash fixture which is perfect for illuminating large surfaces both in- and outdoor. Extreme brightness and an extraordinary even projection make the Sera BATT a true LED alternative for traditional wash lights. The array of 21 calibrated high power RGBL LEDs is divided in three individually controllable horizontal segments.

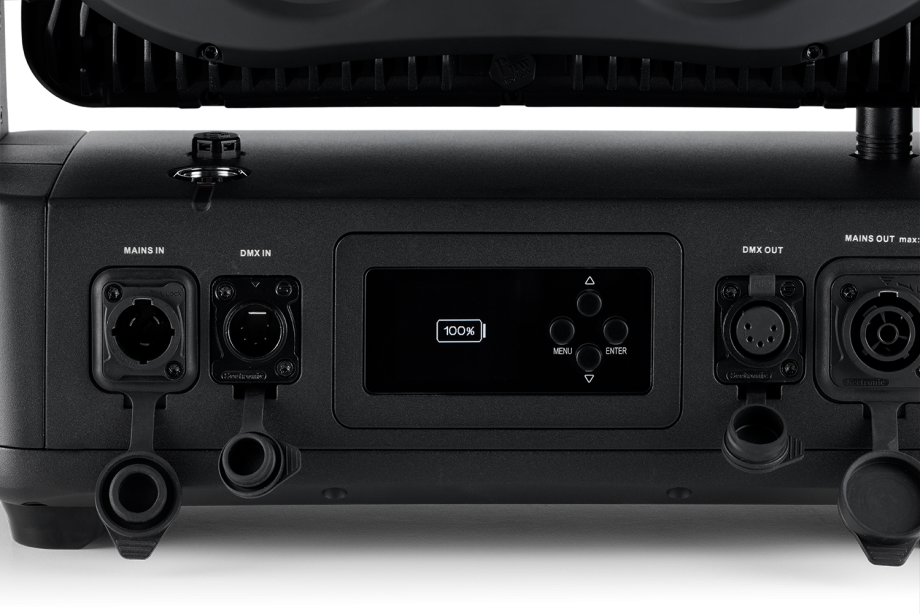

The Sera BATT is equipped with the latests battery technology. A Long-life super capacity lithium-ion battery ensures reliable operation. This technology together with the battery management system prevents over charging and exhaustive discharge.

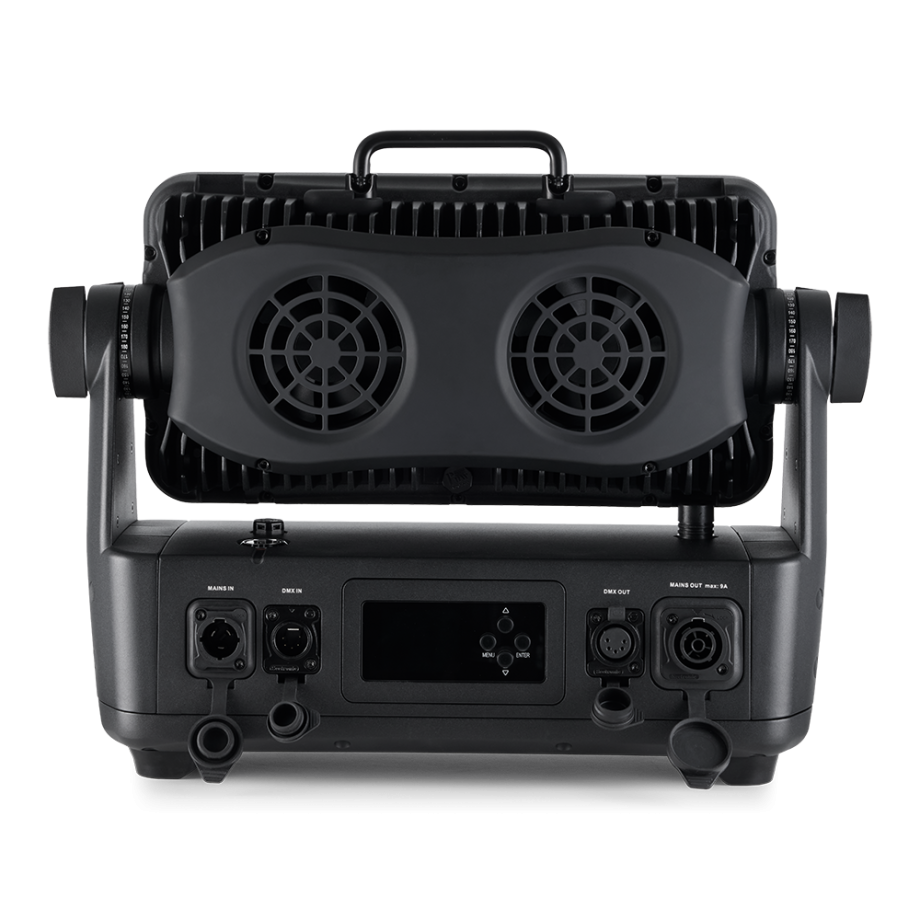

The Sera BATT is equipped with a punchy 17.5° beam angle, which can be easily adapted to other beam angles, even elliptical, by using the Magnetic Smart Filter System. The Sera BATT comes with an intelligent silent cooling system which provides extensive fancontrol and is especially useful for TV and theatre use. All in all, the Sera BATT is a versatile LED wash that can be used for many applications.

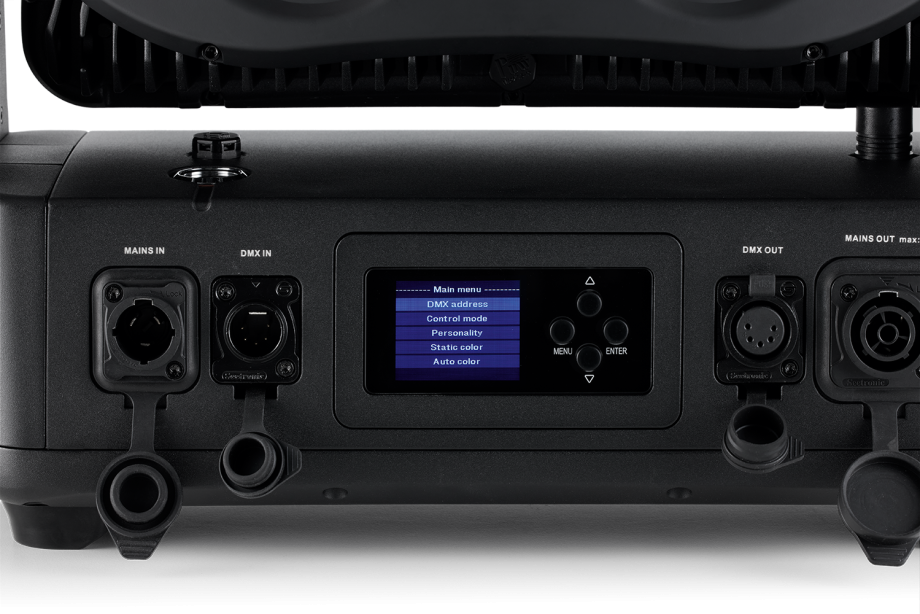

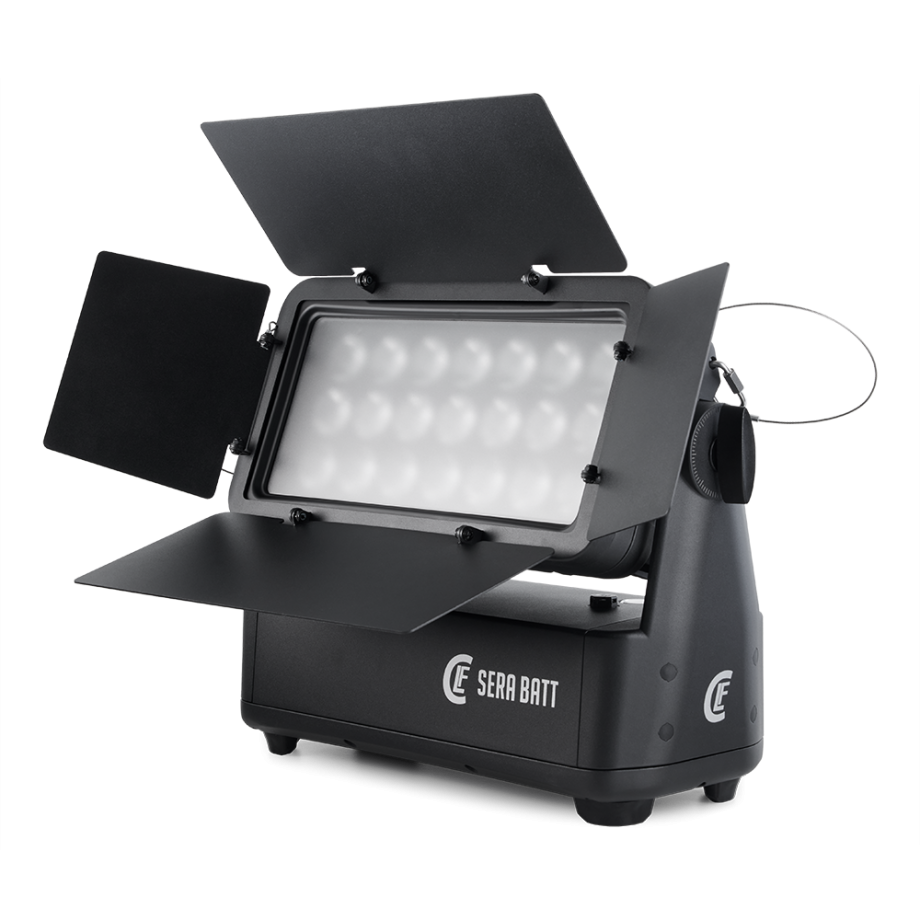

The CLF Sera BATT comes optional with a filterframe, barndoor and a Wireless Solution/Lumen W-DMX receiver on board, but can also be connected
with 5-pin XLR connectors and many sufisticated stand alone functions. Power is connected through a PowerCON TRUE1 connector.

LED configuration 21x RGBL high power calibrated LEDs
DMX channels 2 / 3 / 4 / 4 / 6 / 8 / 10 / 12 / 13 / 29 CH
Beam angle 17.5° beam and 31.4° field angles
Power consumption Max. 243 W
Power supply AC 100 – 240 V, 50-60 Hz
Cooling Smart controlled extreme silent fans
Max ambient temp TA max = 40°C
Min ambient temp TA max = -20°C
DMX connection W-DMX / DMX 5 pin (3 pin optional)
Dimensions 418 x 157 x 301 (lxwxh)
Weight (without accessories) 10.8 kg
Certification CE, ROHS, RED, FCC, UKCA
Item number 160102
EAN 8719189163087
Optional accessories Omega bracket, magnetic smart filter system, barndoor, flightcase
IP rating IP65
Included items Power cable, manual
