Description

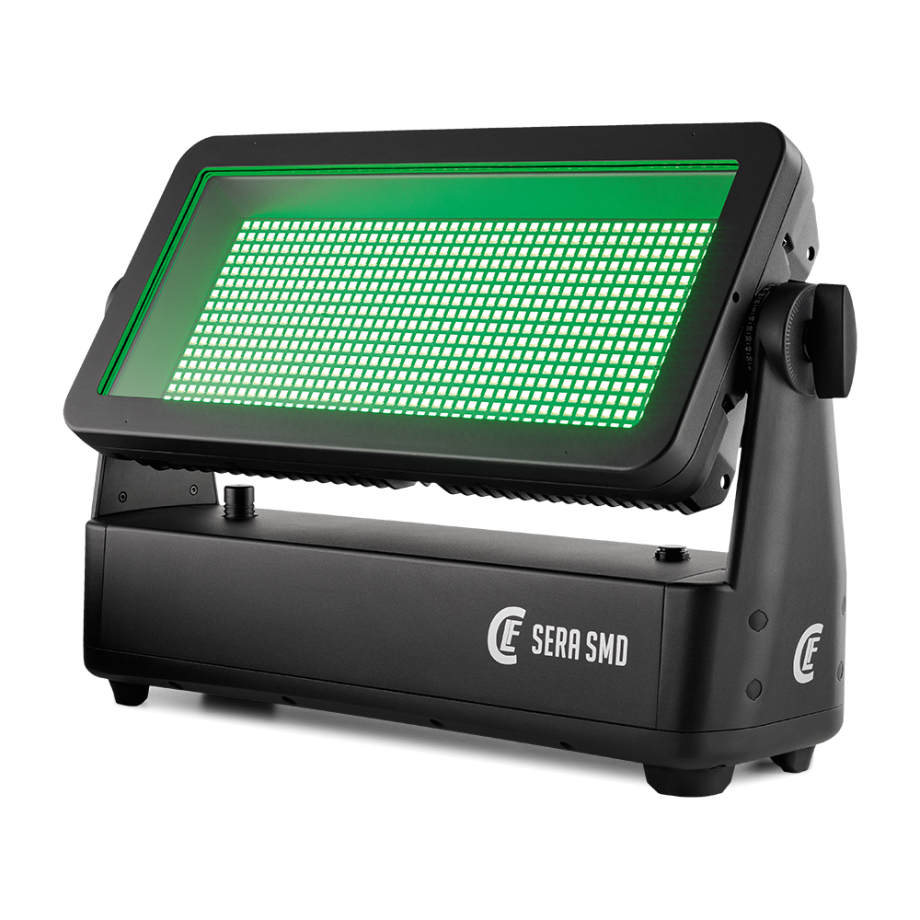

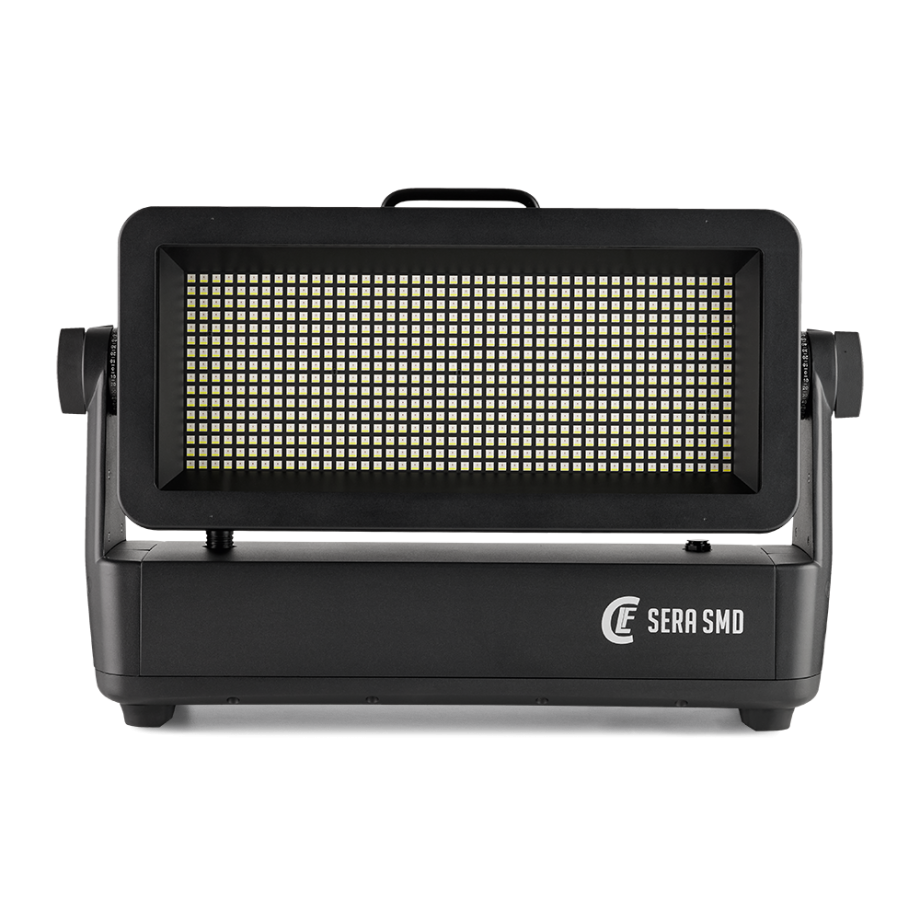

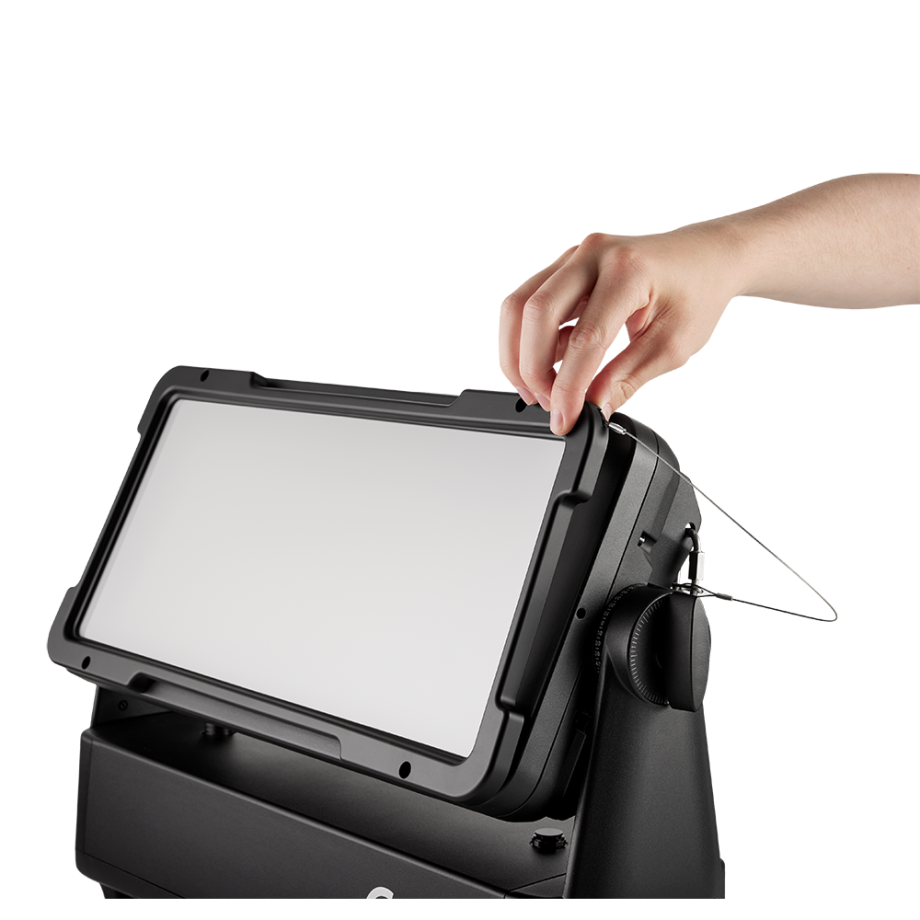

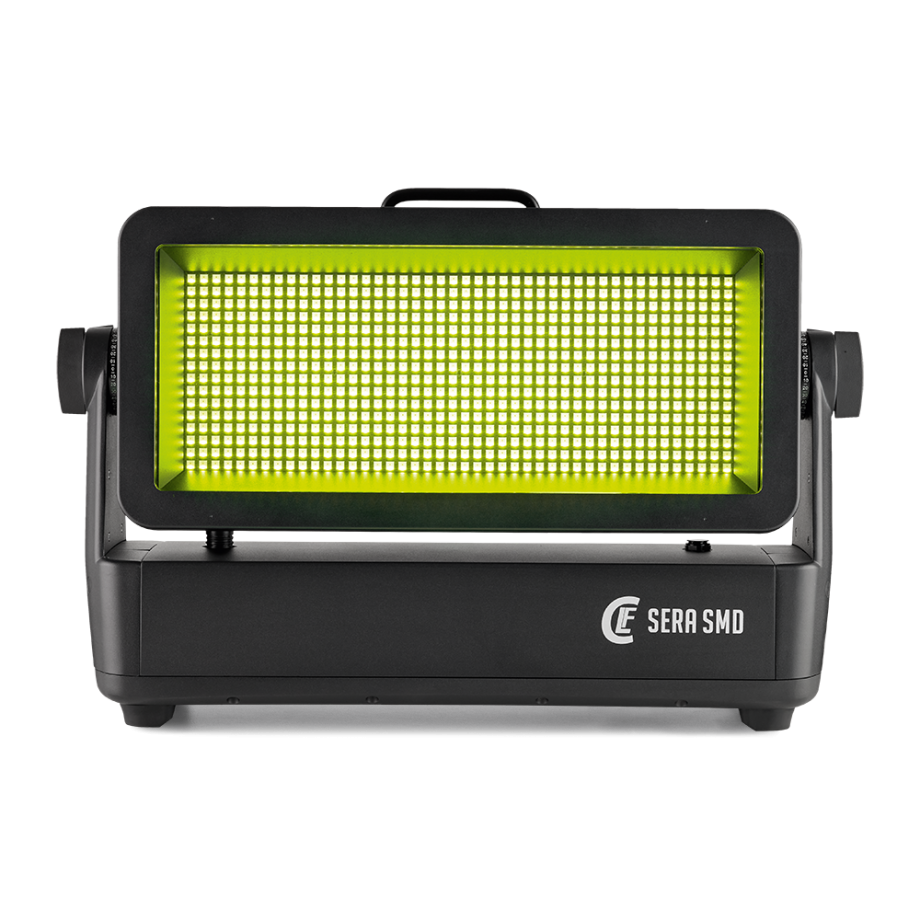

The CLF Sera SMD is a highly powerful LED wash light designed for both indoor and outdoor use, ideal for lighting up large areas. Its extreme brightness and exceptionally even light distribution make it a solid LED replacement for traditional wash lights. The fixture features 704 calibrated high-power RGBL LEDs, divided into 8 individually controllable LED segments. With an extreme wide 144° beam angle, the Sera SMD can easily adapt to different beam angles, including elliptical, thanks to the Magnetic Smart Filter System. It also includes an intelligent, silent cooling system with adjustable fan control, perfect for TV studios and theater settings. Versatile and robust, the Sera SMD offers optional accessories like a filter frame, barndoor, and a built-in CRMX wireless receiver. It can also be connected via 5-pin XLR connectors and features a range of sophisticated stand-alone functions. Power is supplied through a PowerCON TRUE1 connector.
| LED configuration | 704x RGBL Leds |
| DMX channels | 2 / 4 / 6 / 11 / 16 / 21 / 37CH |
| Beam angle | 144° beam and 102° field angles |
| Power consumption | Max. 2478 W |
| Power supply | AC 100 – 240 V, 50-60 Hz |

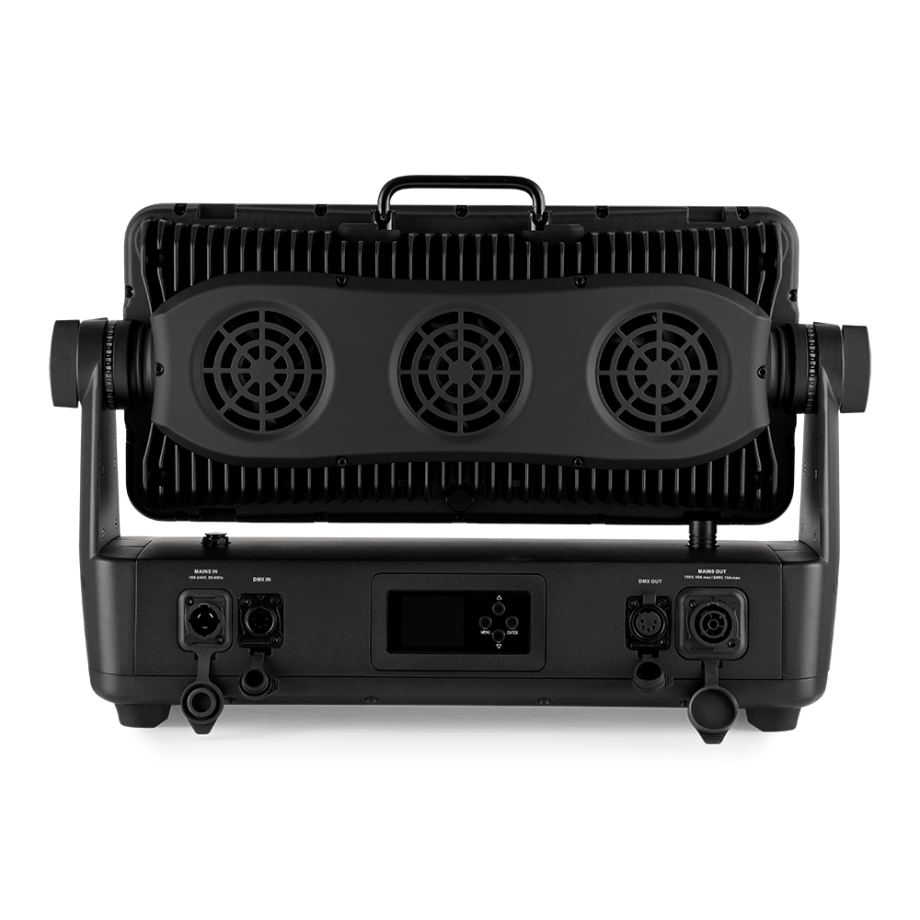

| Cooling | Smart controlled fans |
| Max ambient temp | TA Max = 40°C |
| Min ambient temp | TA Min = -20°C |

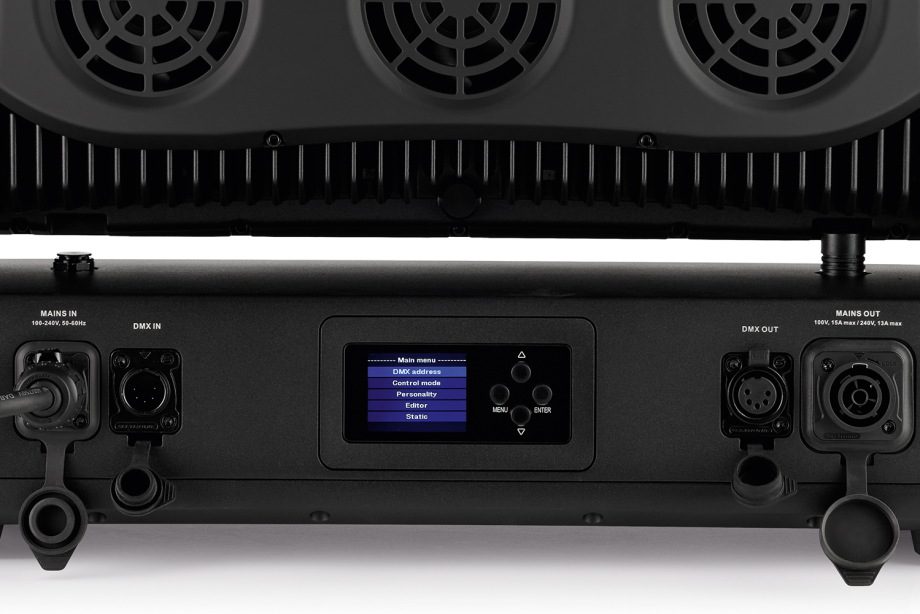

| DMX connection | W-DMX / DMX 5 pin (3 pin optional) |
| Dimensions | 534 x 157 x 336 (lxwxh) |
| Weight (without accessories) | 13,4 kg |
| Certification | CE, ROHS, RED, FCC, UKCA |
| Item number | 160106 |
| EAN | 8719189163100 |

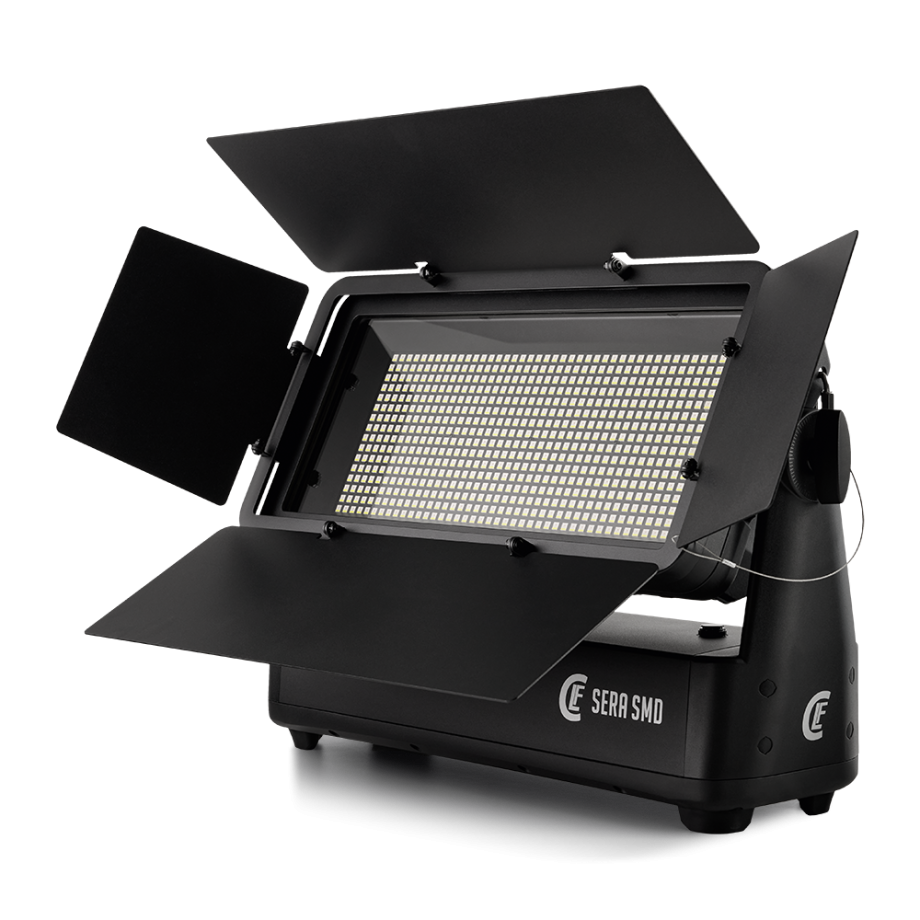

| Optional accessories | Omega bracket, magnetic smart filter system, barndoor, flightcase |
| IP rating | IP65 |
| Included items | Power cable, manual |
