Description

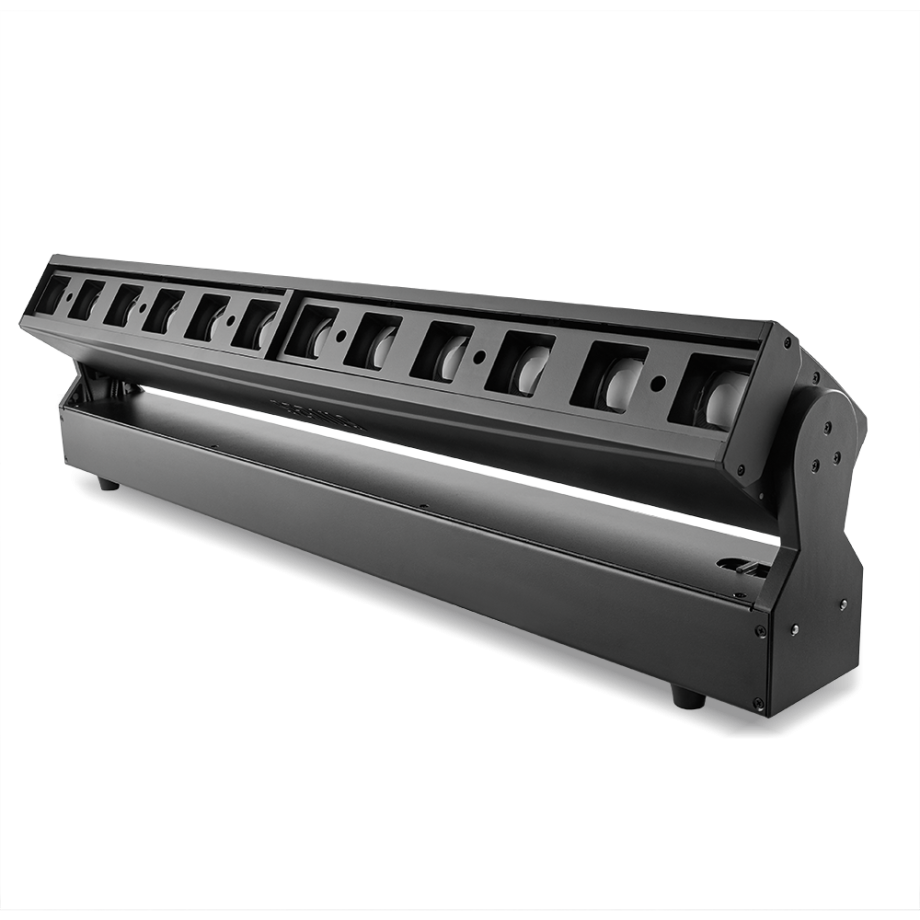

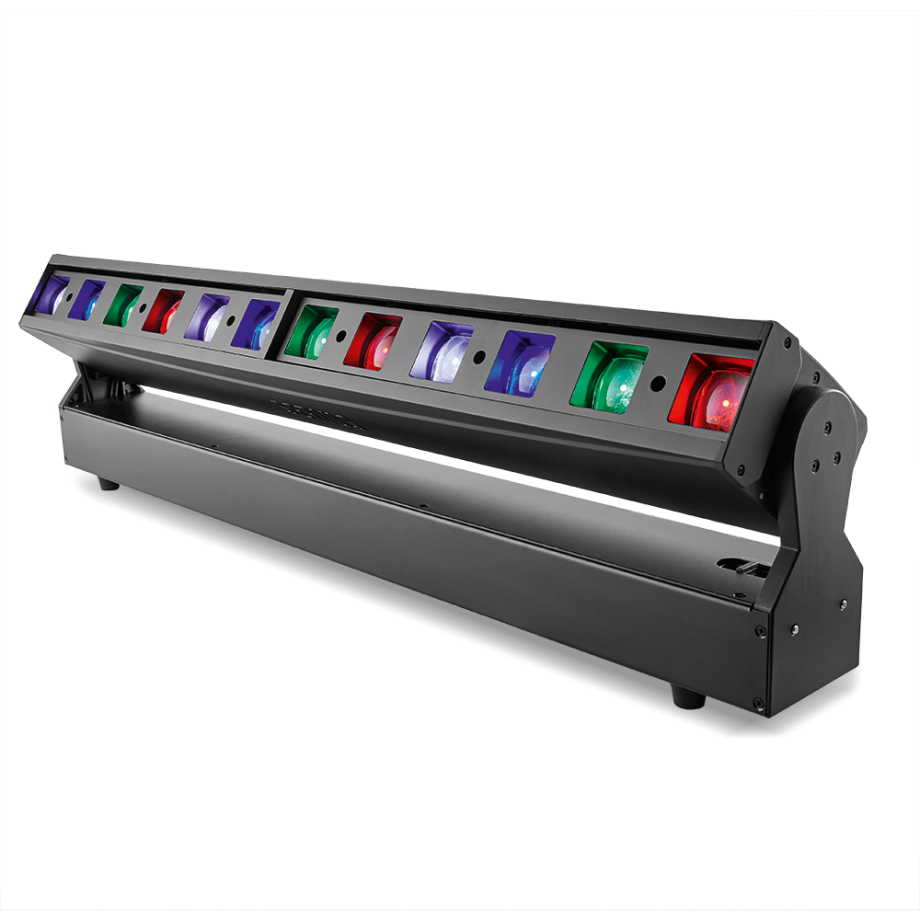

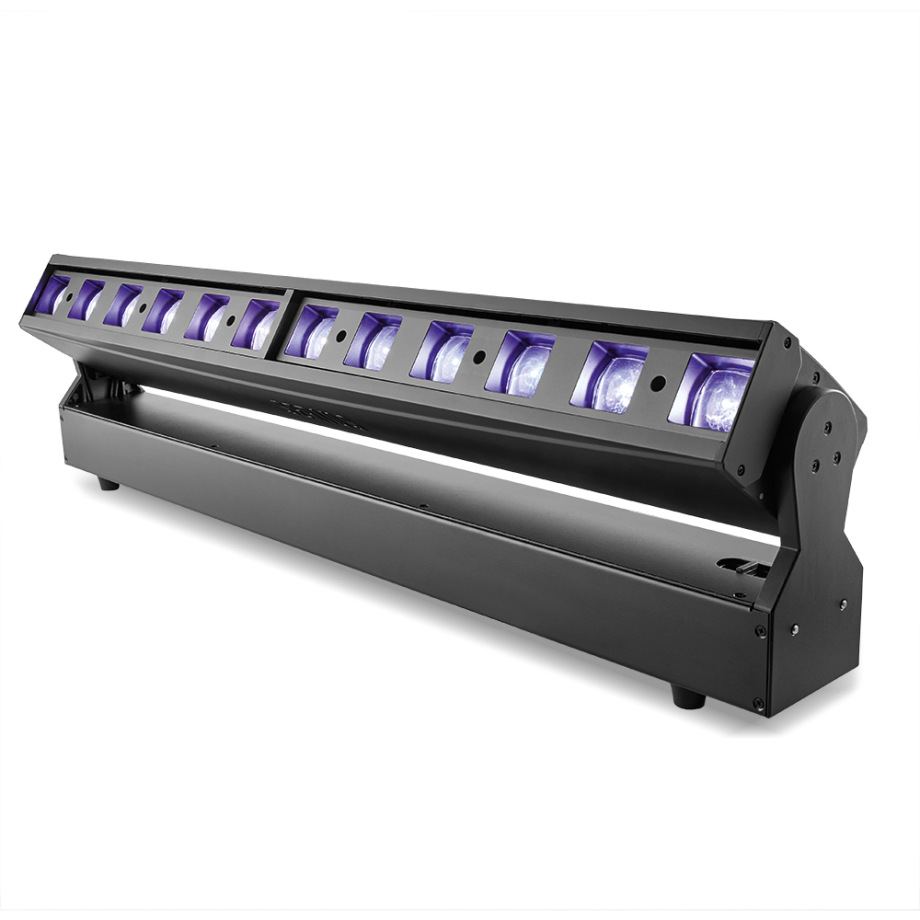

CLF Serius is a moving LED bar with a length of 1 meter. It comes with 12 x 30W high power RGBW LEDs which can be controlled individually. The zoom range of the Serius is divided in two segments which can be moved independently from 3,5° to 38°.
The shape of the CLF Serius makes sure that the LEDs will have even spacing when multiple fixtures are combined. This creates a seamless light curtain. The bar can be tilted precisely and smoothly by 220°.
| Power | |
| Input voltage | 100 – 240 VAC, 50/60HZ |
| Standby power | 31W |
| Total power consumption | 450W |
| Typical current | 1.9A |
| COS φ | |
| Power plug type | Seetronic Powercon TRUE |
| … | |
| Configuration | |
| LED color | RGBW |
| Quantity of LED | 12 |
| Dimming frequency | |
| Dimmer resolution | 16 bit |
| Optical | |
| Beam angle | 3.5° – 38° |
| Zoom range | 1:11 |
| … | |
| Photometric | |
| Output @5M | 275225 Lux @ 3.5° |
| Output @10M | 11009 Lux @ 3.5° |
| … | |
| Effects | |
| Dimmer | 0-100% |
| Tilt | 220° |
| Shutter | 0.5 – 9 times / second, random |
| Zoom | 1:11 |
| Color | RGBW |
| … | |
| Hardware | |
| Interface | OLED display with backup battery |
| Software upload method | Via DMX input |
| … | |
| Heat management | |
| Cooling type | Regulated Fans |
| Max. ambient temp. | Ta max=40°C |
| Min. ambient temp. | Ta min=-0°C |
| Max. surface temp. | 65° |
| … | |
| Control | |
| Control protocol | Art-Net, DMX512, RDM |
| DMX channels | 14 & 57 |
| RDM | Yes |
| RDM Compliance | USITT DMX512-A |
| DMX input connection | 3-PIN and 5-PIN XLR |
| … | |
| Installation | |
| IP rating | IP22 |
| Orientation | Any |
| … | |
| Housing | |
| Safety attachement point | Yes |
| Lock | Tilt lock |
| … | |
| Physical | |
| Net product weight | 17KG |
| Length | 1000mm |
| Depth | 113mm |
| Height | 278mm |
| … | |
| Accessories | |
| Included items | Manual, Power cable, 2 x Omega bracket |
| … | |
| Approvals | |
| Approved certifications | CE and RoHS |
| … | |
| Information | |
| Article number | 156650 |
| EAN code | 8719189163902 |
