• Impressive output
  • 5700K cold white LEDs
  • Touring-ready, compact housing
  • PowerCON TRUE in and out
  • XLR3 and XLR5 pin
  • 9° beam angle

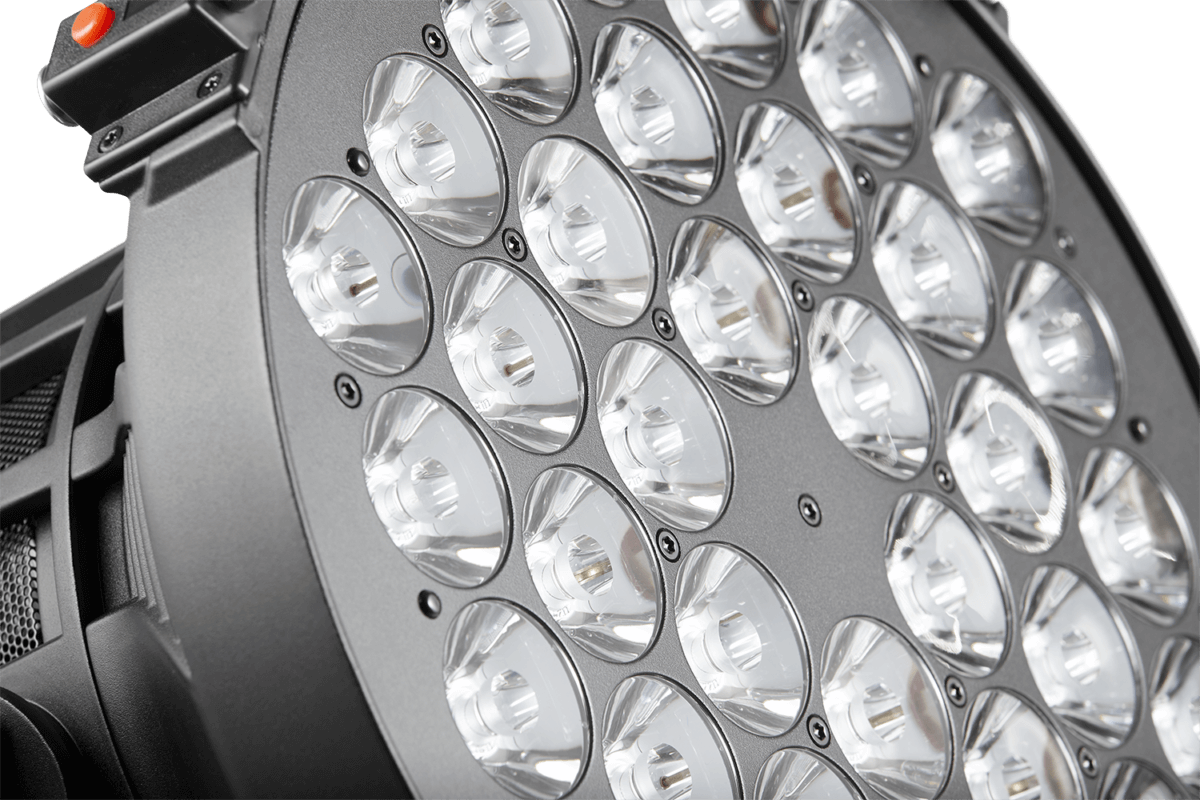

Designed for car shows and exhibitions or any other large scale venue, the Spectrum P1 Daylight is equipped with 36 high performance LEDs. Impressive output and a punchy 9° beam angle are ideal ingredients for long throw projection. Specially selected CREE LEDs provide a color temperature of 5700K at high CRI levels. HD dimming and flicker-free operation are also part of the feature set.

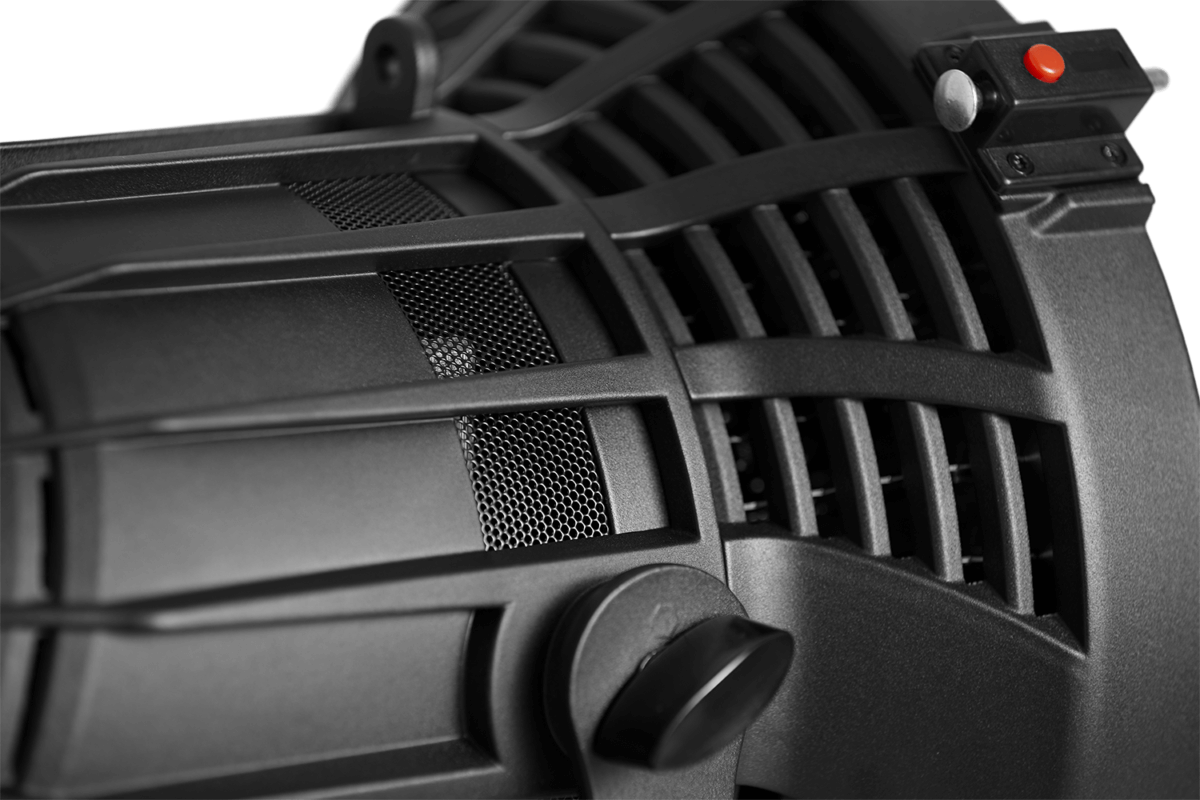

A unique single bracket design provides both standing and hanging opportunities and the LCD display offers easy access to the manual settings and manual control. The touring-ready housing takes care of a significant amount of convection cooling, whereas the intelligent, regulated fan ensures silent operation. Data and power can be connected through the 3 and 5 pin locking XLR and PowerCON TRUE1 connectors.

Input Voltage & Rate 100-240V, 50/60Hz
Standby power 11W
Nominal Total Power Consumption
(at Nominal voltage 230V)
Typical Current (at Nominal voltage 230V) 1.99A
Cos φ 0,968
Power Plug Type Seetronic PowerCON True
LED Color White
LED Color Temperature 5700 K
LED CRI level >90
Quantity of LED 36 pc
Dimming frequency 600/1200/2400/4800
Dimmer resolution 16bit
Beam angle
Output @1M
Output @5M
Cooling type: Passive cooling
MAX. Ambient temp (Ta max) 40 °C
MIN. Ambient temp (Ta min) 25 °C
MAX housing temp.(ta=25℃)
MAX housing temp.(ta=40℃)
AUTO program No
Static Color Yes
Manual Calibration No
Factory calibration No
Strobe speed 0 – 20Hz
Random strobe Yes
Control Protocol USITT DMX512/1990
DMX Channel Range 1 / 2
RDM compliance ANSI/ESTA E.120
DMX input connection DMX 3 and 5 pin in & out
Data input  (artnet, SACN) No
Interface Backlite LCD display
Software upload method XLR
Location Indoor
IP rating IP20
Net product weight 5.7 kg
Machine Dimensions – Length 278 mm
Machine Dimensions – Width 278 mm
Machine Dimensions – Height 346 mm
Included items Power cable
Approved certifications CE, RoHS

CLF Spectrum P1 DL
