Description

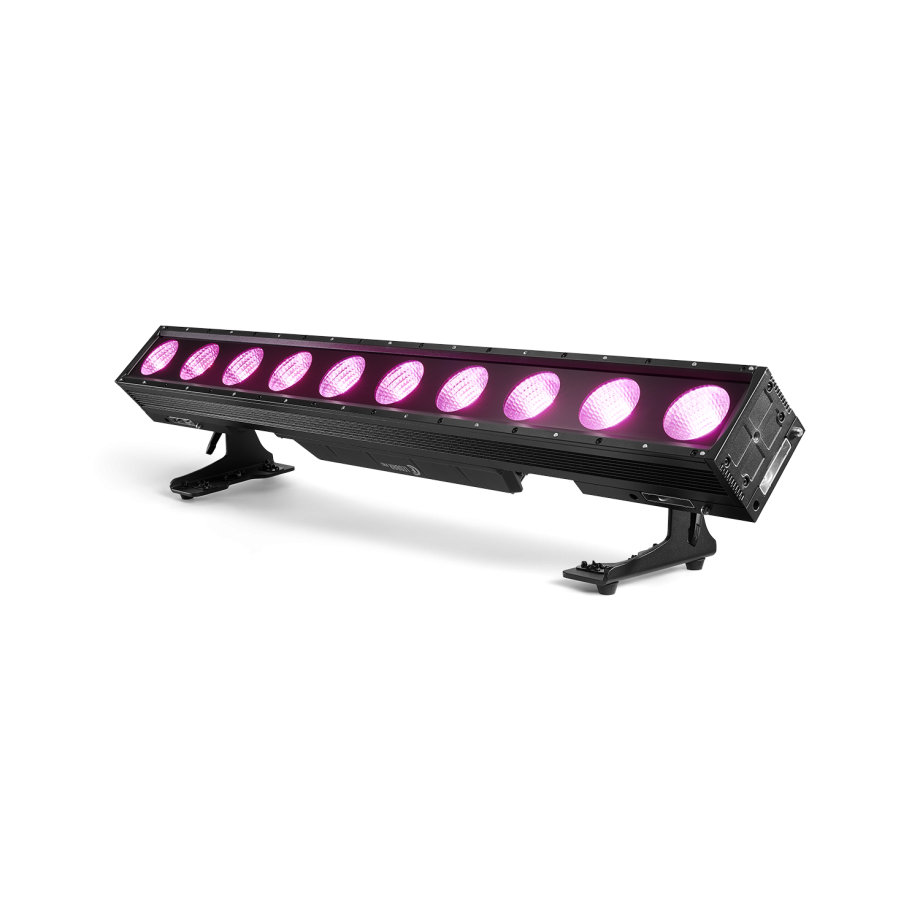

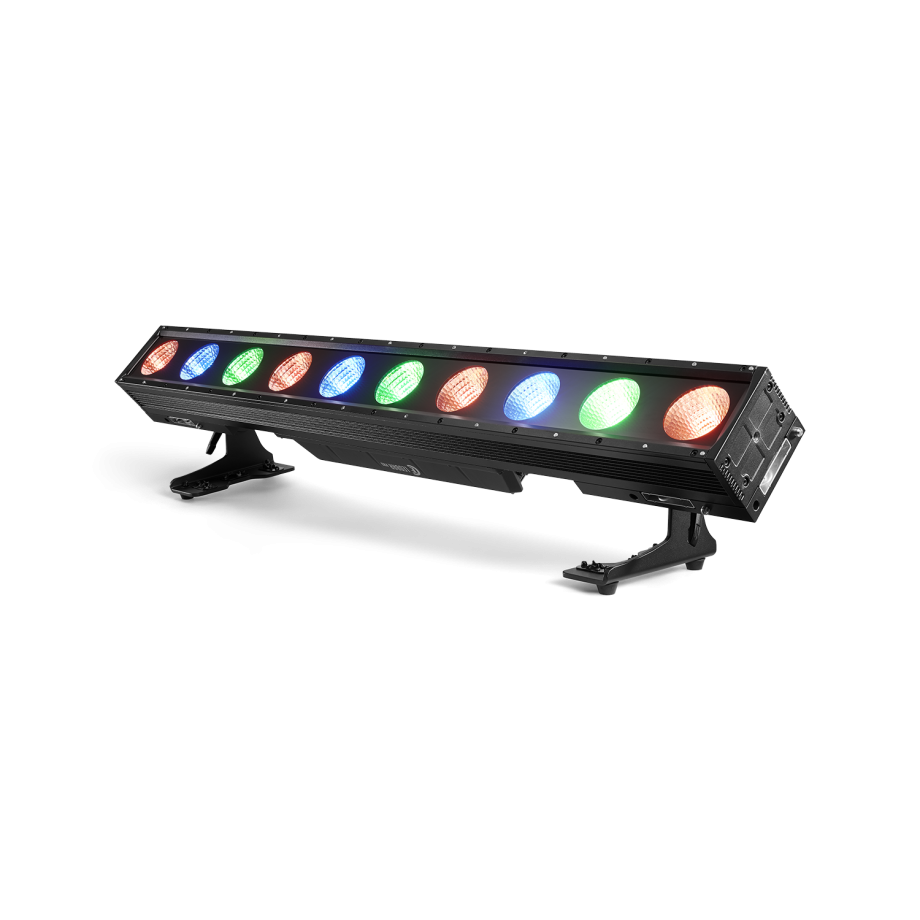

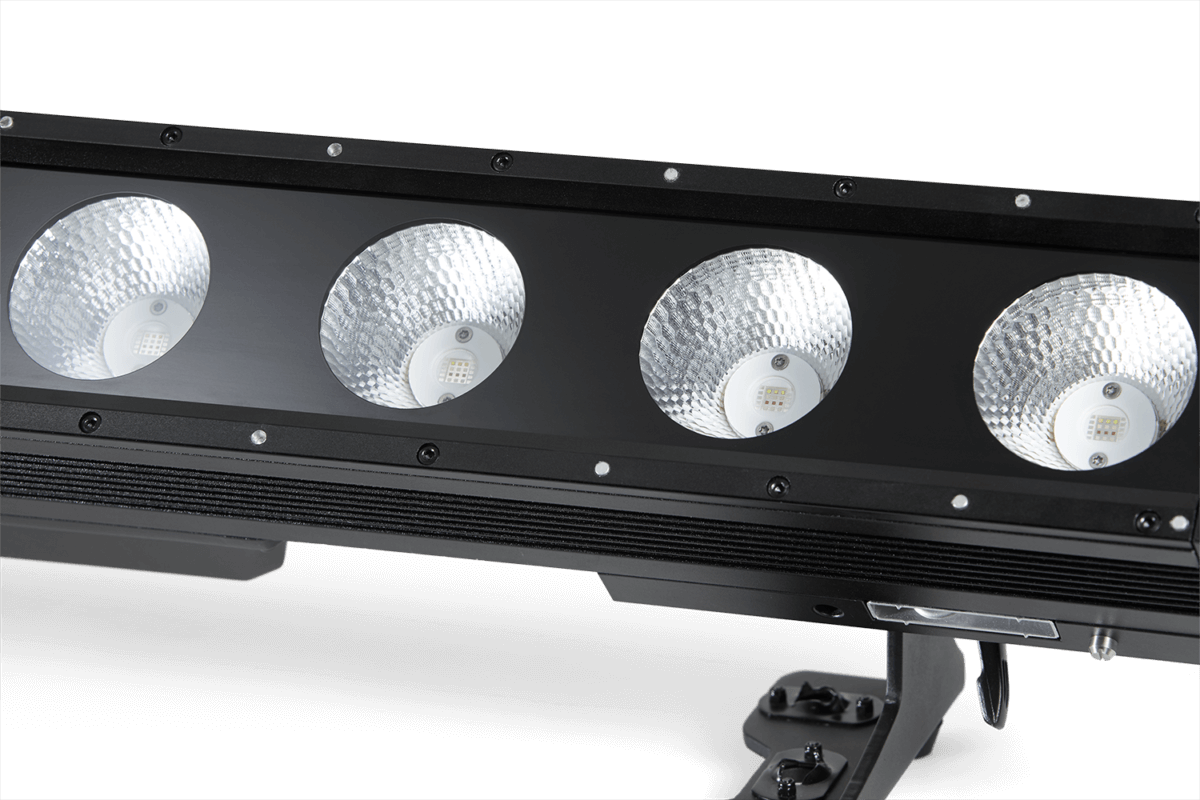

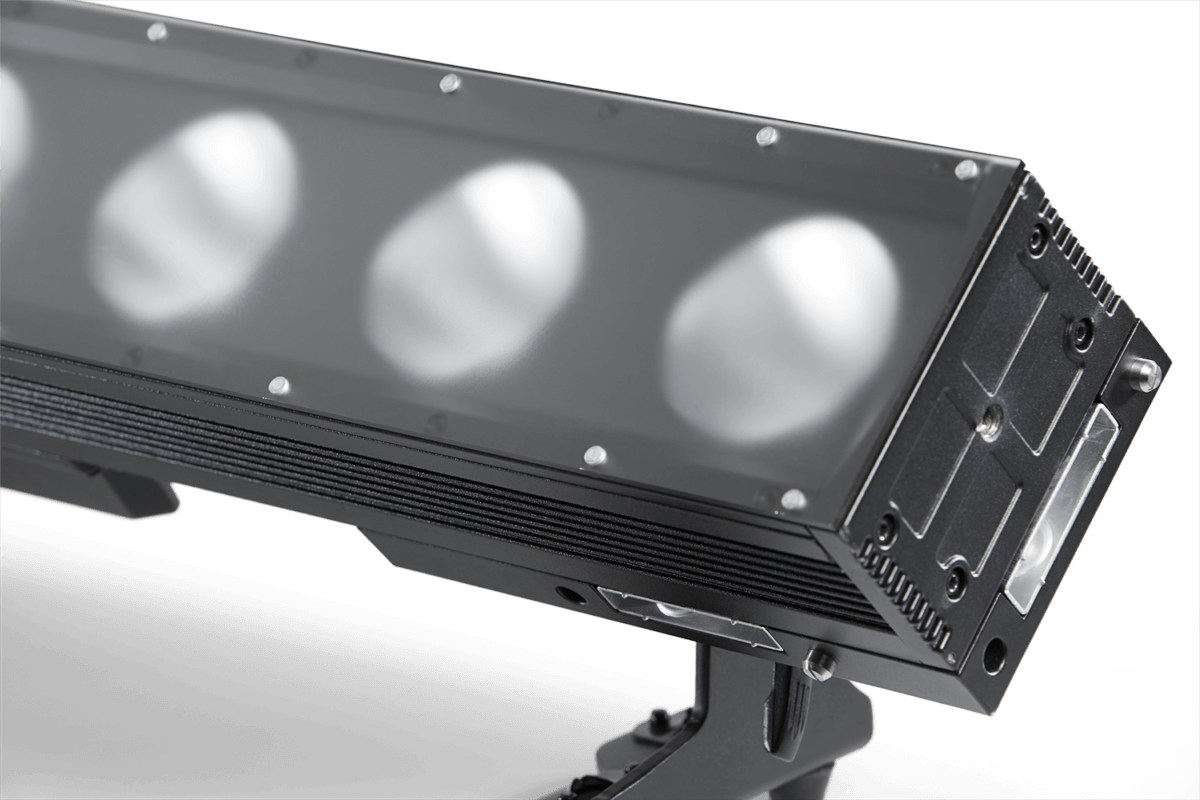

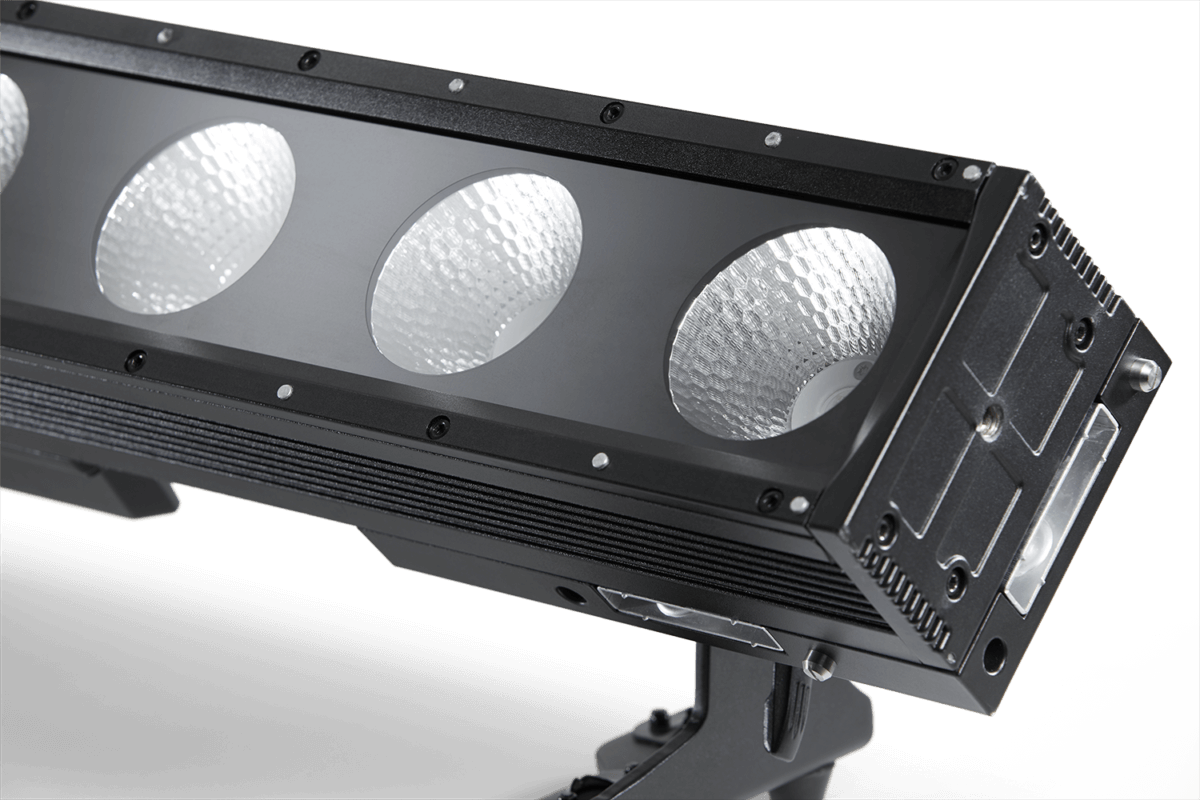

The CLF LEDbar PRO is a multifunctional linear LED batten. Because of the 24° beam angle it can be used as cyclorama as well as pixel controlled effect machine. 10 Big, individually controllable, high power RGBW LEDs deliver a rich color set and smooth HD dimming. Dynamic effects are easily configured by DMX, but the CLF LEDbar PRO is also Art-Net and sACN ready.

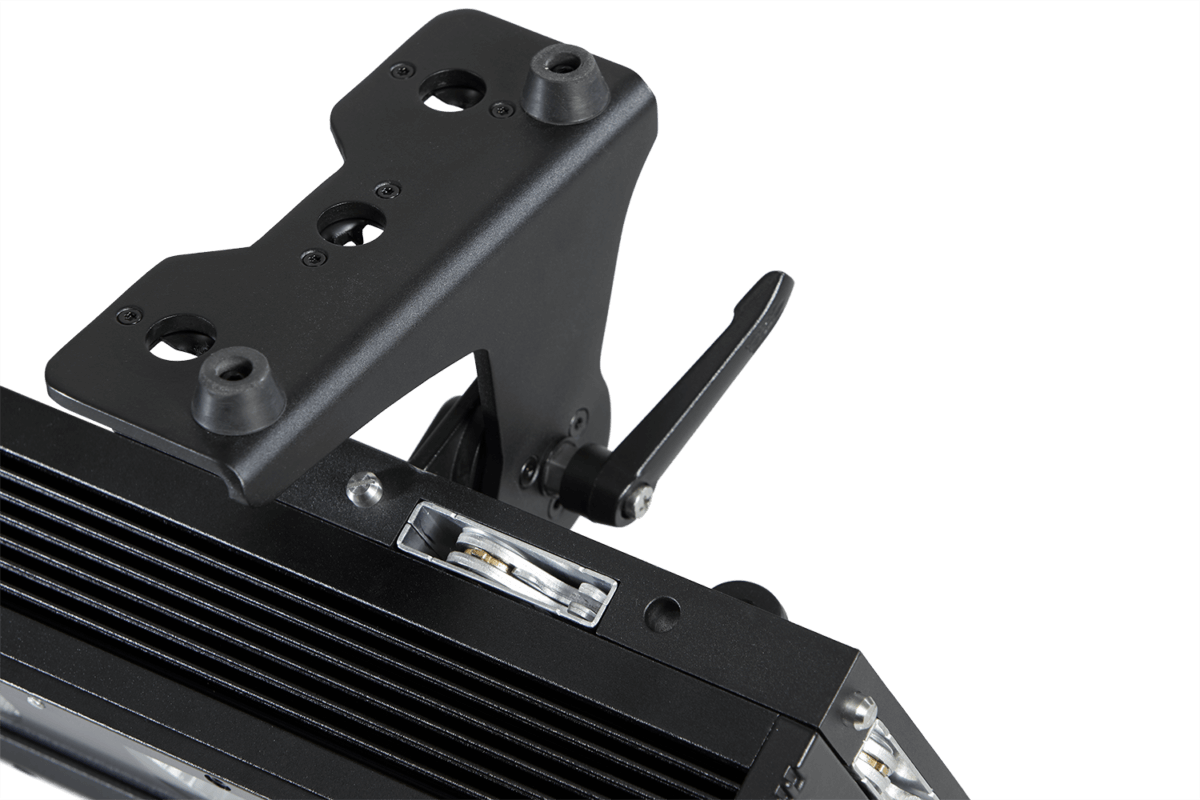

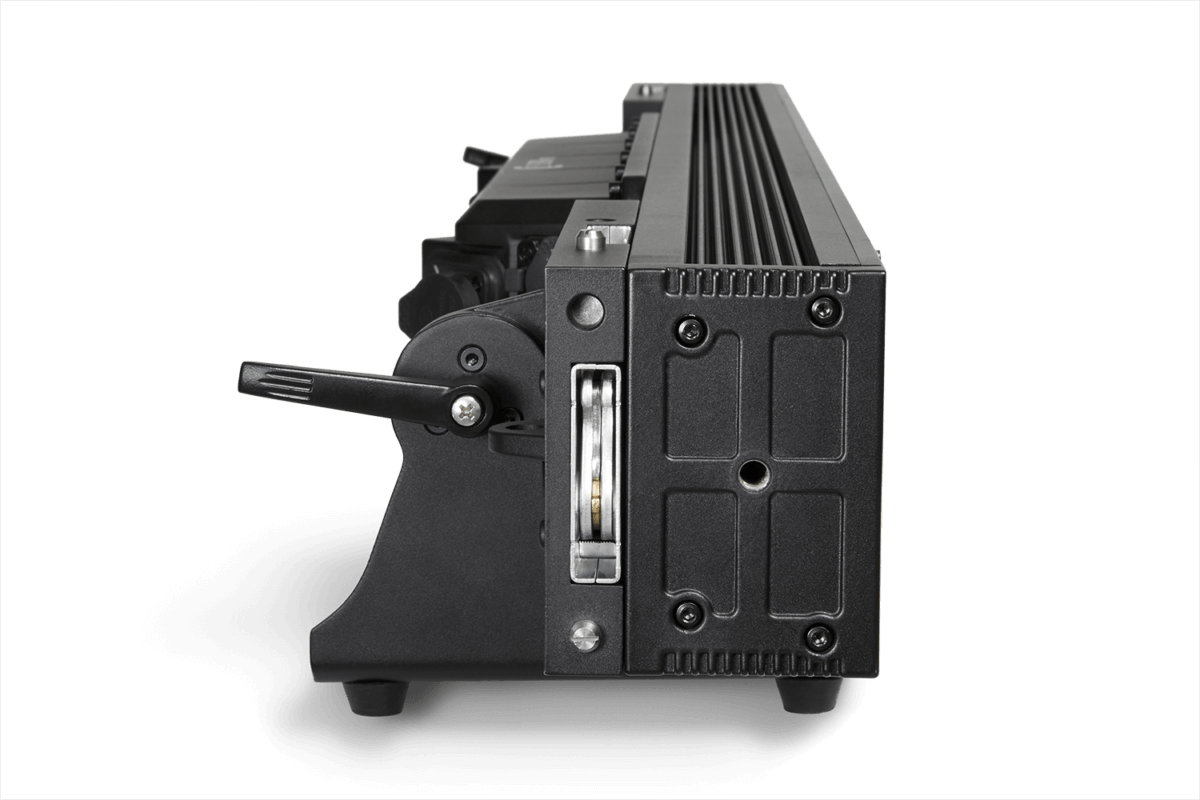

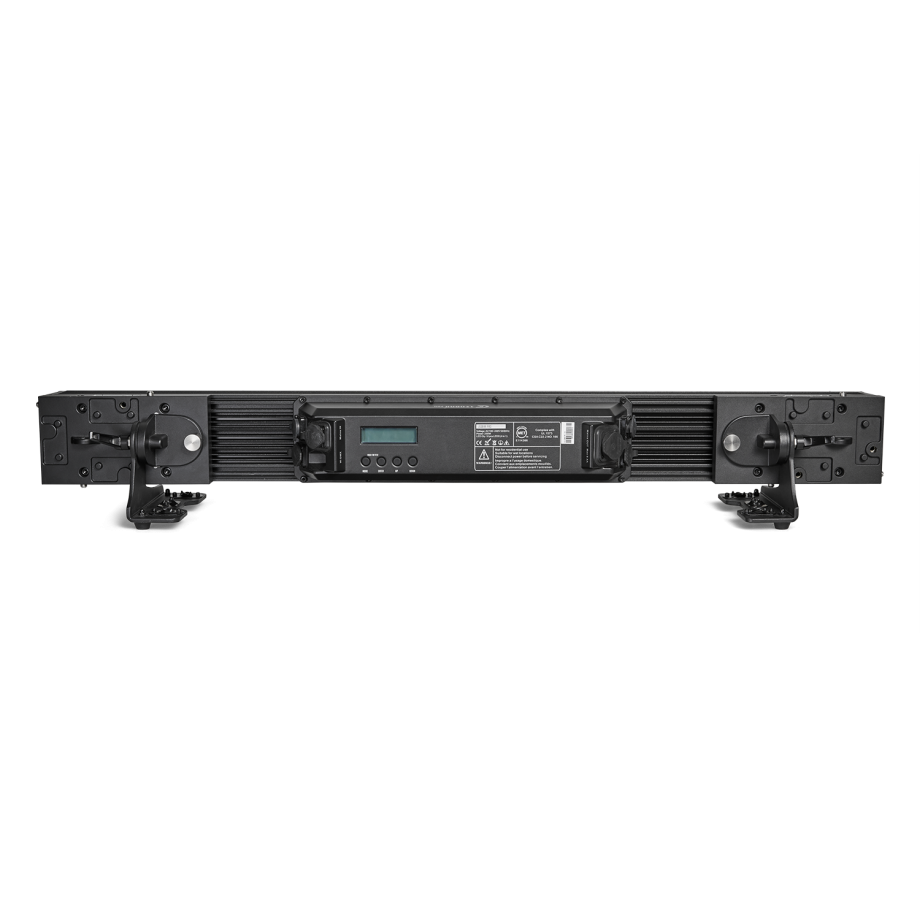

Multiple rigging options are offered by the easily adaptable bracket positioning system and the side lock system offers matrix possibilities. The CLF LEDbar PRO can be used outdoor because of the IP65 rating. The LCD display offers easy access to the menu settings and manual control. Power can be connected through PowerCON TRUE1 connectors.
| Input Voltage & Rate | 100-240V, 50/60Hz |
| Standby power | 10W |
| Nominal Total Power Consumption (at Nominal voltage 230V) | 237W |
| Typical Current (at Nominal voltage 230V) | 1.059A |
| Cos φ | 0,926 |
| Power Plug Type | Seetronic PowerCON True |
| LED Color | RGBW |
| LED Color Temperature | 2500 – 10000 K |
| LED CRI level | |
| Quantity of LED | 10 pc |
| Dimming frequency | 600/1200/2400/4800/9600 |
| Dimmer resolution | 16bit |
| Beam angle | 24° |
| Output @1M | 9000 lux |
| Output @5M | 720 lux |
| Cooling type: | Passive cooling |
| MAX. Ambient temp (Ta max) | 40 °C |
| MIN. Ambient temp (Ta min) | -20 °C |
| MAX housing temp.(ta=25℃) | 50 °C |
| MAX housing temp.(ta=40℃) | 95 °C |
| AUTO program | Yes |
| Static Color | Yes |
| Manual Calibration | Yes |
| Factory calibration | Yes |
| Strobe speed | 0 – 20Hz |
| Random strobe | Yes |
| Control Protocol | USITT DMX512/1990 |
| DMX Channel Range | 4/6/10/11/12/40/47 |
| RDM | Yes |
| RDM compliance | ANSI/ESTA E.120 |
| WDMX | Optional |
| ACN | Yes |
| DMX input connection | DMX 5 pin in & out |
| Data input (Art-Net, SACN) | Yes |
| Interface | Backlite LCD display |
| Software upload method | XLR & RJ45 |
| Location | Outdoor |
| IP rating | IP65 |
| Net product weight | 10,2 kg |
| Machine Dimensions – Length | 1000 mm |
| Machine Dimensions – Width | 105 mm |
| Machine Dimensions – Height | 210 mm |
| Included items | Power cable |
| Manual | |
| Approved certifications | CE, RoHS |
