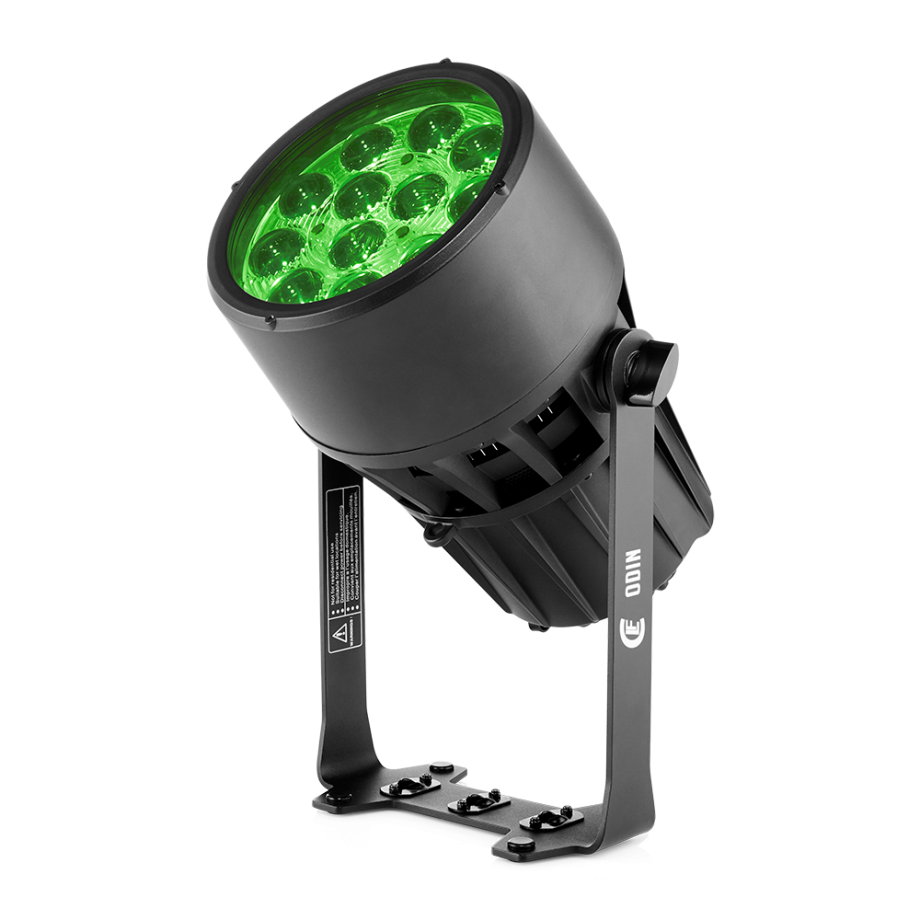

ODIN

POWERFUL OUTDOOR
ZOOM PAR
  • SMOOTH RGB+LIME COLOR MIXING
  • IP65 RATING
  • 11-50° ZOOM RANGE
  • HIGH CRI & R9 VALUES
  • SILENT OPERATION
  • CONFIGURABLE USER MODES


Description

The Odin combines cutting-edge LED technology, excellent light quality and a sturdy outdoor housing. Designed for high-demanding applications, it comes with an outstanding optical system which ensures even light and color projection. The fixture is equipped with a fast and accurate zoom function which ranges from 11° to 50°. The IP65 rating makes it suitable for indoor and outdoor usage.

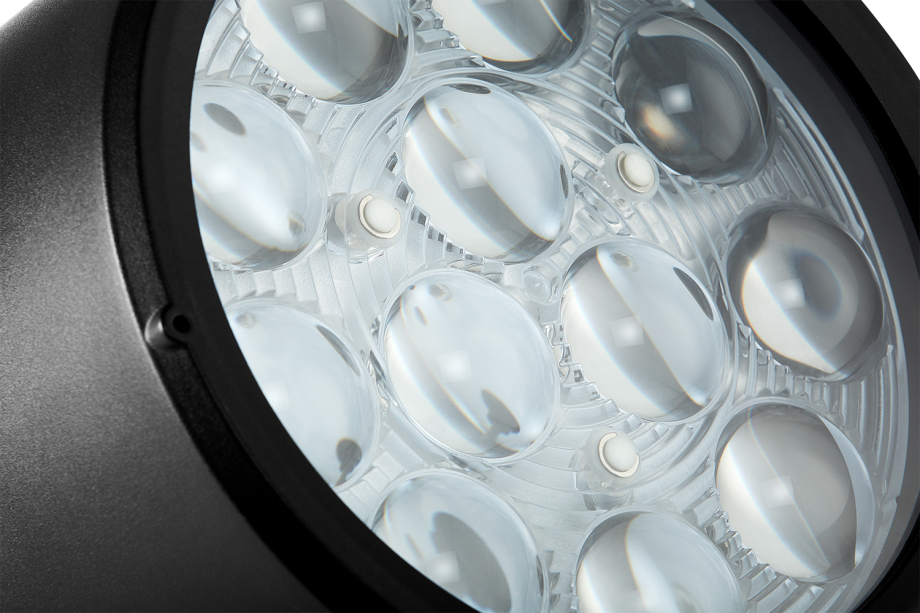

The RGB+Lime LED engine generates a rich color set, from vivid and saturated colors to subtle pastels. Adding lime fills the gaps between red, green and blue and enhances the color spectrum of the fixture. It also adds beautiful white tones to the feature set. The on-board, high performance LEDs deliver a high CRI value. Most striking is a high R9, which makes the Odin perfect for making skin tones look more healthy and natural.

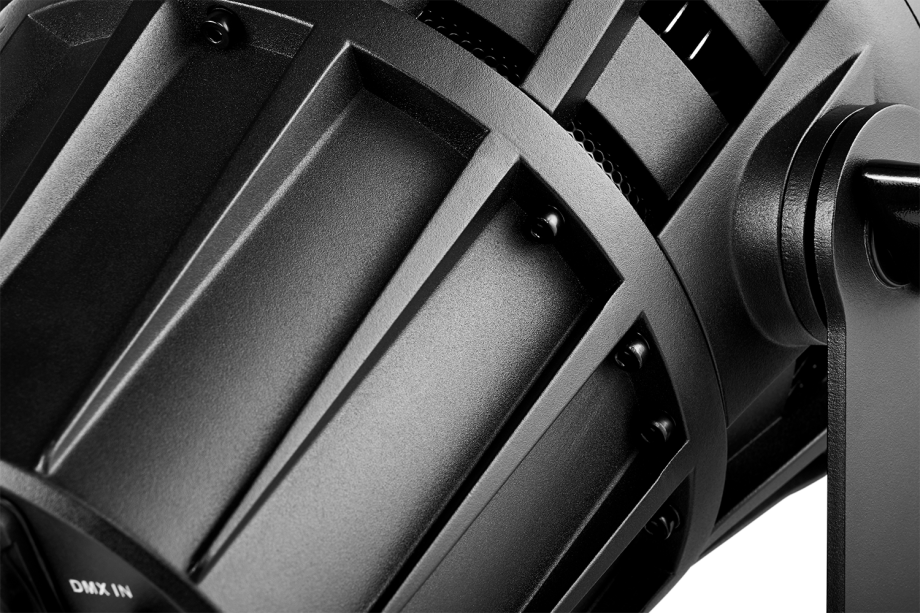

Packed in a signature CLF housing, the Odin combines convection cooling with an ultra-quiet intelligent fan. The fixture can be aimed easily by using the one button test function. The fixture can also be configured for exhibition applications by using the configurable user modes. All in all, it is the ultimate workhorse for applications where superior lighting quality is required.

Power
Input voltage & rate100-240 VAC, 50/60Hz
Standby power10W
Nominal total power consumption  (at nominal voltage 230V)262W
Typical current (at nominal voltage 230V)1.2A
Cos φ0,994
Power plug typePowerCON TRUE 1
Configuration
LED colorRGBL
LED color temperature2500K-10000K
LED CRI level<90
Quantity of LED12
Dimming frequency600-10000Hz
Dimmer resolution16 bit
Optical
Beam angle11° – 50°
Output @ 1M
Output @ 5M
Heat management
Cooling typeIntelligent fan
MAX ambient temp (Ta max)40°C
MIN ambient temp  (Ta min)-20°C
MAX housing temp. (ta=25°C)45°C
MAX housing temp. (ta=40°C)56°C
Menu
Auto programYes
Static colorYes
Manual calibrationYes
Factory calibrationYes
Strobe speed0-25Hz
Random strobeYes
Control
DMX channel range6/8/9/13 ch
RDMYes
RDM ComplianceANSI/ESTA E.120
W-DMXOptional
sACNNo

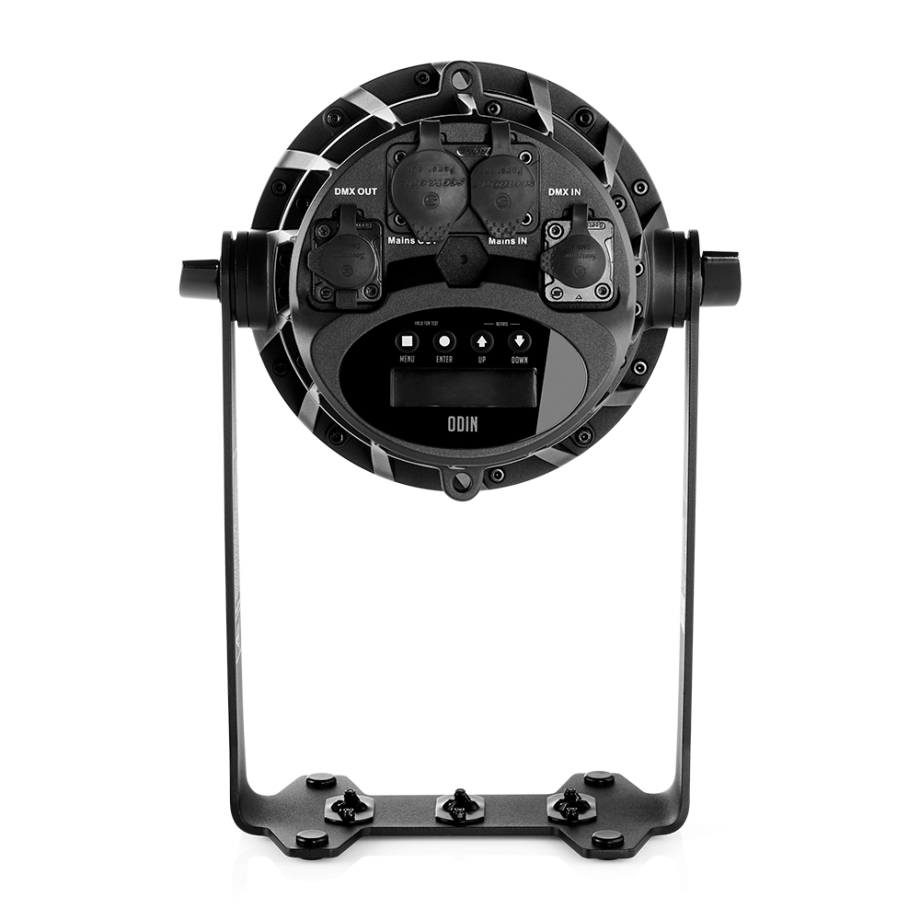

DMX input connectionDMX 5 pin in & out (3 pin optional)
Data input connectionNo
Hardware

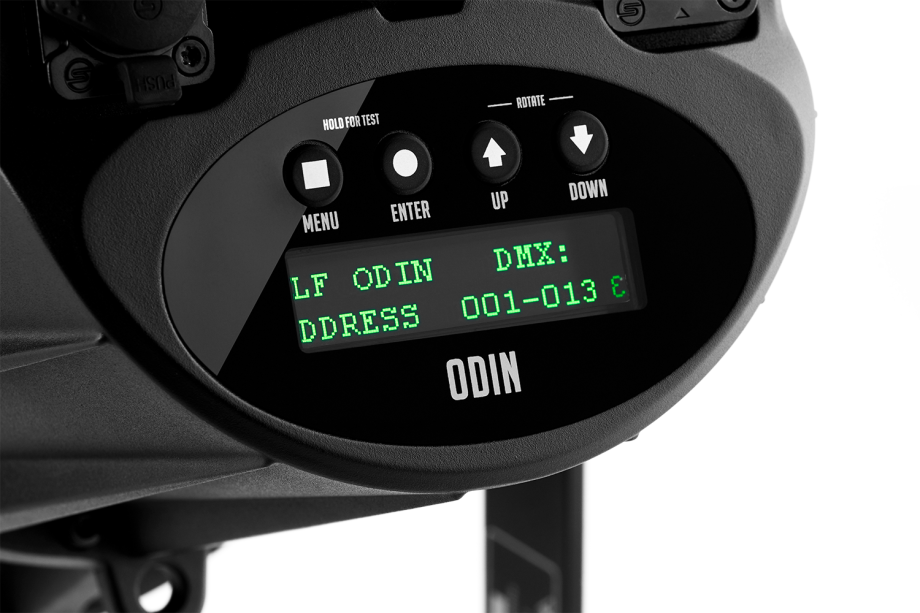

InterfaceLCD display
Software upload methodXLR (via special box)
Safety attachment point2
Installation
LocationIndoor/outdoor
IP ratingIP65
OrientationAny
Physical
Net product weight6 KG
Machine dimensions – length314mm
Machine dimensions – depth253mm
Machine dimensions – height363mm
Item number156050
Included itemsPower cable, manual
Optional accessoriesBarndoor, snoot
Approved certificationsCE, RoHS, MET pending
