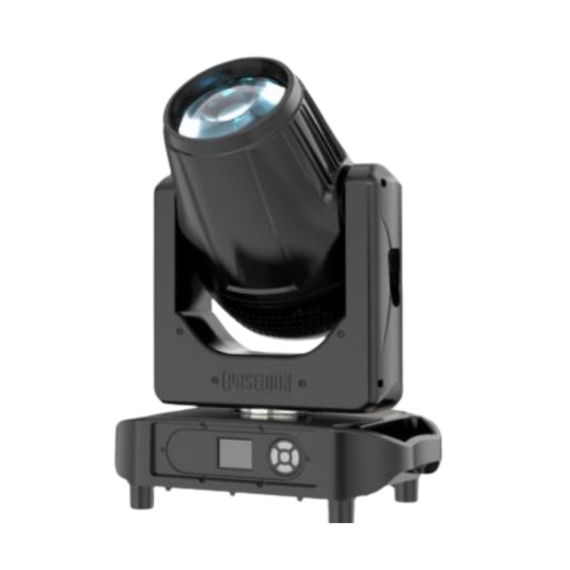

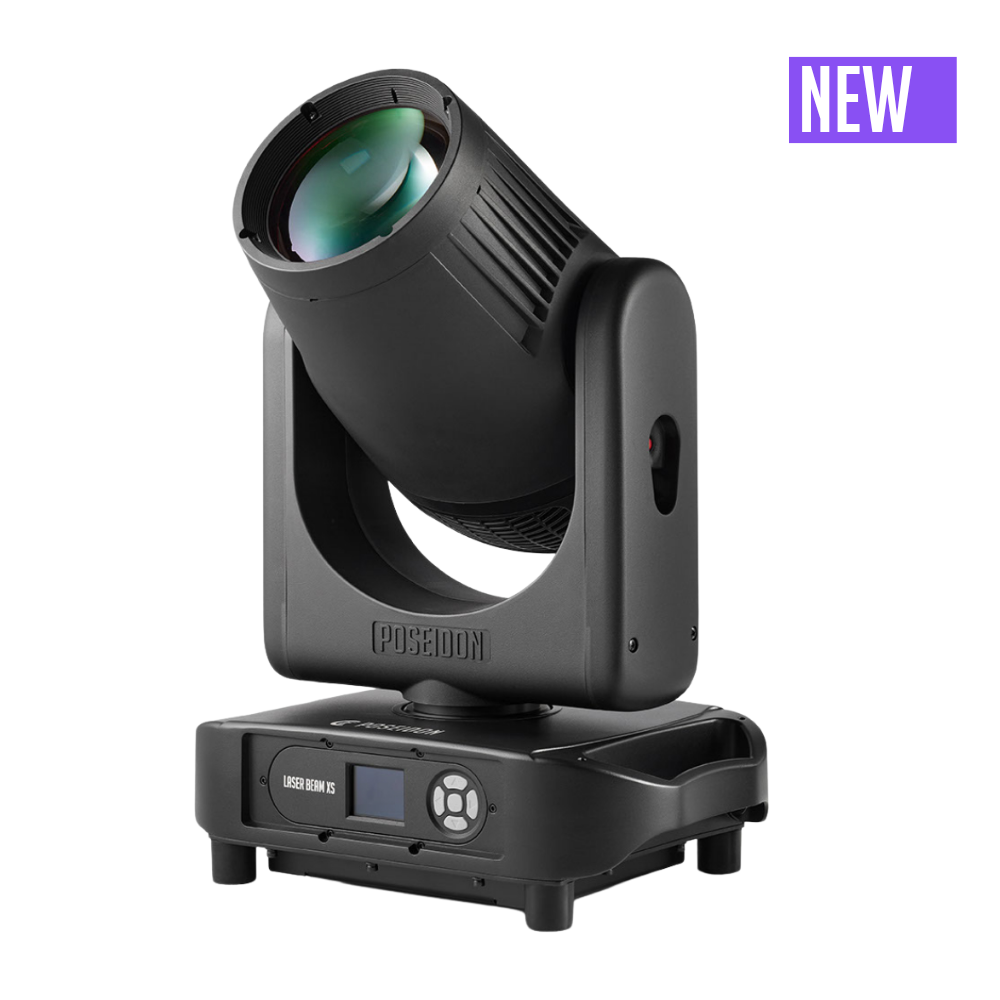

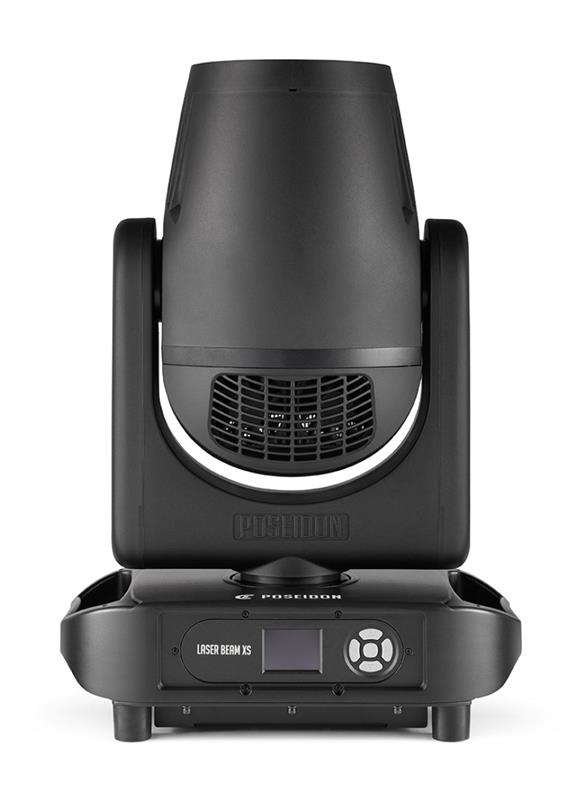

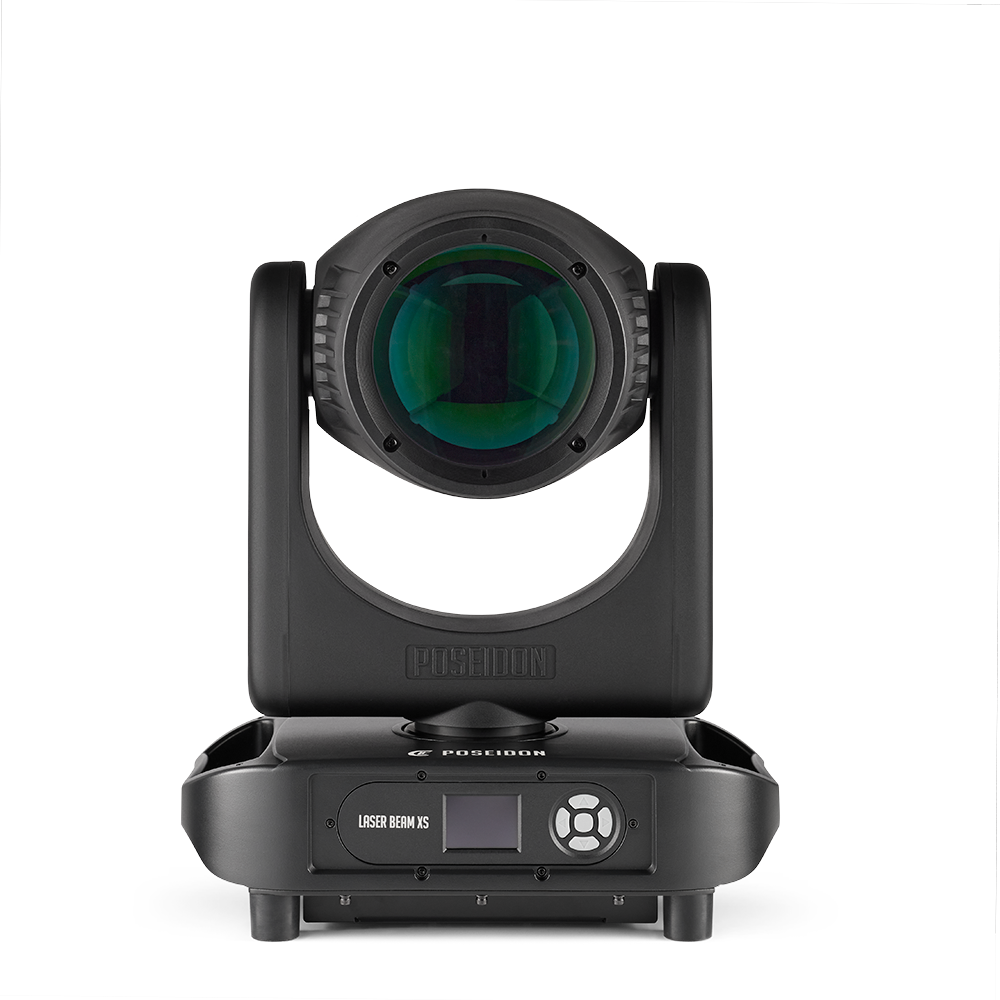

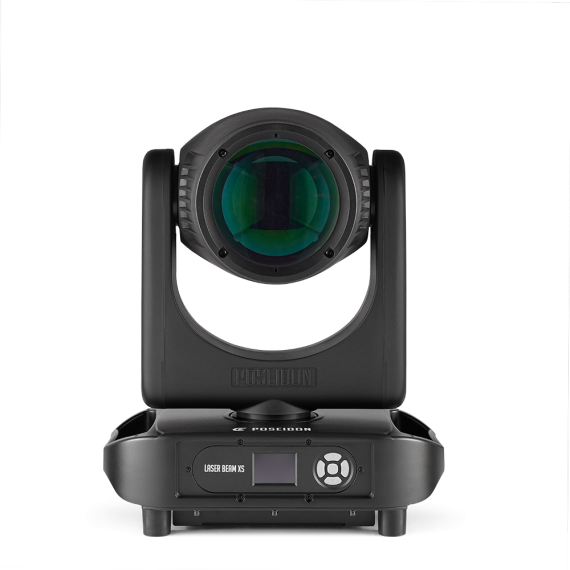

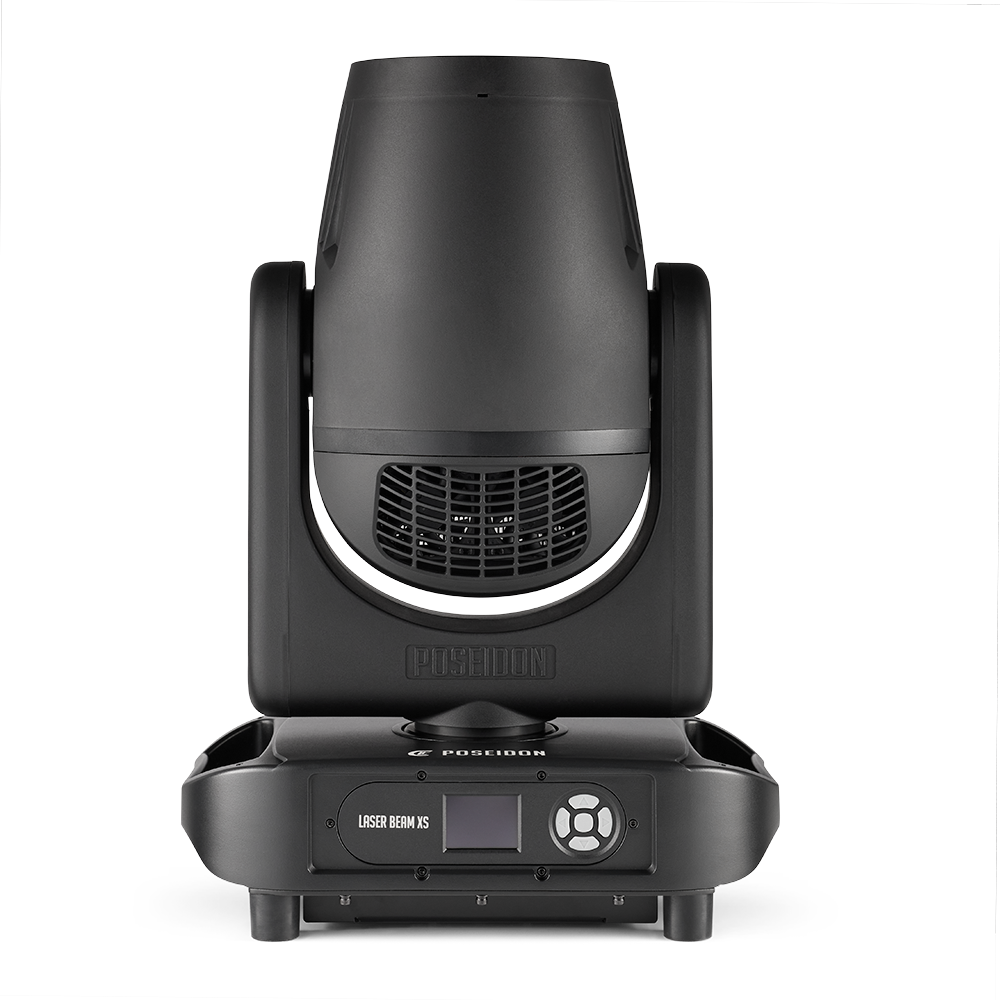

The CLF Poseidon Laser Beam XS is a highly anticipated addition to the CLF lineup. The Laser Beam XS is the first laser fixture in the Poseidon series. This user friendly Laser sourced fixture is packed with features and boasts ultra-bright performance, making it ideal for all small and big festival, theater applications. Its small sized housings, low power consumption and fast movements together with the CMY color mixing system it’s a packed fixture. All build for power, speed and easiness!
| POWER | |
| INPUT VOLTAGE | 100 – 240VAC, 50 / 60HZ |
| TOTAL POWER CONSUMPTION | 233W |
| POWER PLUG TYPE | SEETRONIC POWERCON TRUE1 |
| … | |
| SOURCE | |
| SOURCE | 120W NEW TECHNOLOGY |
| … | |
| OPTICAL | |
| BEAM ANGLE | 1.1° |
| … | |
| EFFECTS | |
| COLOR | CMY |
| … | 12 + COLOR FIXED WHEEL |
| GOBO | 17 + OPEN FIXED GOBO WHEEL |
| PRISM | 2 ROTATABLE PRISM (8 FACET & 17 FACET |
| FROST | YES |
| DIMMER | 16 BIT 0-100% |
| SHUTTER | 12 HZ/SECOND, RANDOM |
| PAN | 540° |
| TILT | 270° |
| FOCUS | YES |
| … | |
| HEAT MANAGEMENT | |
| COOLING TYPE | REGULATED FANS |
| MAX. AMBIENT TEMP. | TA MAX=40°C |
| MIN. AMBIENT TEMP | TA MIN=-20°C |
| … | |
| CONTROL | |
| CONTROL PROTOCOL | USITT DMX512/1990 |
| DMX CHANNELS | 21 |
| RDM | YES |
| WDMX | OPTIONAL |

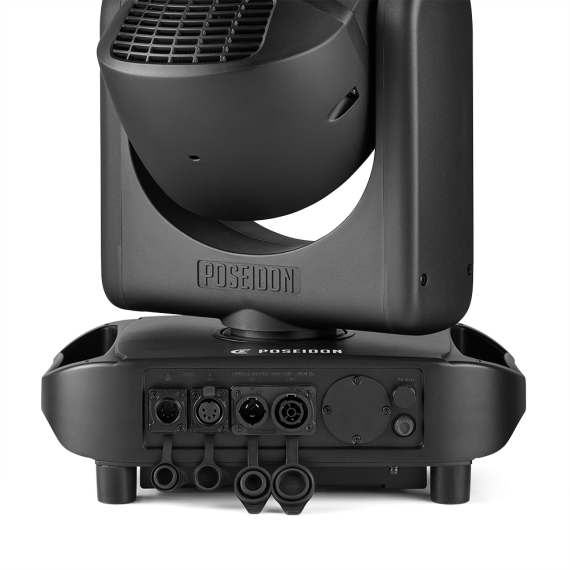

| DMX INPUT CONNECTION | 5-PIN (3 PIN OPTIONAL) |
| DATA INPUT (ARTNET/SACN) | OPTIONAL |
| … | |
| INSTALLATION | |
| IP RATING | IP65 |
| ORIENTATION | ANY |
| … | |
| HOUSING | |
| SAFETY ATTACHMENT POINT | YES |
| POSITION LOCK | TILT |
| … | |
| PHYSICAL | |
| NET PRODUCT WEIGHT | 25,8 KG |
| LENGTH | 244 MM |
| DEPTH | 372 MM |
| HEIGHT | 630 MM |
| … | |
| ACCESSORIES | |
| INCLUDED ITEMS | MANUAL, POWER CABLE, SAFETY CABLE |
| OPTIONAL ACCESSORIES | OMEGA BRACKET, FLIGHTCASE |
| … | |
| APPROVALS | |
| APPROVED CERTIFICATIONS | CE-EMC, CE-LVD AND ROHS |
| … | |
| INFORMATION | |
| ARTICLE NUMBER | 160060 |
| EAN CODE | 8719189163285 |
