Description

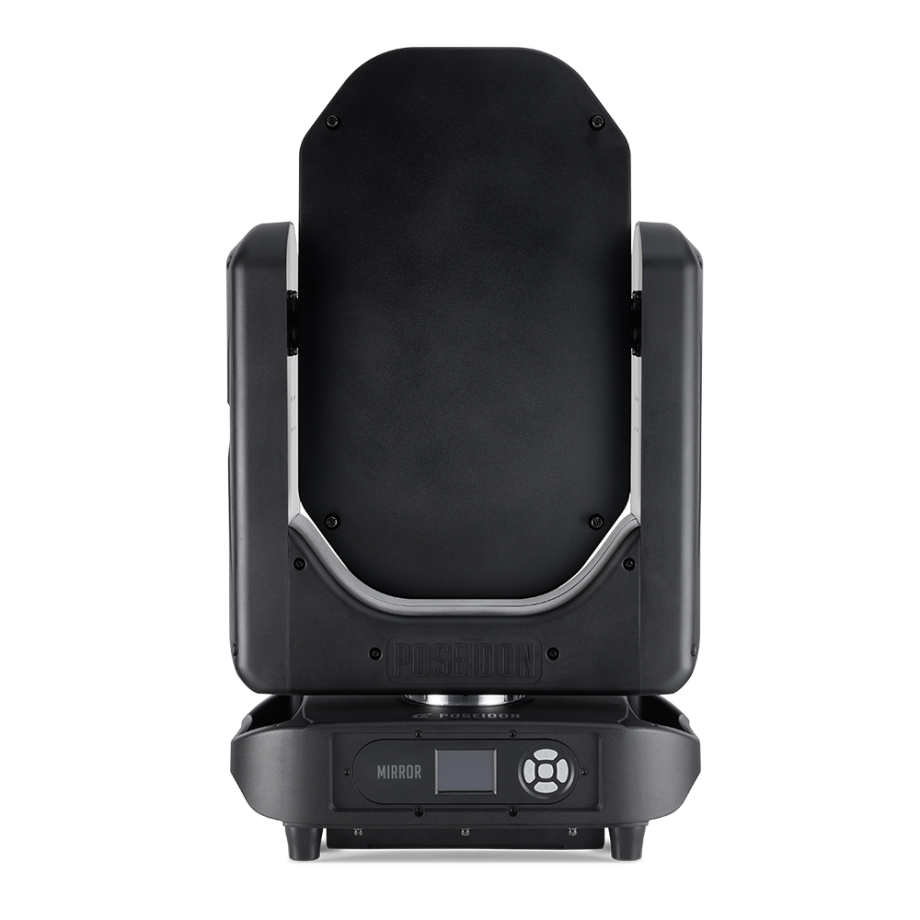

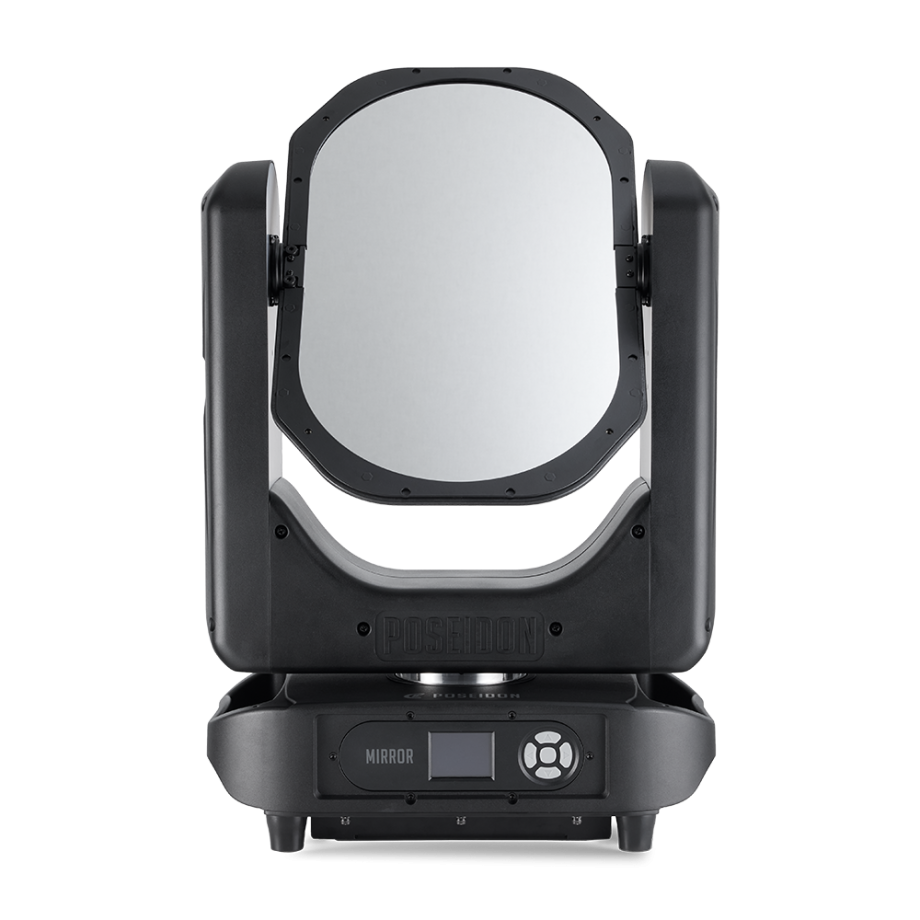

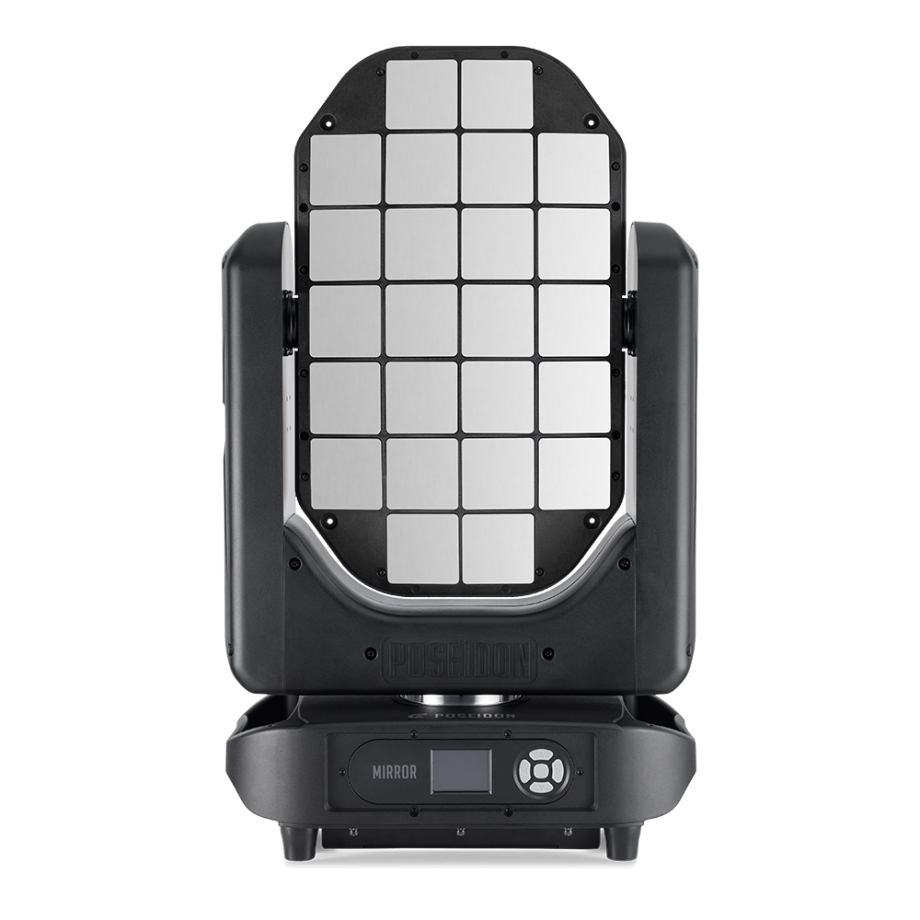

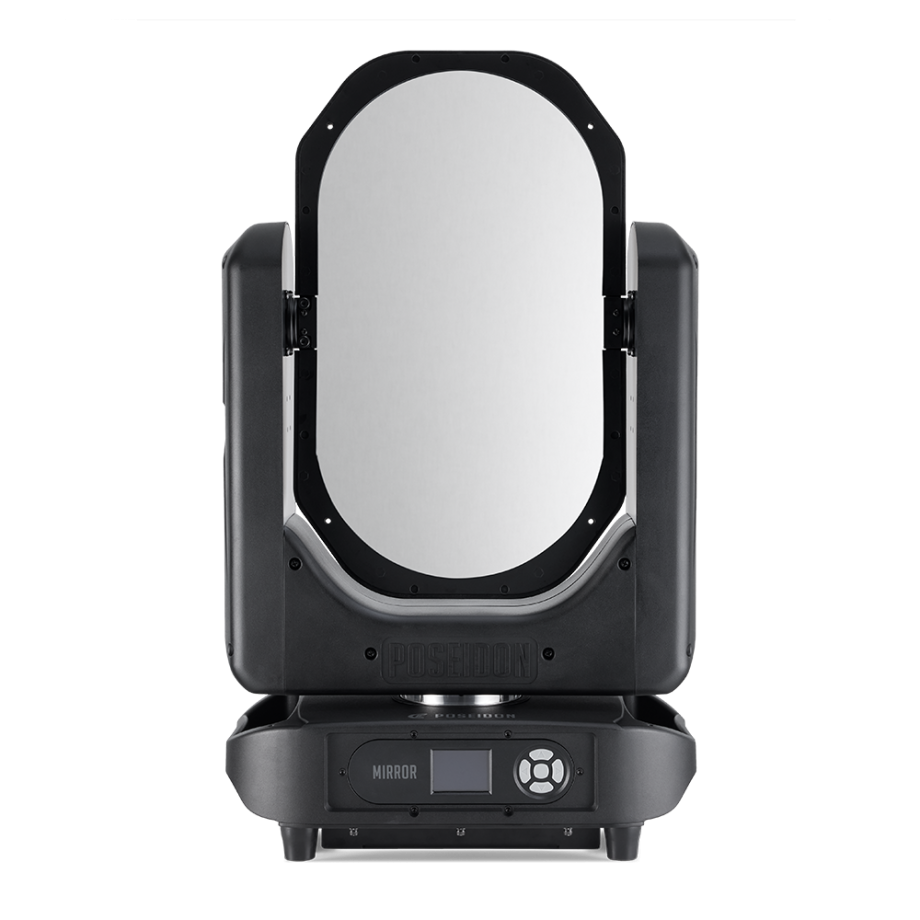

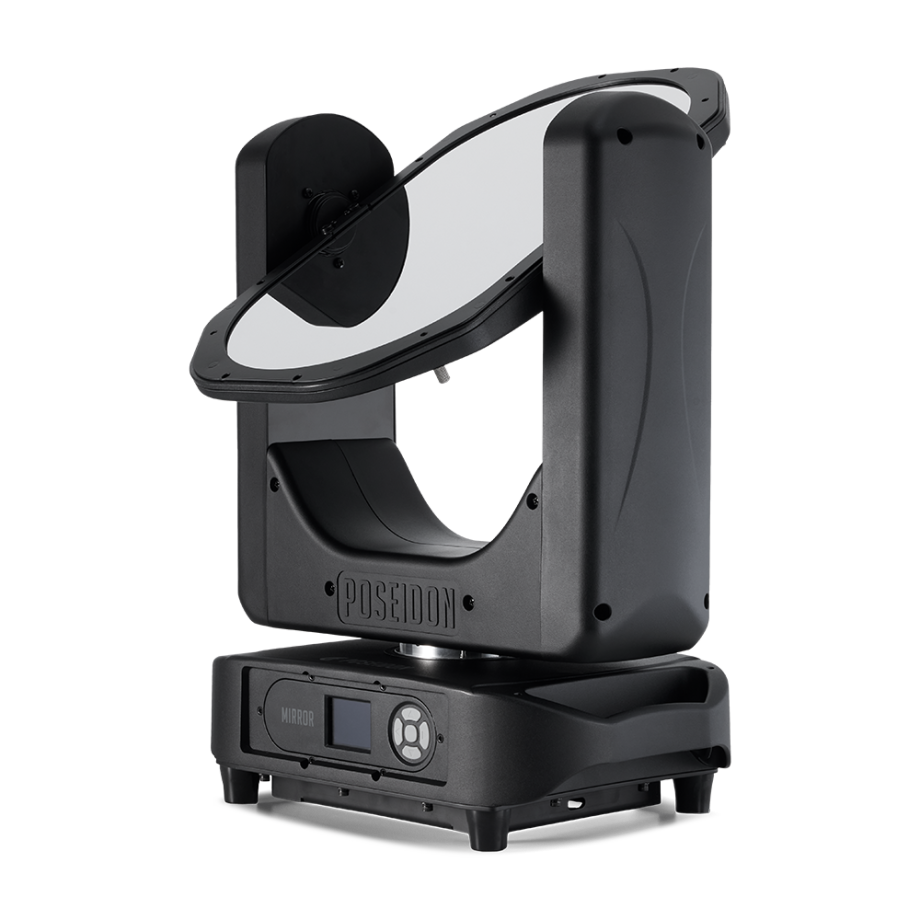

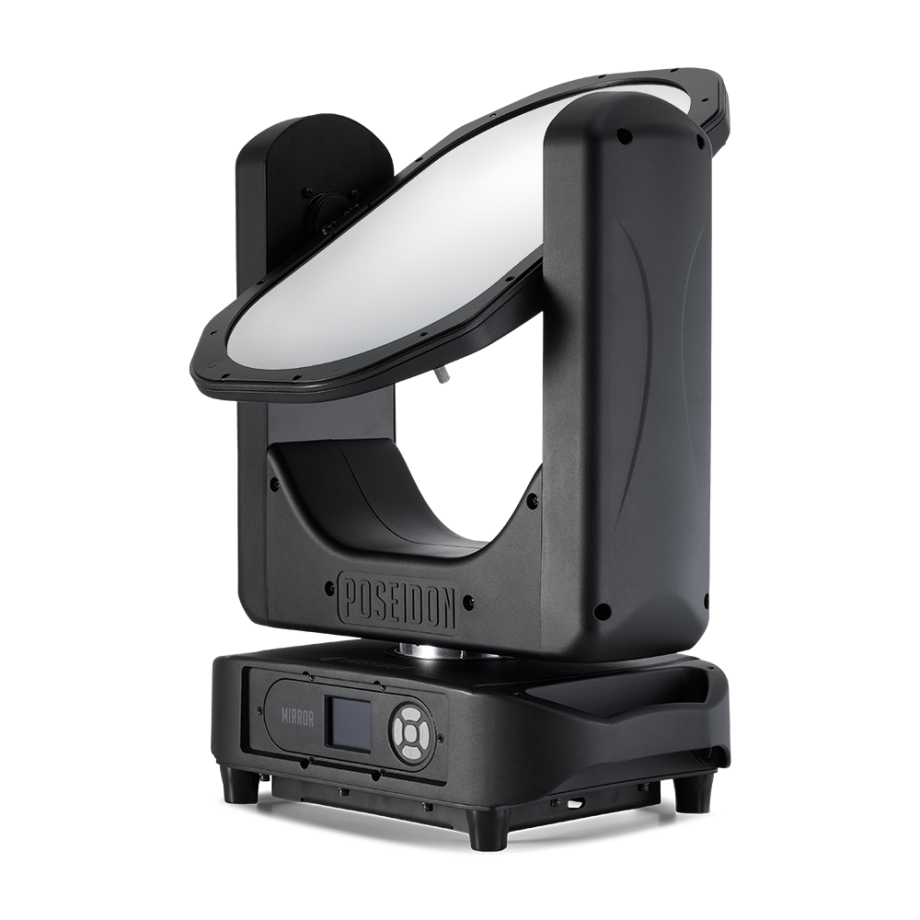

The Poseidon Mirror is a versatile, leightweighted and Ip65 rated mirror fixture with dual sides. One side for one FAT intense beam projection and the other side with a 24 pcs shaped mirror for creative mid-air effects. The TILT off the fixture has infinite rotations. Both Pan and Tilt have a variable Mirror shake function. The together with the product supplied protection cover, can cover up one off the up one off the 2 mirror sides to prevent anoying reflections. Protected against water, moisture and dirt, the Poseidon Mirror is a effect fixture with a good value for money for any indoor or outdoor application.
| Power | |
| Input voltage | 100-240 V, 50/60 Hz |
| Standby power | 10 W |
| Total power consumption | 60 W |
| Typical current | 0,6 A |
| Power plug type | Seetronic Powercon True 1 |
| Mirror | |
| Type | 98% reflectance without chromatic aberrations |
| Effects | Side 1: clear oval shaped 431 mm mirror Side 2: 24 pcs clear mirrors mounted under an angle |
| Effects | |
| Pan | 540°, 16-bit |
| Tilt | Infinite 16-bit |
| Pan tilt effect | Variable shake effect |
| Hardware | |

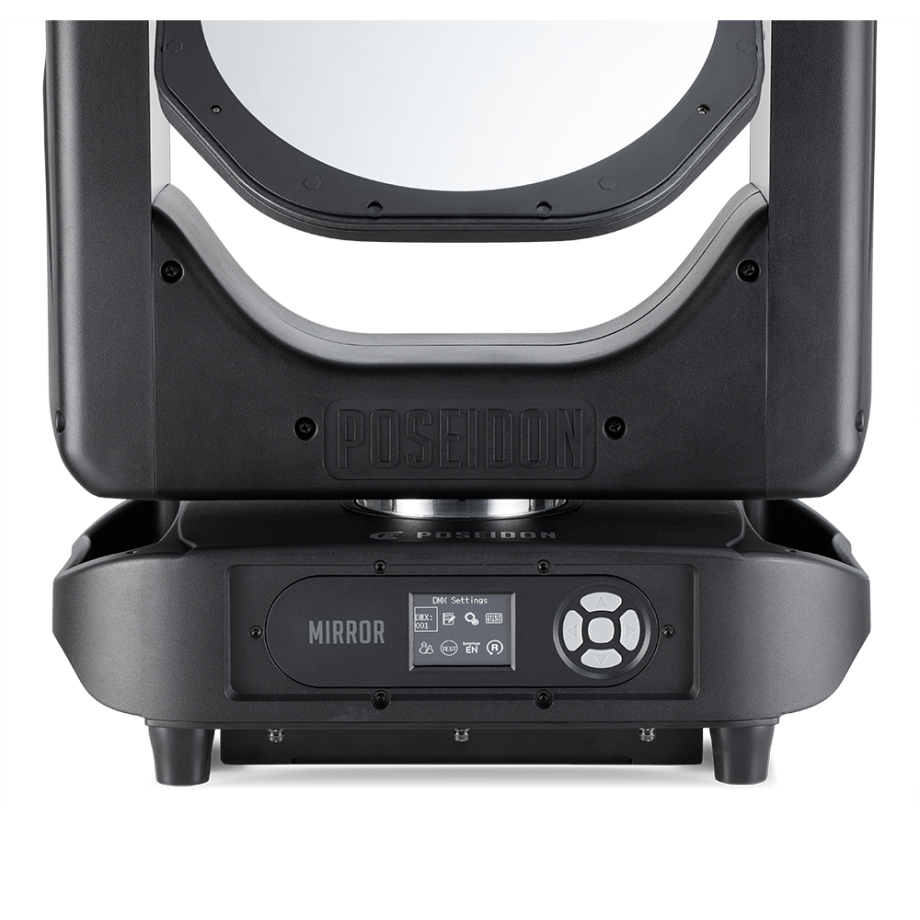

| Interface | LCD display |
| Heat management | |
| Cooling type | X |
| Max. ambient temp | TA Max = 40°C |
| Min. ambient temp | TA Min = -20°C |
| Control | |
| Control protocol | USIT DMX512/1990 |
| DMX channels | 8 CH |
| RDM | Yes |
| WDMX | Yes (WDMX/Lumen solutions) |

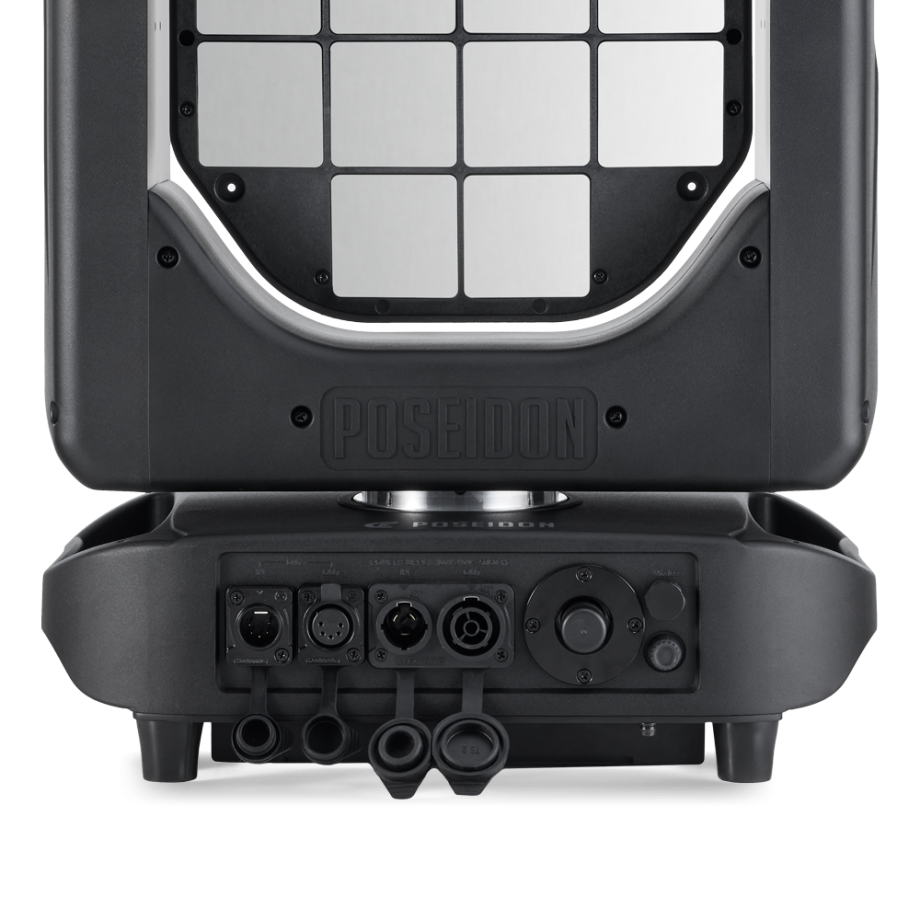

| DMX input connection | 5-pin |
| Data input (ARTNET/SACN) | Optional (replaces WDMX) |
| Installation | |
| IP rating | IP65 |
| Orientation | Any |
| Housing | |
| Safety attachment point | Yes |
| Physical | |
| Net product weight | 15,5 kg |
| Length | 372 mm |
| Depth | 242 mm |
| Height | 619 mm |
| Accessories | |
| Included items | Manual, powercable |
| Optional accesories | Omega bracket |
| Approvals | |
| Approved certifications | CE, ROHS |
| Information | |
| Article number | 160042 |
| EAN code | 8719189163049 |
