SERA

Description

DESCRIPTION

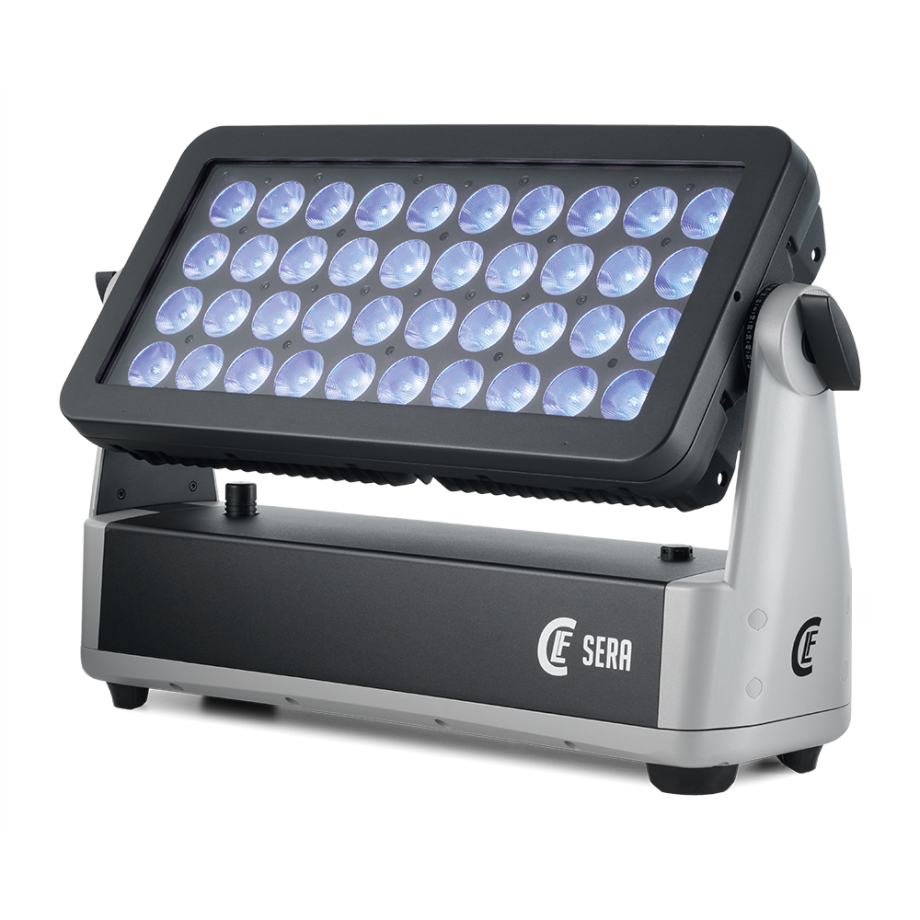

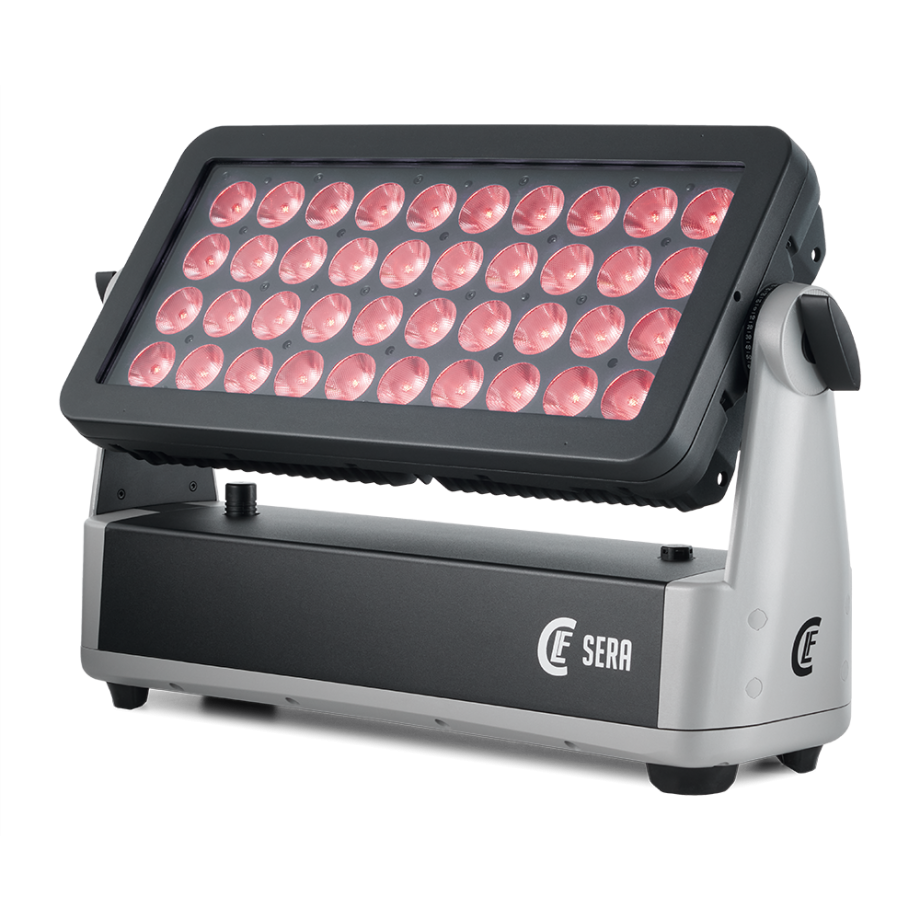

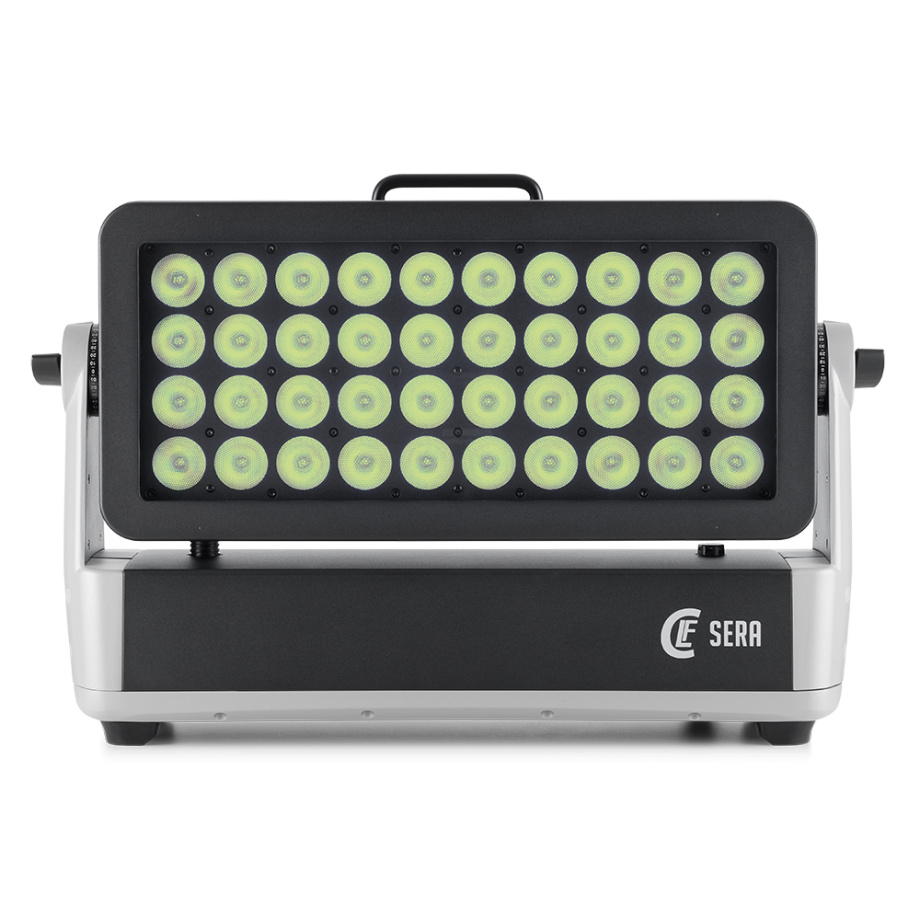

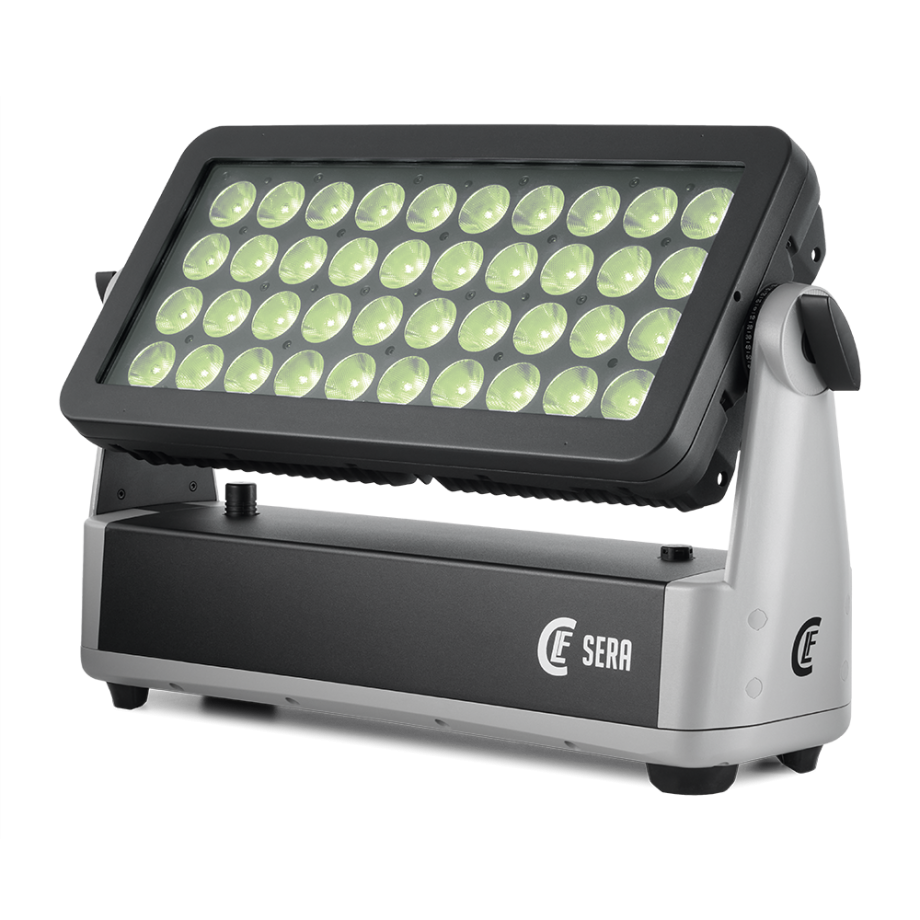

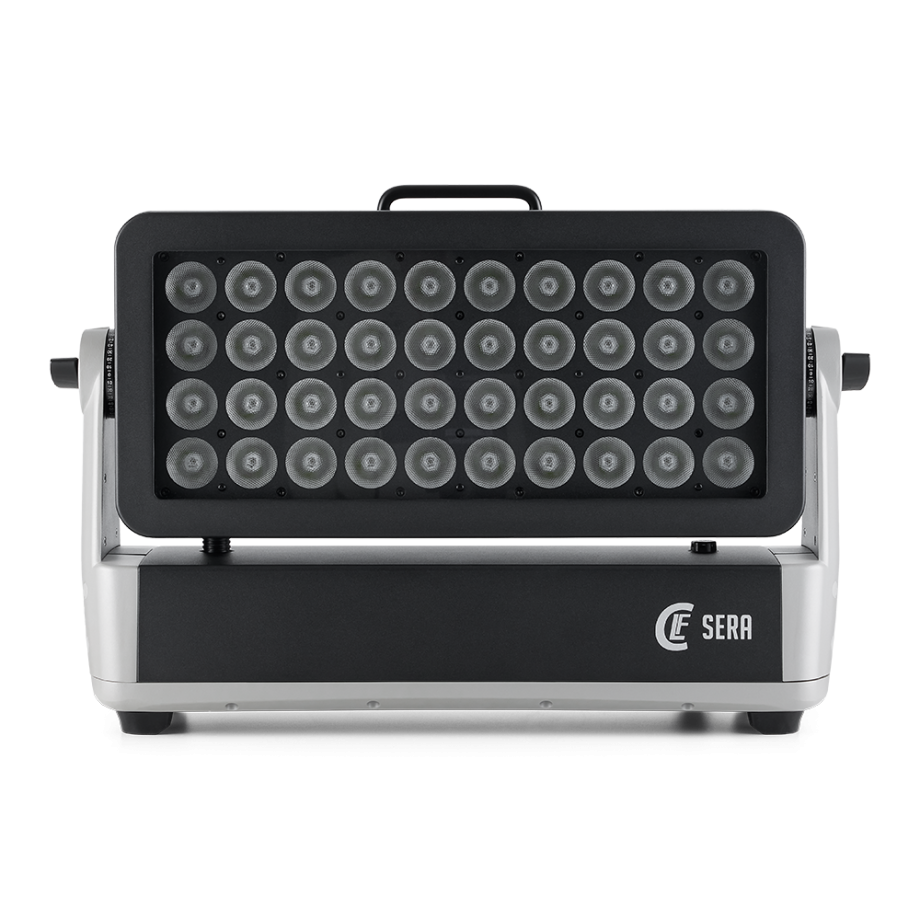

The CLF Sera is an extremely powerful LED wash fixture which is perfect for illuminating large surfaces both in- and outdoor. Extreme brightness and an extraordinary even projection make the Sera a true LED alternative for traditional wash lights. The array of 40 calibrated high power RGBL LEDs is divided in four individually controllable horizontal segments.

The Sera is equipped with a punchy 15.6° beam angle, which can beeasily adapted to other beam angles, even elliptical, by using the Magnetic Smart Filter System.

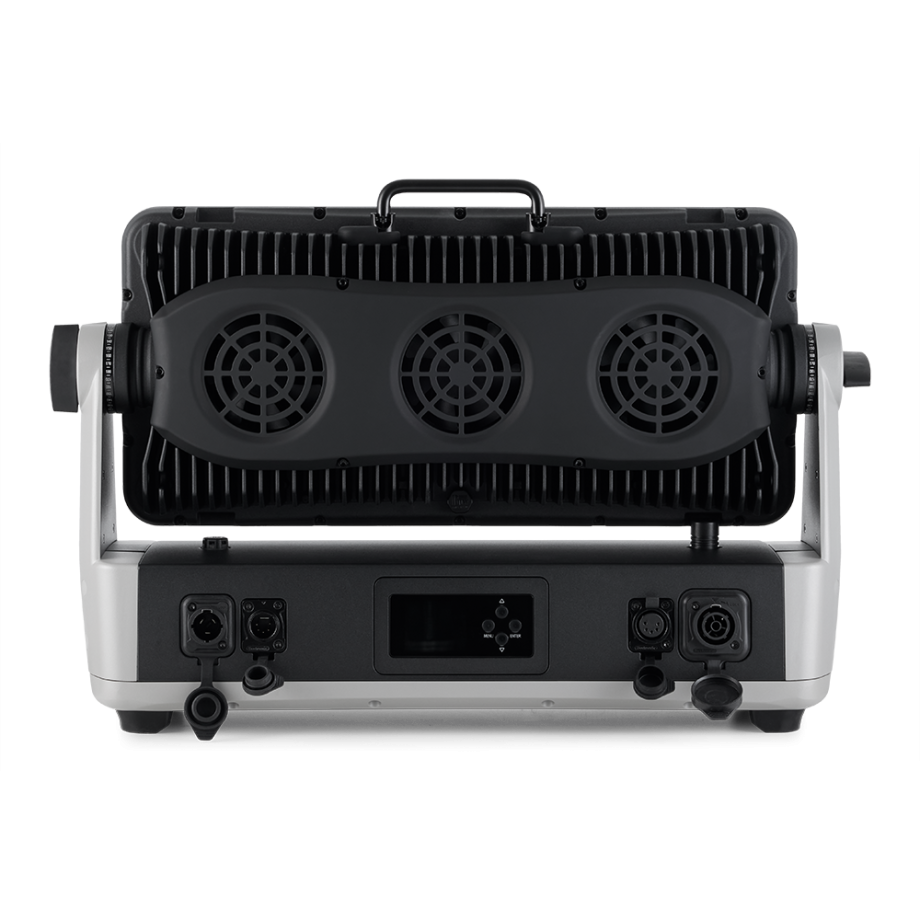

The Sera comes with an intelligent silent cooling system which provides extensive fan control and is especially useful for TV and theatre use. All in all, the Sera is a versatile LED wash that can be used for many applications.

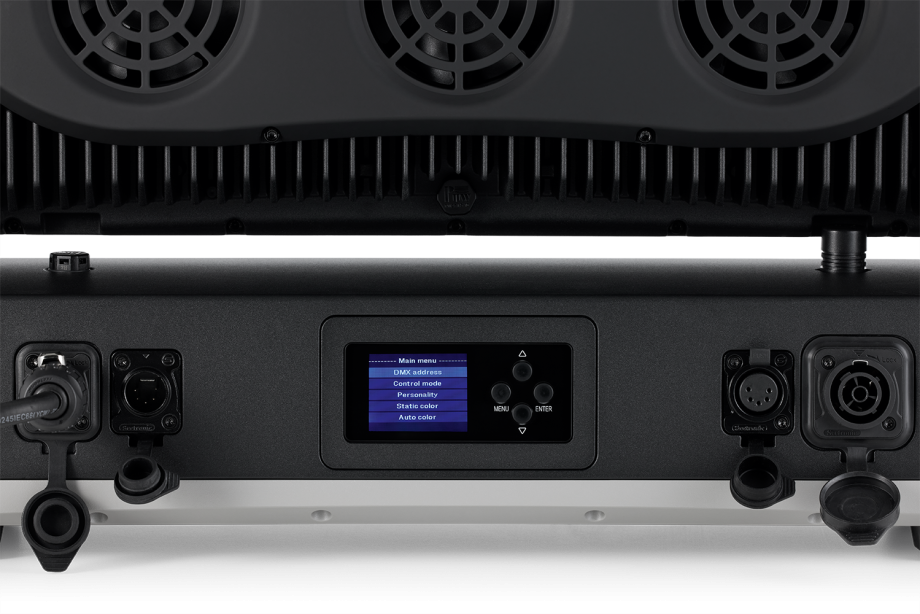

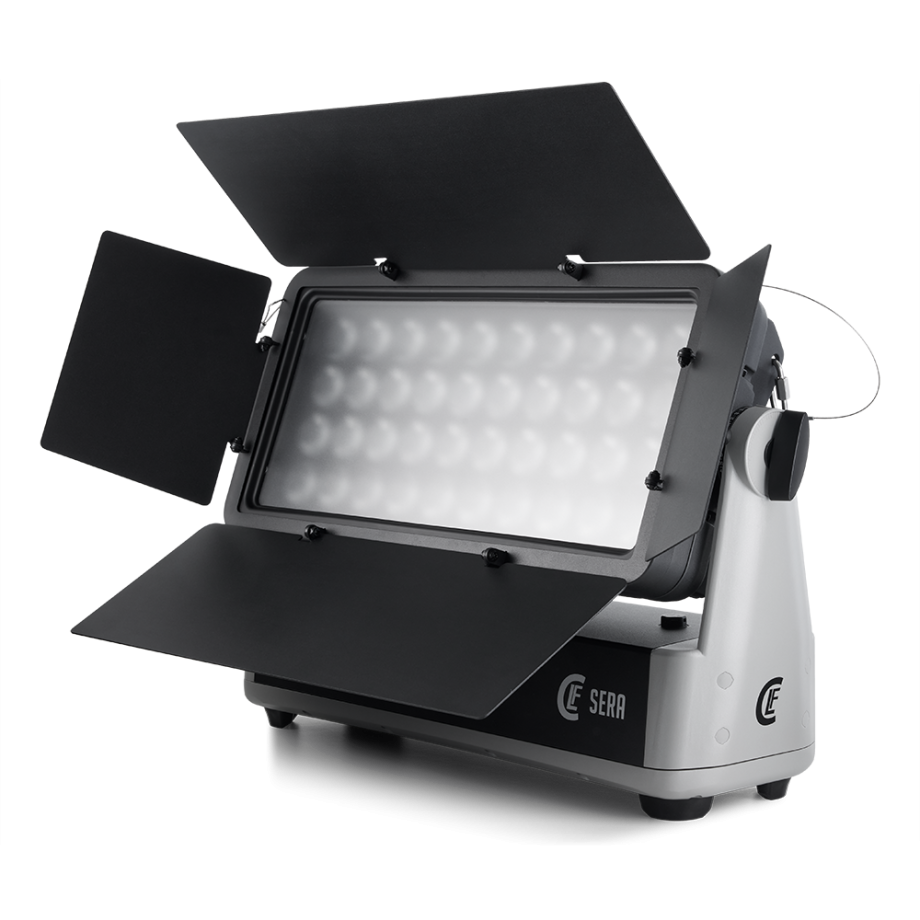

The CLF Sera comes optional with a filterframe, barndoor and a Wireless Solution/Lumen W-DMX receiver on board, but can also be connected with 5-pin XLR connectors and many sufisticated stand alone functions. Power is connected through a PowerCON TRUE1 connector.

SPECIFICATIONS

LED configuration	40x RGBL high power calibrated LEDs
DMX channels	2 / 3 / 4 / 4 / 6 / 8 / 10 / 16 / 13 / 33 CH
Beam angle	15.6° beam and 28° field angles
Power consumption	Max. 816 W
Power supply	AC 100 – 240 V, 50-60 Hz
Cooling	Smart controlled fans
Max ambient temp	TA Max = 40°C
Min ambient temp	TA Min = -20°C
DMX connection	W-DMX / DMX 5 pin (3 pin optional)
Dimensions	534 x 157 x 336 (lxwxh)
Weight (without accessories)	13 kg
Certification	CE, ROHS, RED, FCC, UKCA
Item number	160100
EAN	8719189163094
Optional accessories	Omega bracket, magnetic smart filter system, barndoor, flightcase
IP rating	IP65
Included items	Power cable, manual
