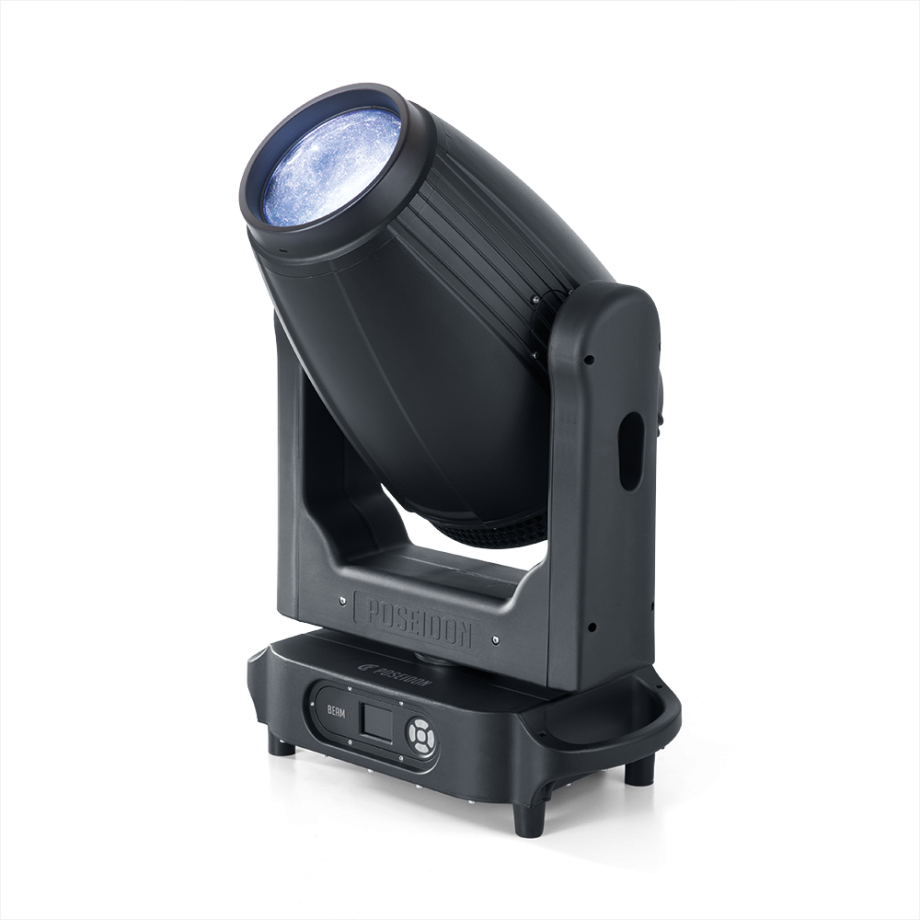

POSEIDON BEAM

POWERFUL OUTDOOR BEAM
  • Smooth CMY color mixing

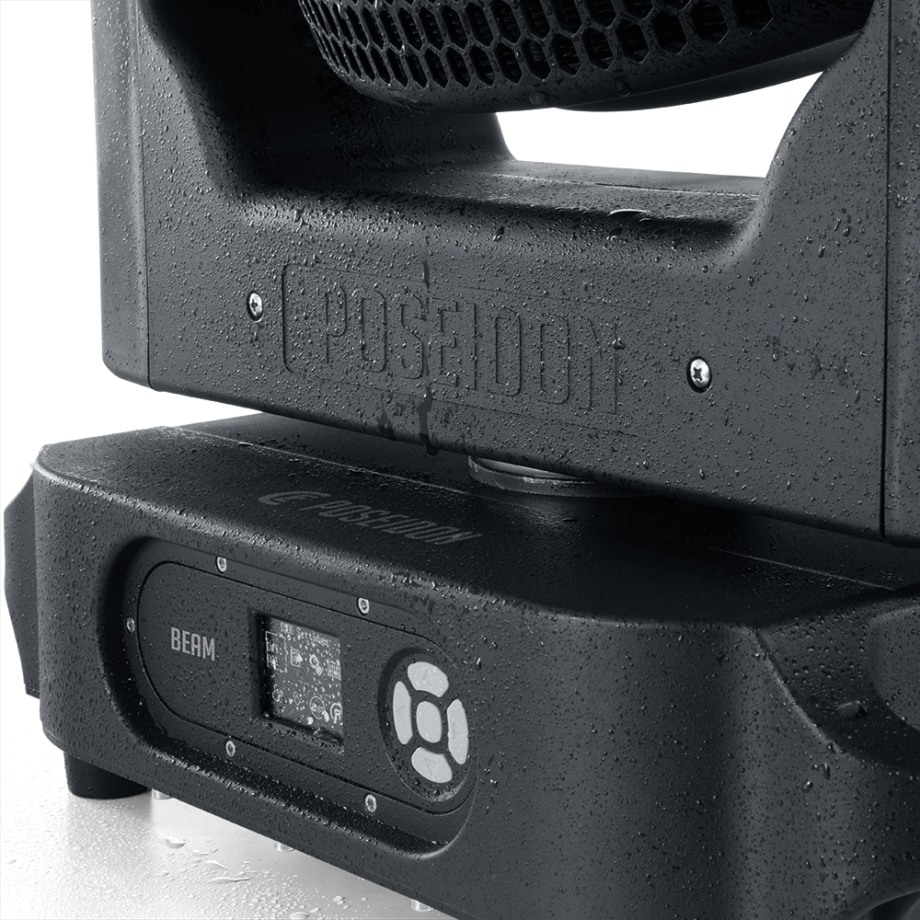

  • IP65 rating
  • Gobo wheel with animation range
  • Double prism
  • Frost

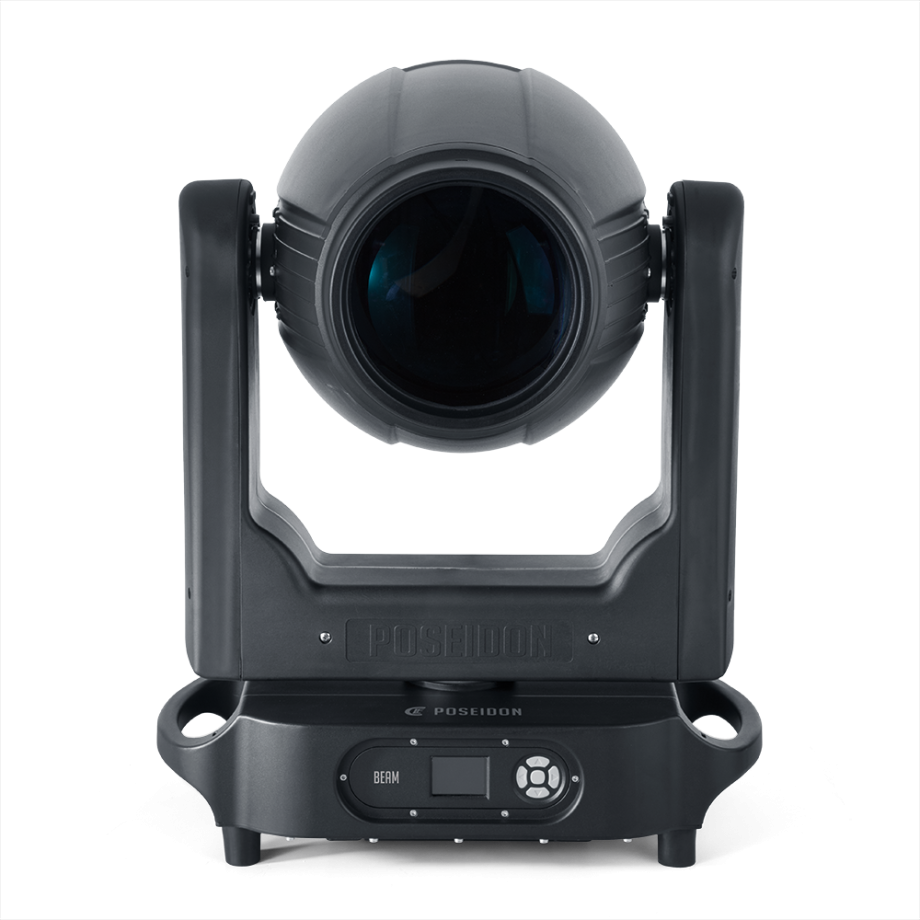

  • 190mm wide lens
  • 1.8° beam angle
  • Output @10m: 564000 lux


Description

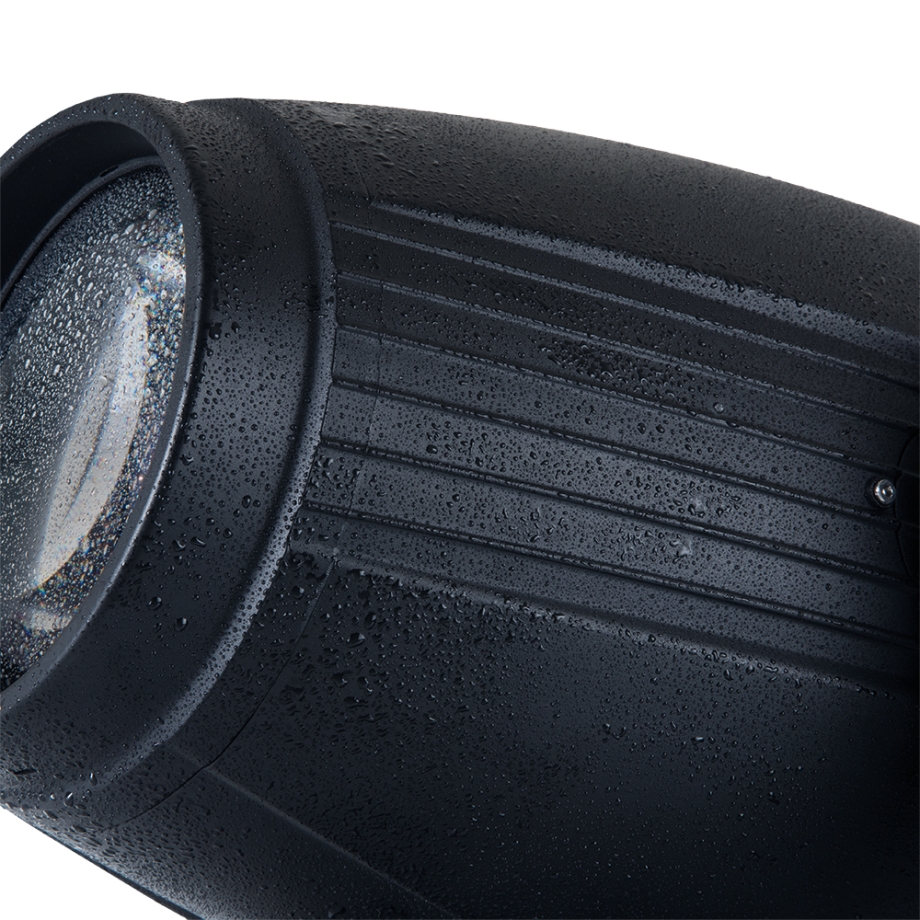

The CLF Poseidon Beam is member of the Poseidon IP65 rated family. It is the fastest and most powerful outdoor beam in its class. Protected against moisture and dirt, Poseidon Beam is a must-have fixture with a good value for money for any outdoor application requiring superior beam effects.

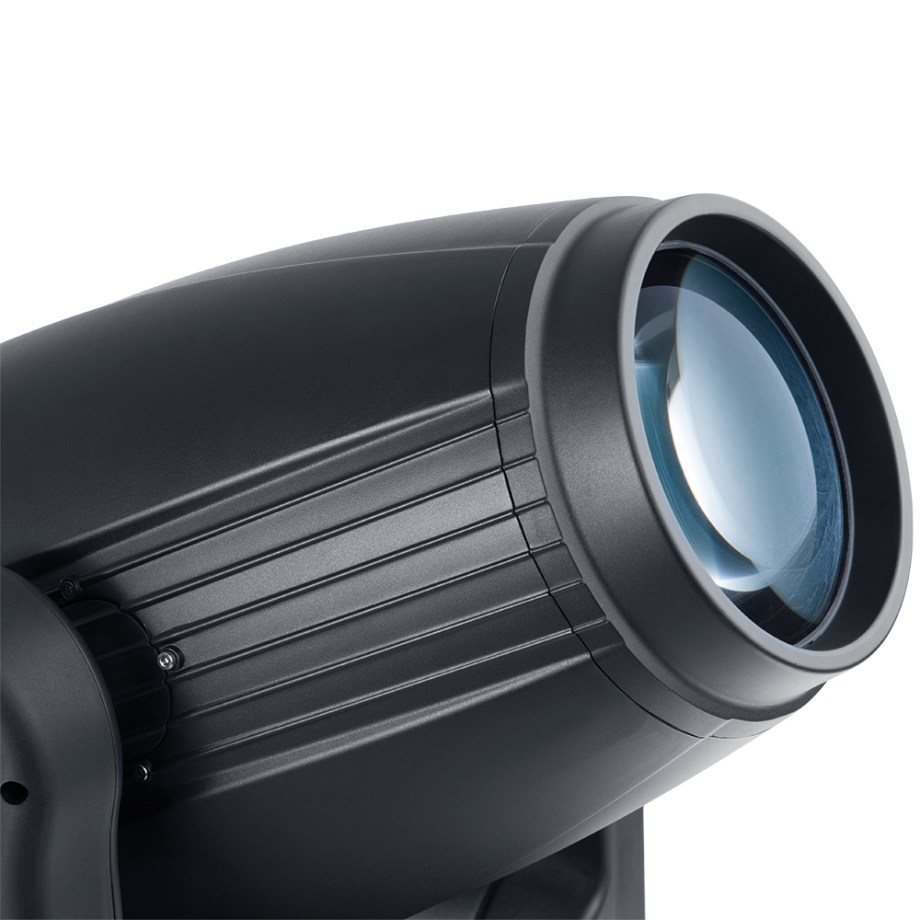

Elaborating on the successful CLF Aorun, Poseidon Beam comes with a fast and precise feature set, including CMY color mixing, double prism, gobo wheel, animation section and frost. The 190mm wide lens and unique optics allow big mid-air effects with a bright and punchy beam.

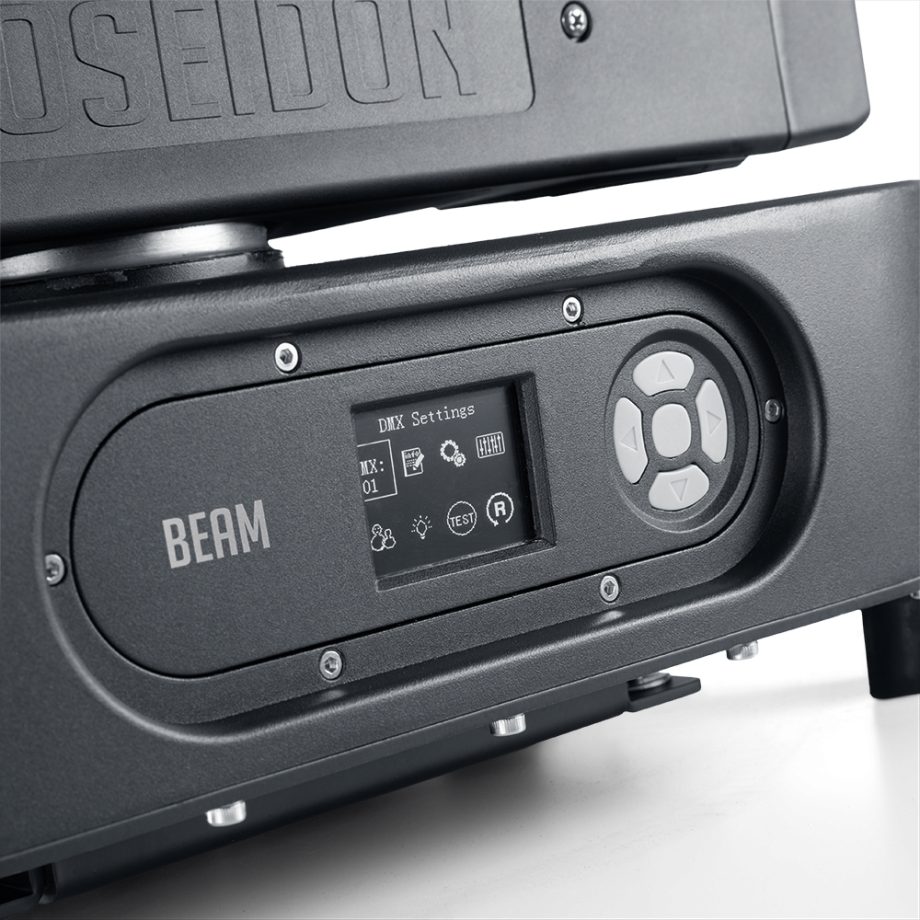

Equipped with a 400W long-life light source, the fixture is able to perform up to 6000 hours, which immensely increases its value. The elegantly shaped housing is equipped with special motors that enable unsurpassed fast and precise pan and tilt movements. Additionally, the sophisticated housing eliminates dust in the optical path and is easy to service. A bright LCD display provides easy access to on-board settings, even in sunny environments.

Power
Input voltage100 – 240VAC, 50 / 60Hz
Standby power82W
Total power consumption578W
Typical current2.83A
COS φ

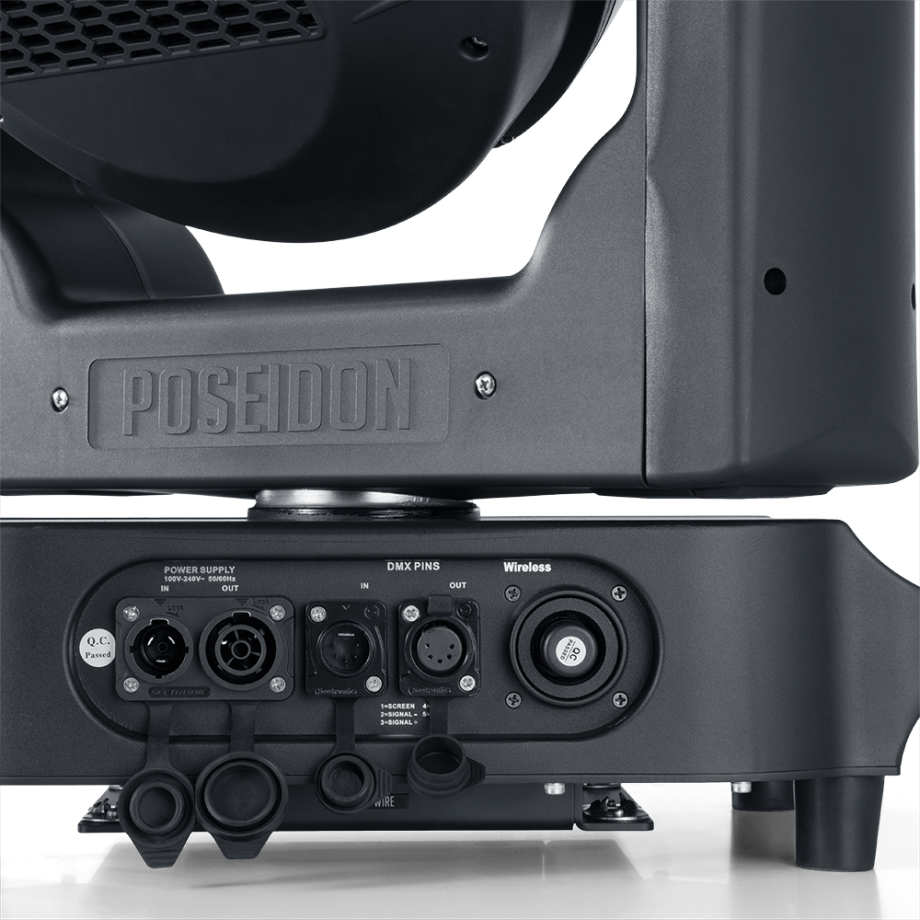

Power plug typeSeetronic Powercon TRUE1
Source
LampUshio 400W LL (CLF Poseidon Lamp Kit)
Lamp life expectancy6000 hours
Color temperature7300K
Optical
Beam angle1.8°
Photometric
Output @10M564000 lux
Output @50M25400 lux
Effects
ColorCMY
14 + open color wheel
Gobo14 + open fixed gobo wheel
Prism8-facet round, 16-facet round
Frost6° linear
Dimmer0-100%
Shutter12 hz/second, random
Pan540°
Tilt240°
FocusMotorized
Heat management

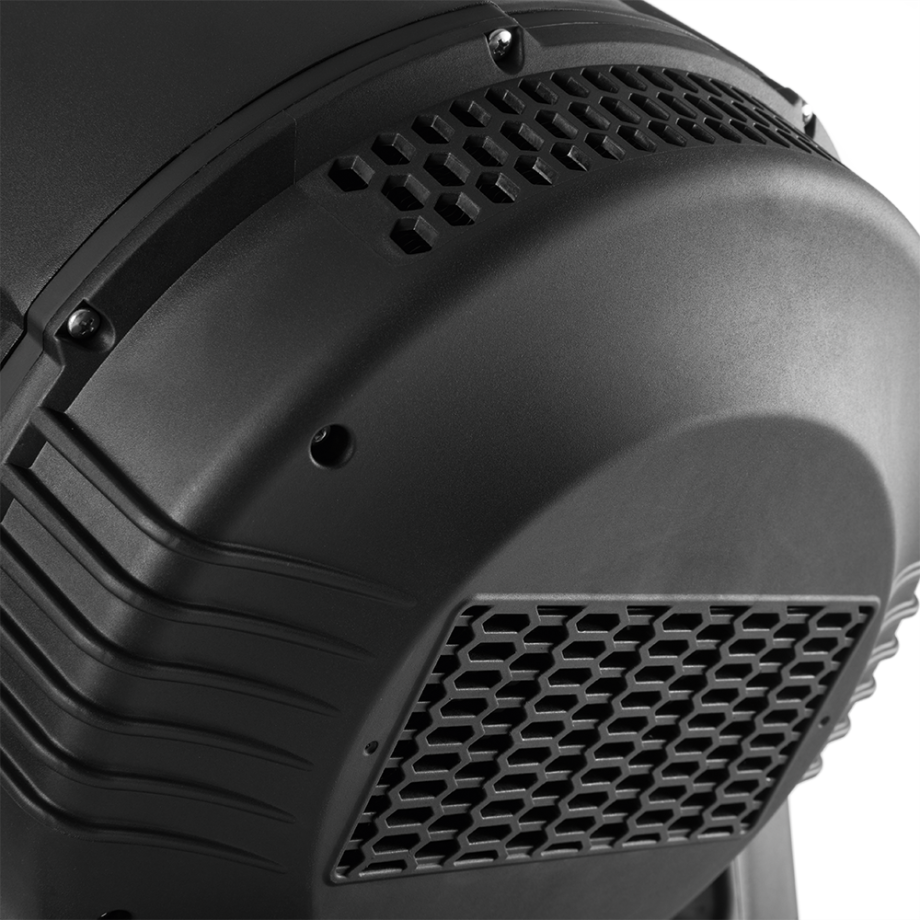

Cooling typeRegulated Fans
Max. ambient temp.Ta max=40°C
Min. ambient temp.Ta min=-20°C
Control
Control protocolUSITT DMX512/1990
DMX channels17
RDMYes
WDMXYes
DMX Input5-pin
sACNNo
Hardware
InterfaceLCD Display
Software uploadDMX, via upload tool
Installation
Mounting orientationAny
IP ratingIP65
Housing
Safety attachment pointYes
Position lockTilt
Physical
Net product weight35kg
Length488mm
Width312mm
Height726mm
Approvals
Approved certificationsCE and RoHS
Information
Article number160030
Related
Included itemsManual, Power cable, safety

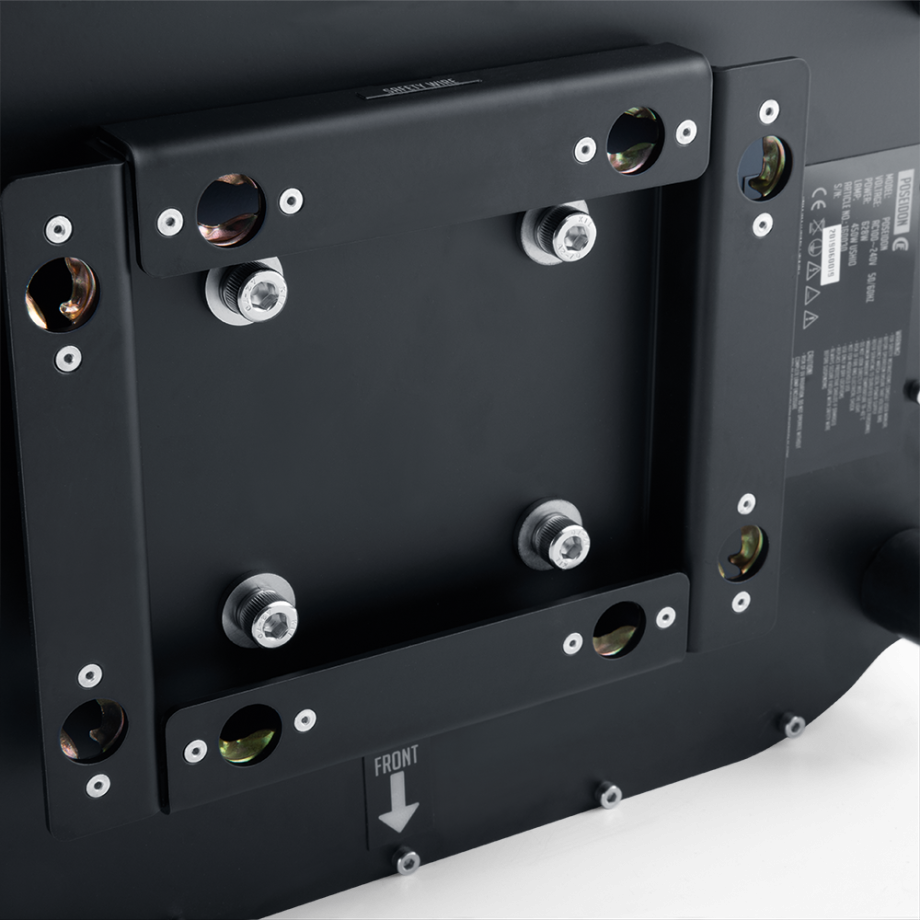

OptionalCLF Omega bracket
